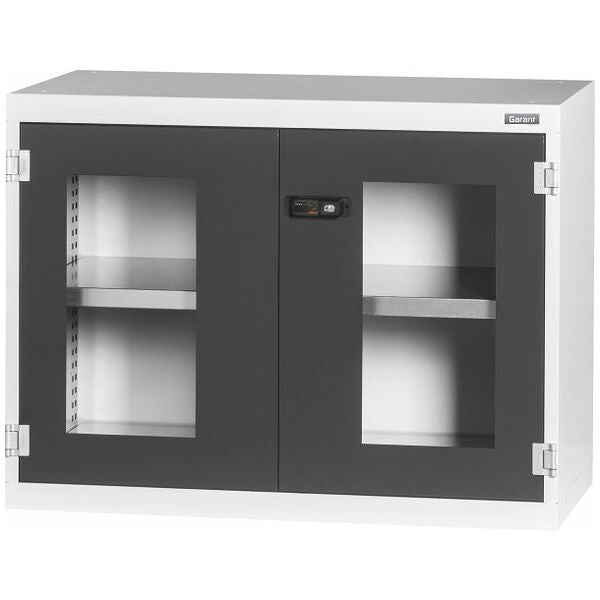

GARANT Base cabinet with Viewing window swing doors - 940083
GARANT Base cabinet with Viewing window swing doors - 940083
Article No.: 940083
Regular price
Rs. 88,231.99
Regular price
Sale price
Rs. 88,231.99
Unit price
per
Couldn't load pickup availability
- Shelf load capacity / maximum distributed shelf load (on metal): 100
- Cabinet housing internal load capacity: 1,000
- Door opening angle: 250
- Height adjustment interval: 25
- Cylinder lock: modular barrel
Product details
Technical Data
| Material thickness | 0.9 mm | |
| Shelf load capacity / maximum distributed shelf load (on metal) | 100 kg | |
| Cabinet housing internal load capacity | 1,000 kg | |
| Door opening angle | 250 degrees | |
| Height adjustment interval | 25 mm | |
| Cylinder lock | modular barrel | |
| Colour selection | RAL 9002, 7035, 7005, 7016, 6011, 5018, 5012, 5011, 5005, 3003 | |
| Height | 750 mm | |
| Width | 1,000 mm | |
| Depth | 500 mm | |
| Width in G | 40 | |
| Depth in G | 20 | |
| Usable height | 595 mm | |
| Number of shelves | 1 | |
| Type of cabinet | Base cabinet | |
| Cabinet fronts | Viewing window swing door | |
| Electronic locking system can be retrofitted | yes | |
| ComfortClose | no | |
| Handle positioning | top | |
| Weight | 45 kg | |
| Type of product | Cabinet with shelves |
Identification & Classification
| Article number | 940083 750 | |
| EAN / GTIN | 4062406068073 | |
| Manufacturer number | 940083 750 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
Equipped cabinet in 40×20G. Mountings for shelves at 25 mm intervals. Swing doors reinforced on the inside and can be locked by 2-component Haptoprene® slide handle with a cylinder lock. Levelling base for base cabinets, with 4 individually adjustable feet to compensate for unevenness in the floor. In the base cabinet the push handle is mounted in the upper part of the door; in the top-mounted cabinet it is in the lower part of the door.
Supplied with:
Cabinet with storage shelves.
Colour:
Body RAL 7035 light grey, powder-coated.
Doors RAL 7016 anthracite, powder coated.
Doors RAL 7016 anthracite, powder coated.
Note:
For storage shelves and accessories for GridLine cabinets see No. 940501 – 940710 and Group 95.
According to the TÜV GS certification, it is essential that all cabinets are secured against tipping over.
According to the TÜV GS certification, it is essential that all cabinets are secured against tipping over.
Warning:
Intended use
Reasonably foreseeable misuse
- Keep doors’ swing range unobstructed, keep doors and drawers closed.
- Drawers for storage of tools.
- Storage shelf for storage of workpieces and tools.
- For work in indoor industrial environments. For use on dry solid floors.
- It is essential the cabinet is secured against toppling.
- Use only when it is technically in good condition and safe to operate.
Reasonably foreseeable misuse
- Do not make any unauthorised modifications.
- Do not overload cabinet, drawers and storage shelf.
- Do not climb into or sit on cabinet, drawers or storage shelf.
- Do not place objects on cabinet shell that will extend beyond its edge.
- Do not place articles in the cabinet roughly.
- Do not store any flammable or chemical liquids.
- Do not store any foodstuffs.
- Do not use in explosion hazard areas.
