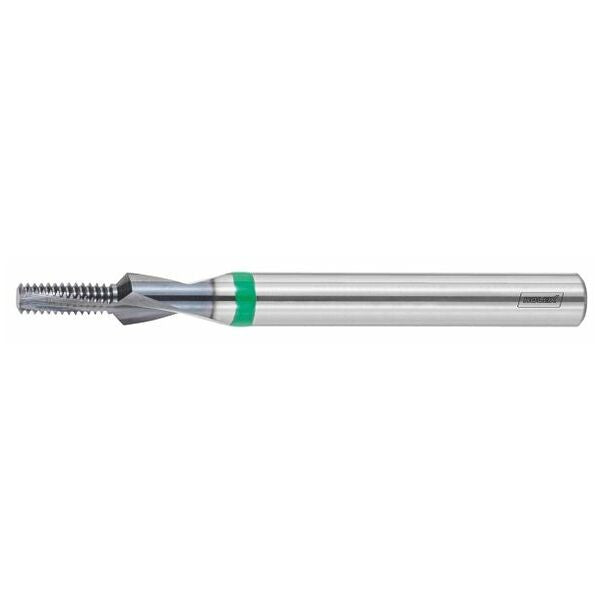

HOLEX Plain shank thread mill 2×D, TiAlN - 139651
HOLEX Plain shank thread mill 2×D, TiAlN - 139651
Article No.: 139651
Regular price
Rs. 14,900.10
Regular price
Sale price
Rs. 14,900.10
Unit price
per
Couldn't load pickup availability
Thread type: M; M-LH; EG-M; EG-M-LH Flank angle: 60 Tool material: Solid carbide Thread standard: DIN 13 Shank: DIN 6535 HA with h6
Product details
Technical Data
| Thread size | M3 | |
| Coating | TiAlN | |
| Thread type | M; M-LH; EG-M; EG-M-LH | |
| Flank angle | 60 degrees | |
| Tool material | Solid carbide | |
| Thread standard | DIN 13 | |
| Shank | DIN 6535 HA with h6 | |
| Thread pitch | 0.5 mm | |
| Nominal ⌀ DC | 2.4 mm | |
| Flute length Lc | 6.25 mm | |
| Shank length Ls | 28 mm | |
| Overall length L | 42 mm | |
| Shank ⌀ Ds | 4 mm | |
| Through-coolant | no | |
| No. of teeth Z | 2 | |
| Application for type of drilling | up to 2×D for blind holes; up to 2×D for through holes | |
| Feed fz in steel < 900 N/mm2 | 0.01 mm | |
| Thread profile | Full profile | |
| Number of clamping slots | 2 | |
| Colour ring | green | |
| Internal/external application | Internal | |
| Thread depth | 6.25 mm | |
| Type of product | thread milling cutter |
Identification & Classification
| Article number | 139651 M3 | |
| EAN / GTIN | 4045197773616 | |
| Manufacturer number | 139651 M3 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
