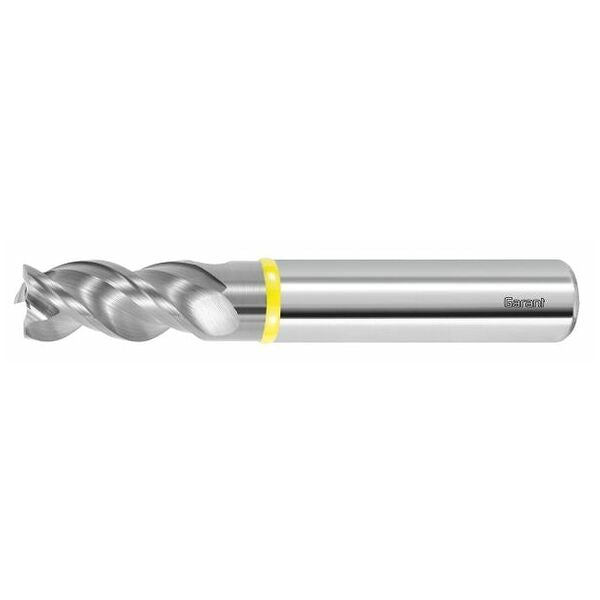

GARANT Master Alu PickPocket solid carbide roughing end mill HPC, uncoated - 202002
GARANT Master Alu PickPocket solid carbide roughing end mill HPC, uncoated - 202002
Article No.: 202002
Regular price
Rs. 5,408.32
Regular price
Sale price
Rs. 5,408.32
Unit price
per
Couldn't load pickup availability
Tool material: Solid carbide Standard: DIN 6527 Type: W Tolerance nominal ⌀: e8 No. of teeth Z: 3
Product details
Technical Data
| Series | Master Alu | |
| Cutting edge ⌀ DC | 1.8 mm | |
| Coating | uncoated | |
| Tool material | Solid carbide | |
| Standard | DIN 6527 | |
| Type | W | |
| Tolerance nominal ⌀ | e8 | |
| No. of teeth Z | 3 | |
| Helix angle | 42 degrees | |
| Helix angle characteristic | unequal spacing | |
| Spacing of the cutters | unequal spacing | |
| Direction of infeed | horizontal, oblique and vertical | |
| Cutting width ae for milling operation | Full slot cutting depth 1×D; Full slot cutting depth 1×D | |
| Shank | DIN 6535 HA to h6 | |
| Balance quality with shank | G 2.5 with HA | |
| Through-coolant | no | |
| Machining strategy | HPC | |
| Flute length Lc | 4 mm | |
| Overall length L | 57 mm | |
| Shank ⌀ Ds | 6 mm | |
| Corner chamfer angle | 90 degrees | |
| Feed fz for slot milling in short-chipping aluminium | 0.03 mm | |
| Feed fz for side milling in short-chipping aluminium | 0.04 mm | |
| Colour ring | yellow | |
| Type of product | End / face mill |
Identification & Classification
| Article number | 202002 1,8 | |
| EAN / GTIN | 4062406127534 | |
| Manufacturer number | 202002 1,8 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
