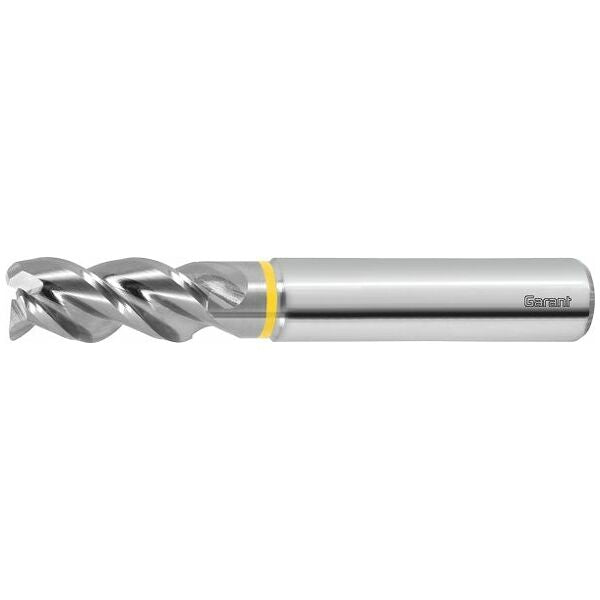

GARANT Solid carbide milling cutter MTC, uncoated - 202244
GARANT Solid carbide milling cutter MTC, uncoated - 202244
Article No.: 202244
Regular price
Rs. 4,905.46
Regular price
Sale price
Rs. 4,905.46
Unit price
per
Couldn't load pickup availability
Tool material: Solid carbide Standard: DIN 6527 Type: W Tolerance nominal ⌀: e8 No. of teeth Z: 3
Product details
Technical Data
| Cutting edge ⌀ DC | 1 mm | |
| Coating | uncoated | |
| Tool material | Solid carbide | |
| Standard | DIN 6527 | |
| Type | W | |
| Tolerance nominal ⌀ | e8 | |
| No. of teeth Z | 3 | |
| Helix angle | 45 degrees | |
| Helix angle characteristic | unequal spacing | |
| Direction of infeed | horizontal, oblique and vertical | |
| Cutting width ae for milling operation | Full slot cutting depth 1×D; 0.5×D for side milling | |
| Shank | DIN 6535 HA to h6 | |
| Balance quality with shank | G 2.5 with HA | |
| Through-coolant | no | |
| Machining strategy | MTC | |
| Flute length Lc | 2.5 mm | |
| Overhang length L1 incl. recess | 5 mm | |
| Recess ⌀ D1 | 0.95 mm | |
| Overall length L | 57 mm | |
| Shank ⌀ Ds | 6 mm | |
| Shank form | HA | |
| Corner chamfer angle | 90 degrees | |
| Feed fz for slot milling in short-chipping aluminium | 0.005 mm | |
| Feed fz for side milling in short-chipping aluminium | 0.008 mm | |
| Colour ring | yellow | |
| Type of product | End / face mill |
Identification & Classification
| Article number | 202244 1 | |
| EAN / GTIN | 4045197858061 | |
| Manufacturer number | 202244 1 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
