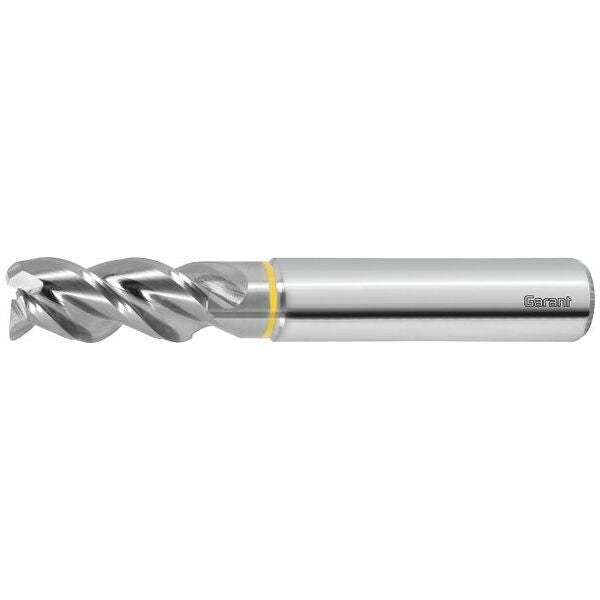

GARANT Solid carbide milling cutter with internal coolant supply MTC, uncoated - 202249
GARANT Solid carbide milling cutter with internal coolant supply MTC, uncoated - 202249
Article No.: 202249
Regular price
Rs. 5,236.91
Regular price
Sale price
Rs. 5,236.91
Unit price
per
Couldn't load pickup availability
Tool material: Solid carbide Standard: DIN 6527 Type: W Tolerance nominal ⌀: h6 No. of teeth Z: 3
Product details
Technical Data
| Cutting edge ⌀ DC | 6 mm | |
| Coating | uncoated | |
| Tool material | Solid carbide | |
| Standard | DIN 6527 | |
| Type | W | |
| Tolerance nominal ⌀ | h6 | |
| No. of teeth Z | 3 | |
| Helix angle | 45 degrees | |
| Helix angle characteristic | unequal spacing | |
| Direction of infeed | horizontal, oblique and vertical | |
| Cutting width ae for milling operation | Full slot cutting depth 1×D; 0.5×D for side milling | |
| Shank | DIN 6535 HA to h6 | |
| Balance quality with shank | G 2.5 with HA | |
| Through-coolant | yes | |
| Machining strategy | MTC | |
| Flute length Lc | 13 mm | |
| Overhang length L1 incl. recess | 19 mm | |
| Recess ⌀ D1 | 5.7 mm | |
| Overall length L | 57 mm | |
| Shank ⌀ Ds | 6 mm | |
| Shank form | HA | |
| Corner chamfer width at 45° | 0.2 mm | |
| Corner chamfer angle | 45 degrees | |
| Feed fz for slot milling in short-chipping aluminium | 0.025 mm | |
| Feed fz for side milling in short-chipping aluminium | 0.03 mm | |
| Colour ring | yellow | |
| Type of product | End / face mill |
Identification & Classification
| Article number | 202249 6 | |
| EAN / GTIN | 4045197657312 | |
| Manufacturer number | 202249 6 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
