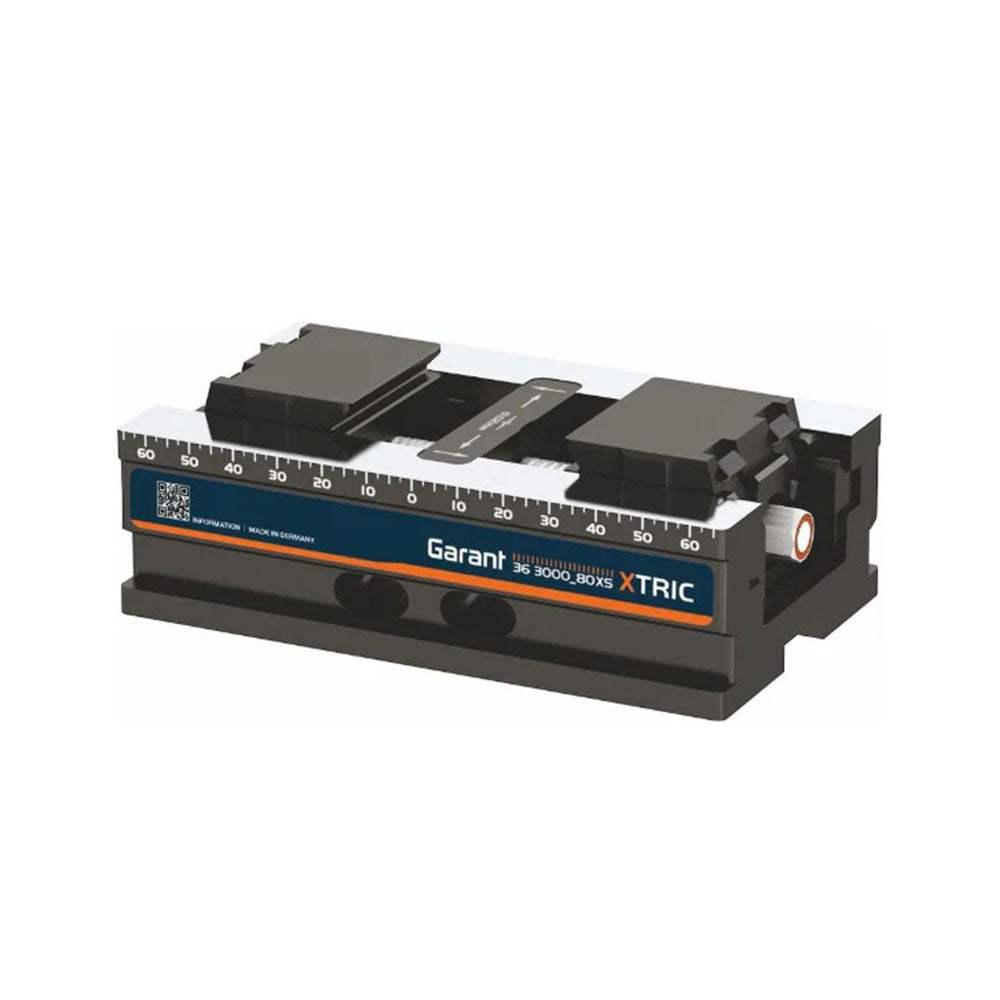

Centring vice basic device Xtric
Centring vice basic device Xtric
Article No.: 363000 50XSE
Regular price
Rs. 108,808.41
Regular price
Sale price
Rs. 108,808.41
Unit price
per
Couldn't load pickup availability
- 26 pieces available in 11-14 working days
Product details
Technical Data
| Series | Xtric | |
| Clamping force up to maximum | 25 kN | |
| Weight | 2.7 kg | |

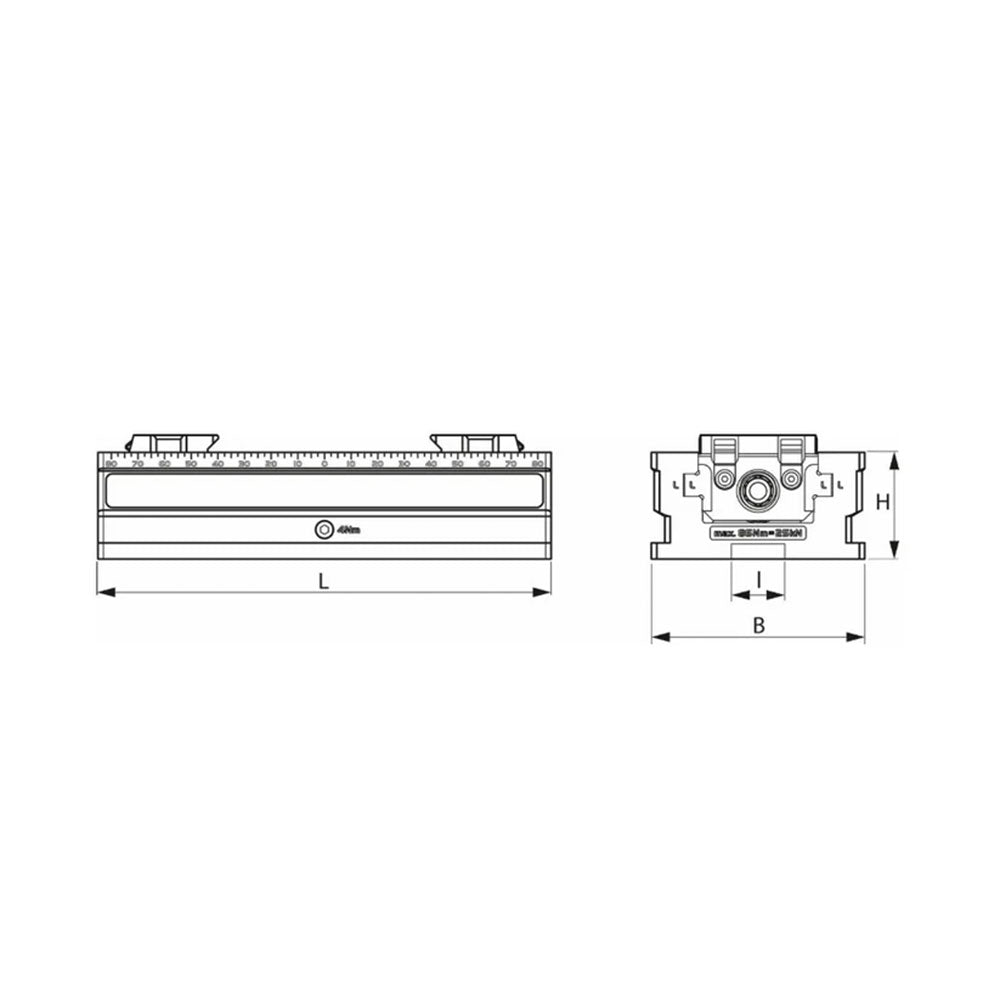

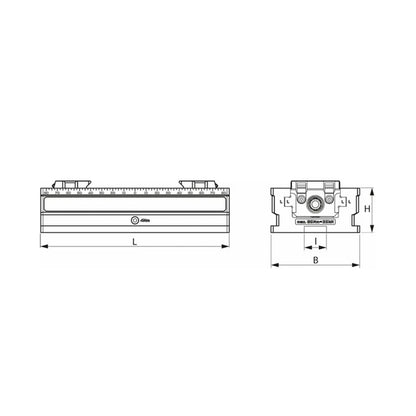

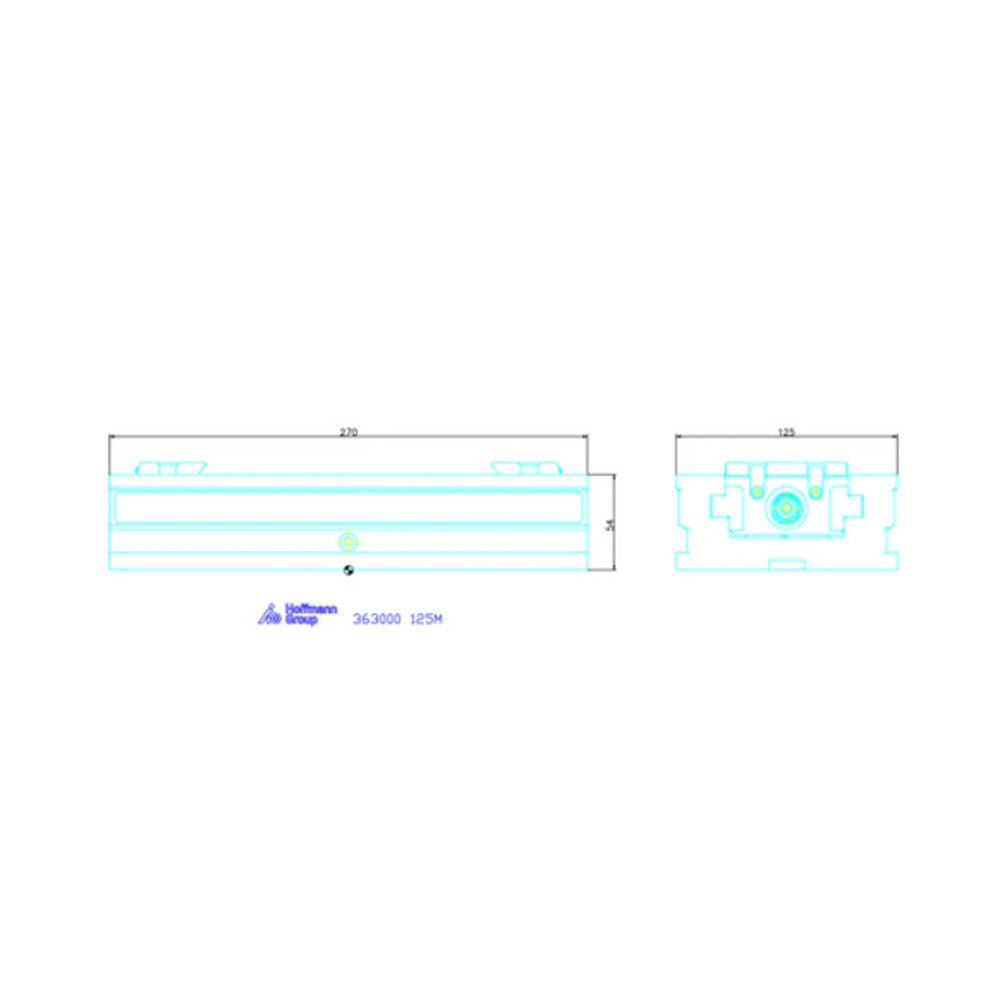

| L | 136 mm | |
| B | 80 mm | |
| Height H | 40 mm | |
| Clamping range S1 | 0 mm - 42 mm | |
| Clamping range S2 | 74 mm - 110 mm | |
| Longitudinal slot | 20 mm | |
| maximum torque | 85 Nm | |
| Width across flats | 10 mm; 5 mm | |
| Pitch underside | 52 mm | |
| Colour code for suitable accessories | Xtric 80 | |
| Type of product | Machine vice |
Identification & Classification
| Article number | 363000 80XS | |
| EAN / GTIN | 4062406229931 | |
| Manufacturer number | 363000 80XS | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:

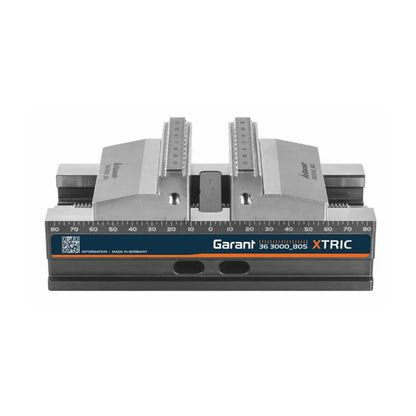

- Very good accessibility and perfectly symmetrical.
- Fully hardened and precision milled on the underside.
- Clamps raw materials and finished parts with the least possible backstroke of the jaws / component.

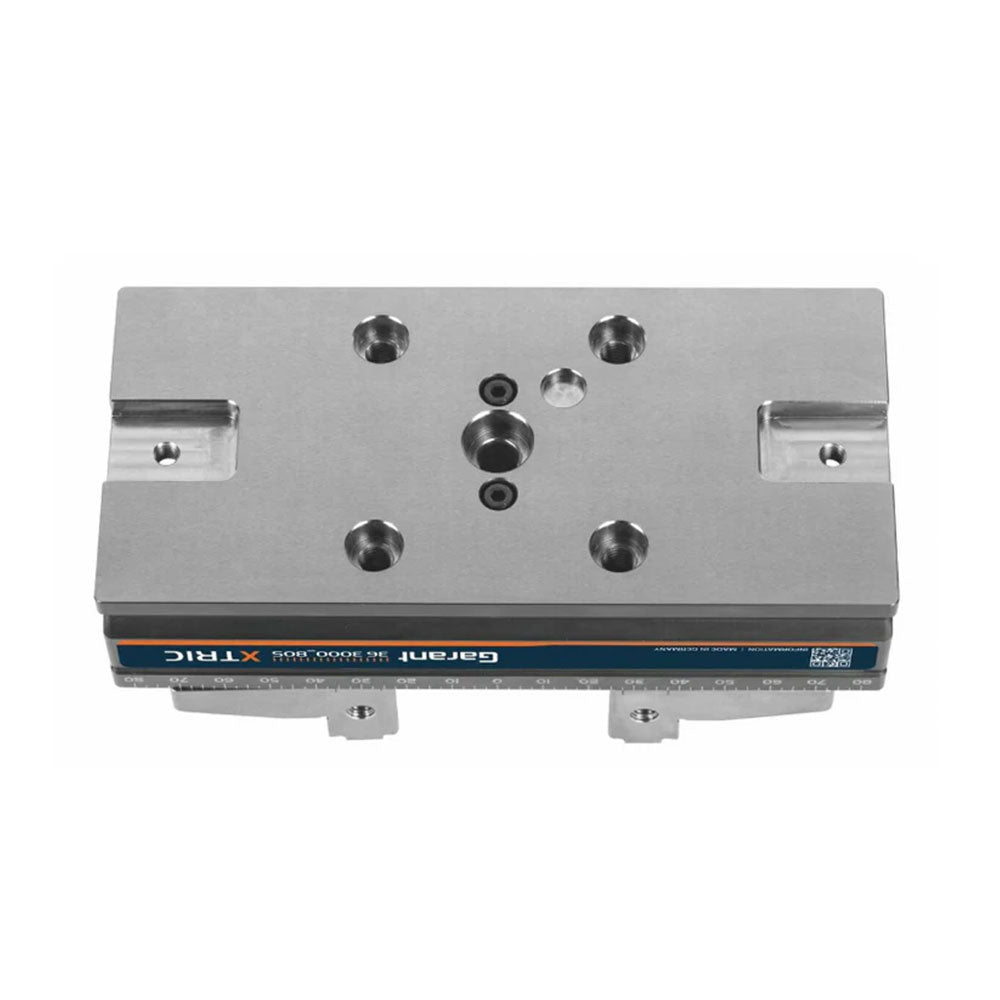

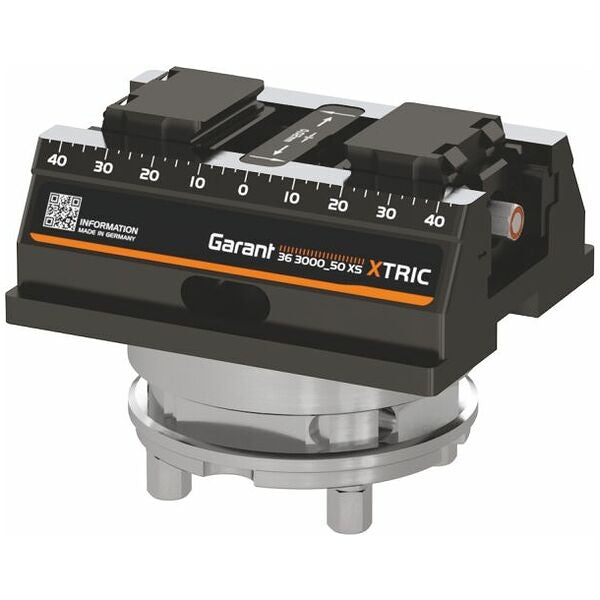

- Supplied with holes for LONG positioning system, can be adapted to GARANT ZeroClamp and Erowa ITS148 (size 50 and 80) using an intermediate plate.

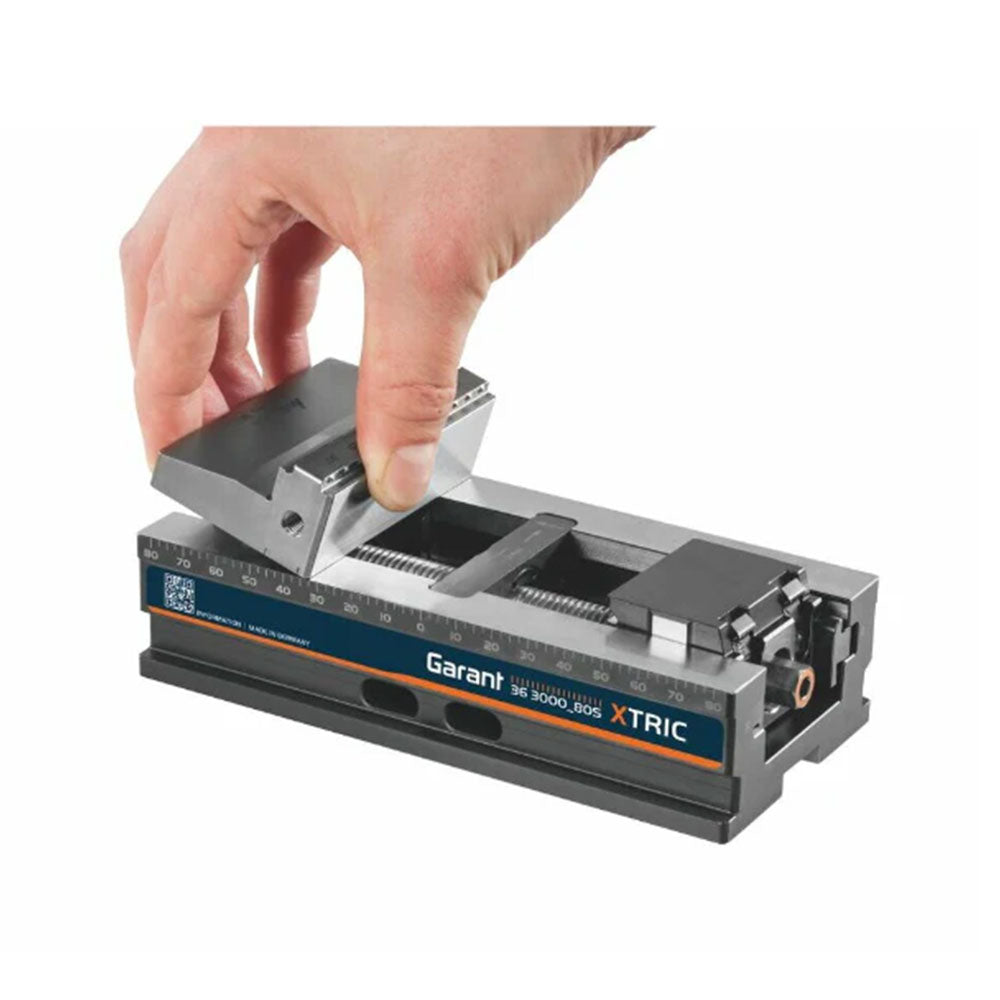

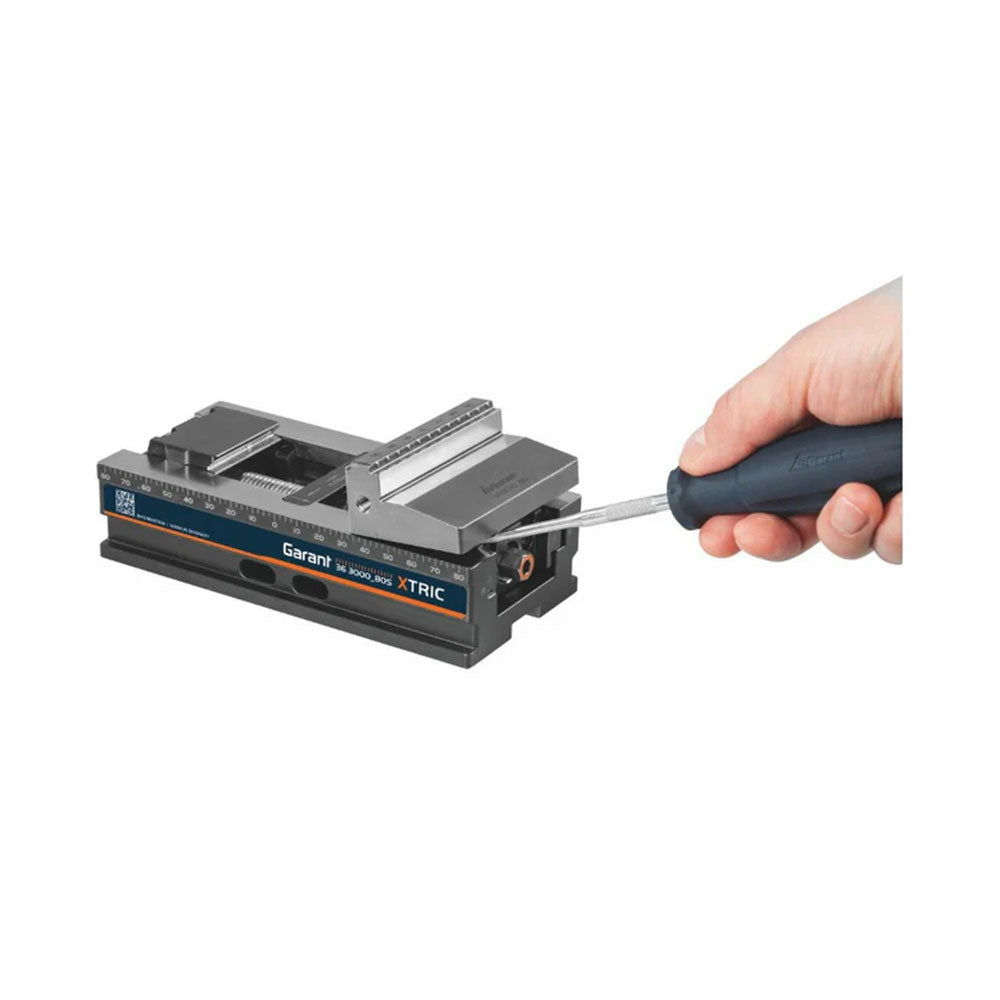

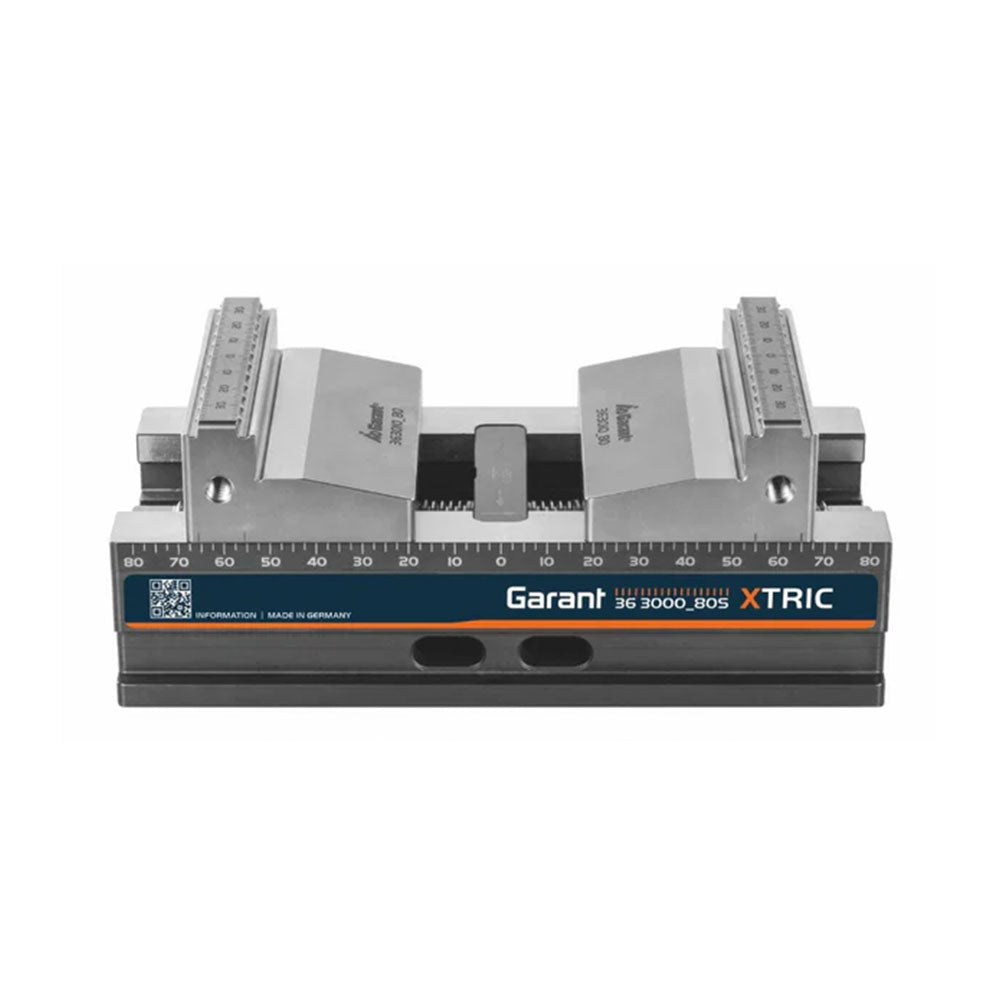

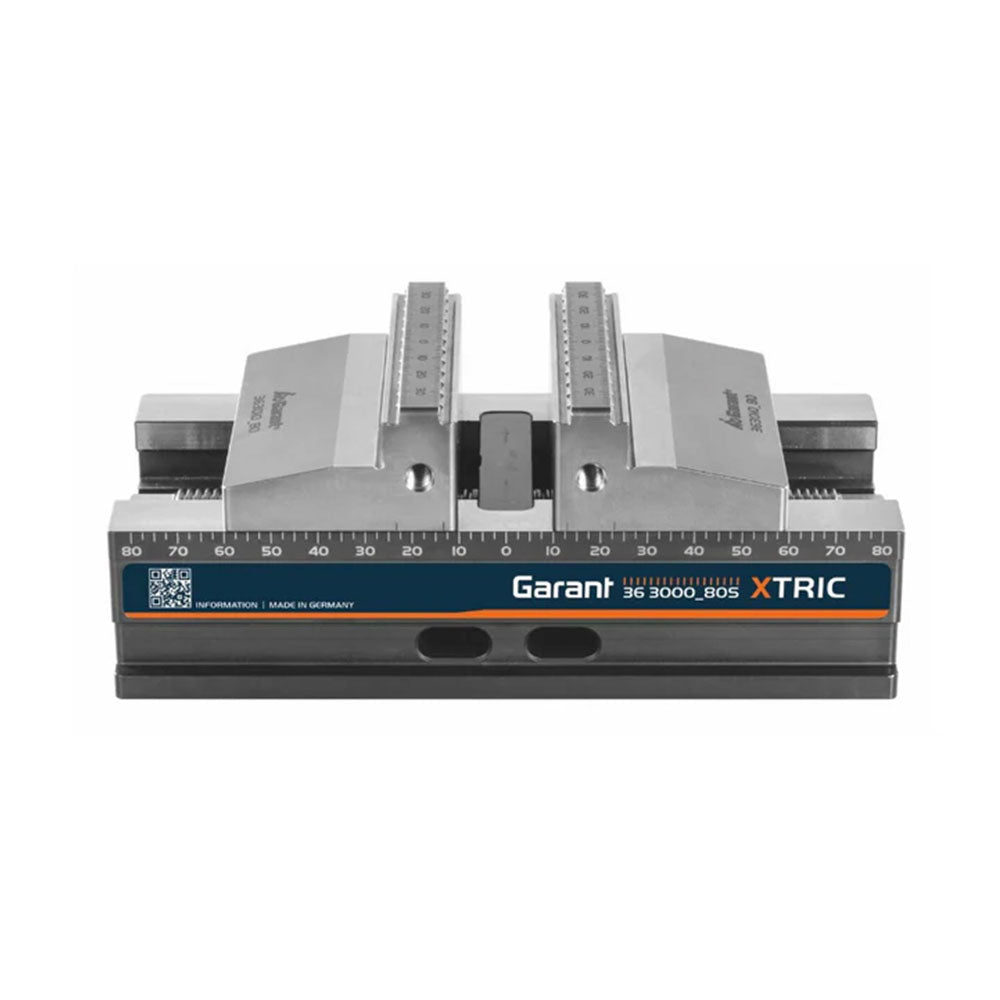

- Jaws can be changed without using tools. The clamping range can be changed by reversing the jaws.
- Interface for automated applications.

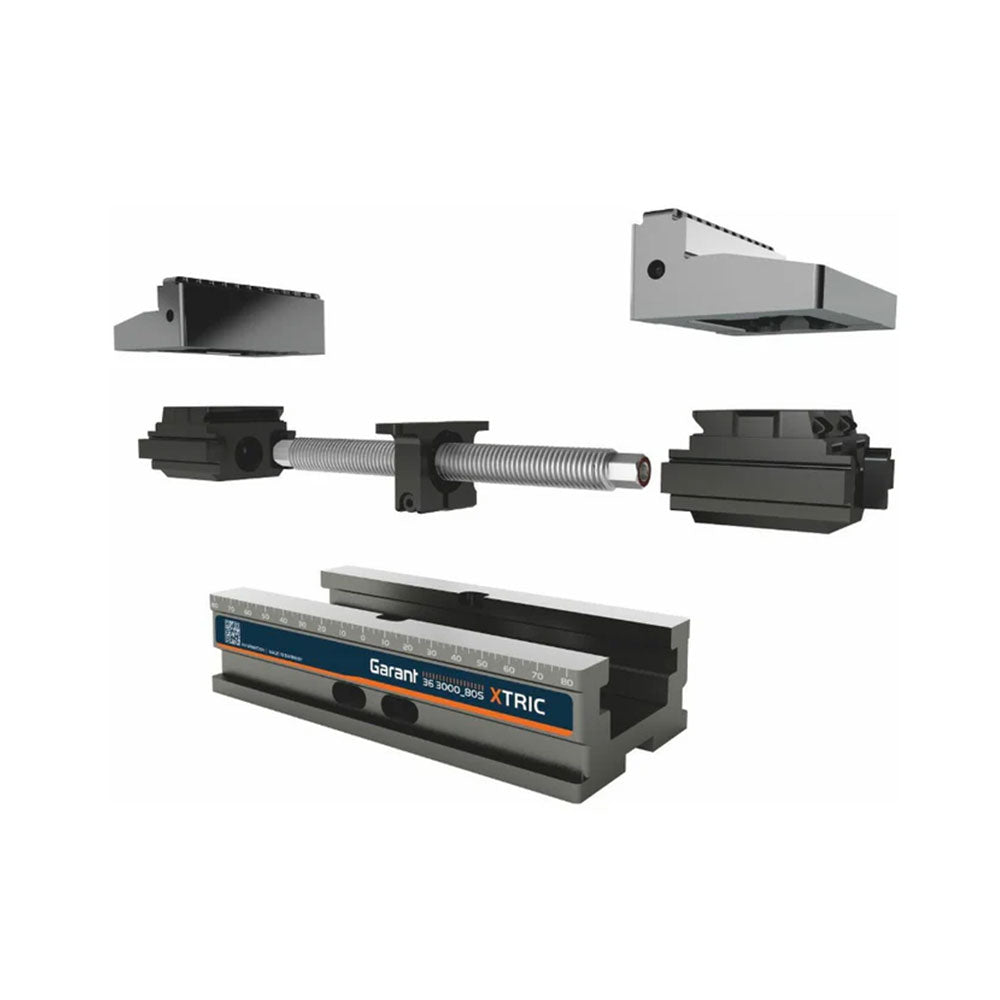

- Easy-to-use, chuck jaw quick-change system, no tools required.
- Clamping force up to 25 kN at 90 Nm torque.
- Quick to use and intuitive in operation.

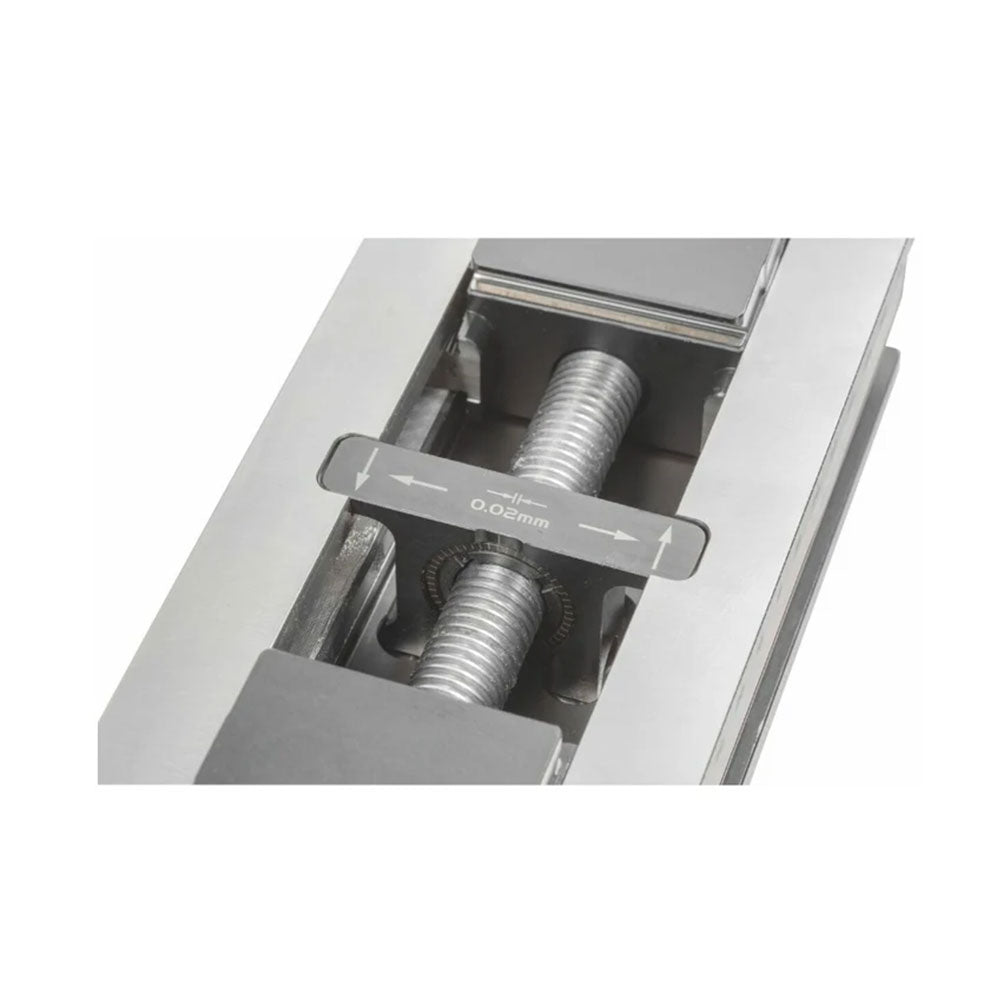

- Repetition accuracy <0.01 mm.
- Scaling for pre-positioning the clamping modules.
- Spindle nut with or without pivot function.
- Clamping lip for steplessly adjustable clamps.
- Centring adjustment with pin wrench.
Application:
Perfect for 5-face machining. Centred clamping.
Suitable for:
Supplied with:
Optional extras:
Hexagon screwdriver No. 627424 size 5, pin spanner No. 628600 size 2, torque wrench No. 656050, socket No. 642229, stepless adjustable clamps No. 363081 80 and 361165 CS1, GARANT clamping stud No. 363190, adapter plates No. 363079, 363080, 363085. Height extension base No. 363090 (in conjunction with No. 363079). Assembly station No. 358595 52/96.
Note:
Suitable top jaws No. 363010 – 363045 are not included in the scope of supply. Clamping situation S2 arises by reversing the jaws. Use offset top jaws to overcome the clamping gaps with types XS and XSP and H.
Warning:
Intended use
Reasonably foreseeable misuse
Intended use
Reasonably foreseeable misuse
- Clamping device for mounting on a machine intended to perform milling operations.
- For clamping workpieces in the blank or partially machined state.
- Clamping different workpieces by different versions and top jaws.
- Use only when correctly assembled and with safety devices and guards on the machine fully operational.
Reasonably foreseeable misuse
- Do not use the centring vice for turning work.
- Do not mount components not in accordance with the specification.
- Do not make any unauthorised modifications.
- Do not use in explosion hazard areas.
Intended use
- Clamping device for mounting on a machine intended to perform milling operations.
- For clamping workpieces in the blank or partially machined state.
- Use only when correctly assembled and with safety devices and guards on the machine fully operational.
- Adaptation to workpiece geometry is possible through various designs and attachment jaws.
Reasonably foreseeable misuse
- Do not use the centring vice for turning work.
- Do not clamp the centring vice at the clamping edge.
- Do not mount components not in accordance with the specification.
- Do not make any unauthorised modifications.
- Do not use in explosion hazard areas.
