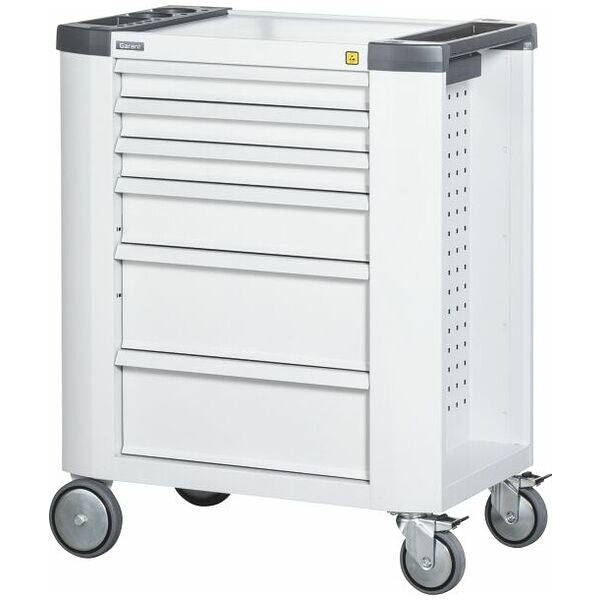

GARANT ESD roller cabinet, 20×16G - 971750
GARANT ESD roller cabinet, 20×16G - 971750
Article No.: 971750
Regular price
Rs. 169,069.80
Regular price
Sale price
Rs. 169,069.80
Unit price
per
Couldn't load pickup availability
- Drawer/pull-out shelf load capacity: 40
- Drawer runner extension (partial/full extension): 100
- Drawer runner extension: Anti-tilt lock
- Individual drawer release system: One-hand
- Hoffmann perforated panel grid interval: 9×9
Product details
Technical Data
| Drawer/pull-out shelf load capacity | 40 kg | |
| Drawer runner extension (partial/full extension) | 100 % | |
| Drawer runner extension | Anti-tilt lock | |
| Individual drawer release system | One-hand | |
| Hoffmann perforated panel grid interval | 9×9 mm | |
| Drawer usable width × usable depth in G | 20×16G | |
| Drawer usable area in G | 20×16 | |
| Cylinder lock | modular barrel | |
| electrostatic characteristic | EGB/ESD | |
| Height | 1,000 mm | |
| Width | 800 mm | |
| Depth | 500 mm | |
| Drawer front height | 75 mm; 75 mm; 75 mm; 125 mm; 200 mm; 200 mm | |
| Drawer usable width | 500 mm | |
| Drawer usable depth | 400 mm | |
| Drawer usable width in G | 20 | |
| Drawer usable depth in G | 16 | |
| Number of drawers | 6 | |
| Weight | 71 kg | |
| Type of product | Roller cabinet |
Identification & Classification
| Article number | 971750 6 | |
| EAN / GTIN | 4062406783846 | |
| Manufacturer number | 971750 6 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
Roller cabinet, ESD conductive, to DIN EN 61340-5-1. Shelf of powder-coated, conductive sheet metal, and additional conductive shelf with compartments for small parts and can holder of polyamide, scratch-resistant and does not damage surfaces. Electrically conductive wheels each with 2 ball-bearing fixed wheels and 2 castors, with treadless tyres, minimum rolling resistance, low noise and fibre shields. Castors with brakes for the wheels and the castor heads. An anti-tilt device prevents more than one drawer being opened at the same time.
Centrally lockable with a cylinder lock.
Centrally lockable with a cylinder lock.
Application:
Suitable for use in EPAs with a conductive floor covering. The grounding is provided via the wheels; a separate grounding connection is not necessary. All plastic parts are conductive to prevent surface charging.
Standard:
DIN EN 61340-5-1.
Colour:
Light grey similar to RAL 7035 ESD powder-coated.
Warning:
Intended use
Reasonably foreseeable misuse
- For mobile work on site.
- For both industrial and private use.
- Drawers for storage of tools.
- Pull-out shelves for storage of L-BOXX (Art. No.
- 914574, 914575).
- Storage shelf for storage of workpieces and tools.
- Use exclusively approved Hoffmann Group accessories for modification or rebuilding.
- Mount the (optional) vice only on the bamboo worktop.
- Comply with the installation instructions for the vice.
- Install a maximum of one inner drawer in the ToolTruck cabinet compartment (Art. No.
- 914560, 914564, 914568).
Reasonably foreseeable misuse
- Do not stand or sit on the roller cabinet or mobile workbench.
- Do not carry people.
- Do not make any unauthorised changes or modifications to it.
- Do not subject the roller cabinet or mobile workbench to impacts.
