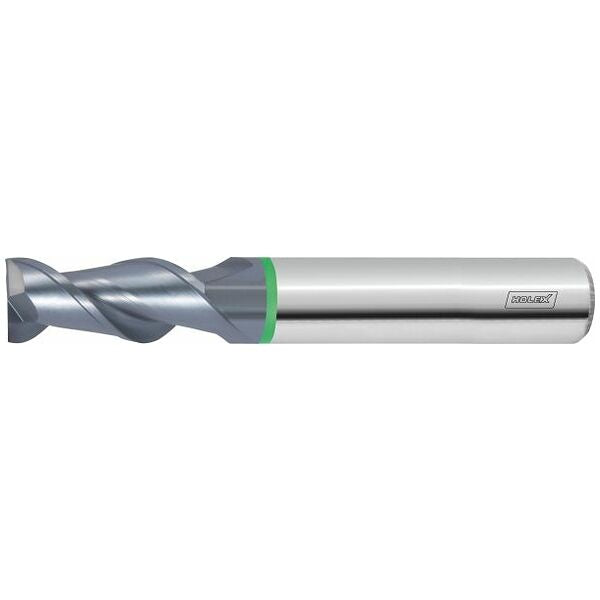

HOLEX Solid carbide slot drill, TiAlN - 201650
HOLEX Solid carbide slot drill, TiAlN - 201650
Article No.: 201650
Regular price
Rs. 2,133.59
Regular price
Sale price
Rs. 2,133.59
Unit price
per
Couldn't load pickup availability
Tool material: Solid carbide Standard: DIN 6527 Type: N Tolerance nominal ⌀: h10 No. of teeth Z: 2
Product details
Technical Data
| Cutting edge ⌀ DC | 3 mm | |
| Coating | TiAlN | |
| Tool material | Solid carbide | |
| Standard | DIN 6527 | |
| Type | N | |
| Tolerance nominal ⌀ | h10 | |
| No. of teeth Z | 2 | |
| Helix angle | 45 degrees | |
| Direction of infeed | horizontal, oblique and vertical | |
| Cutting width ae for milling operation | Full slot cutting depth 1×D; 0.5×D for side milling | |
| Shank | DIN 6535 HA to h6 | |
| Through-coolant | no | |
| Flute length Lc | 8 mm | |
| Overall length L | 57 mm | |
| Shank ⌀ Ds | 6 mm | |
| Corner chamfer width at 45° | 0.1 mm | |
| Corner chamfer angle | 45 degrees | |
| Feed fz for slot milling in steel < 750 N/mm2 | 0.01 mm | |
| Feed fz for side milling in steel < 750 N/mm2 | 0.011 mm | |
| Colour ring | green | |
| Type of product | End / face mill |
Identification & Classification
| Article number | 201650 3 | |
| EAN / GTIN | 4045197113566 | |
| Manufacturer number | 201650 3 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
