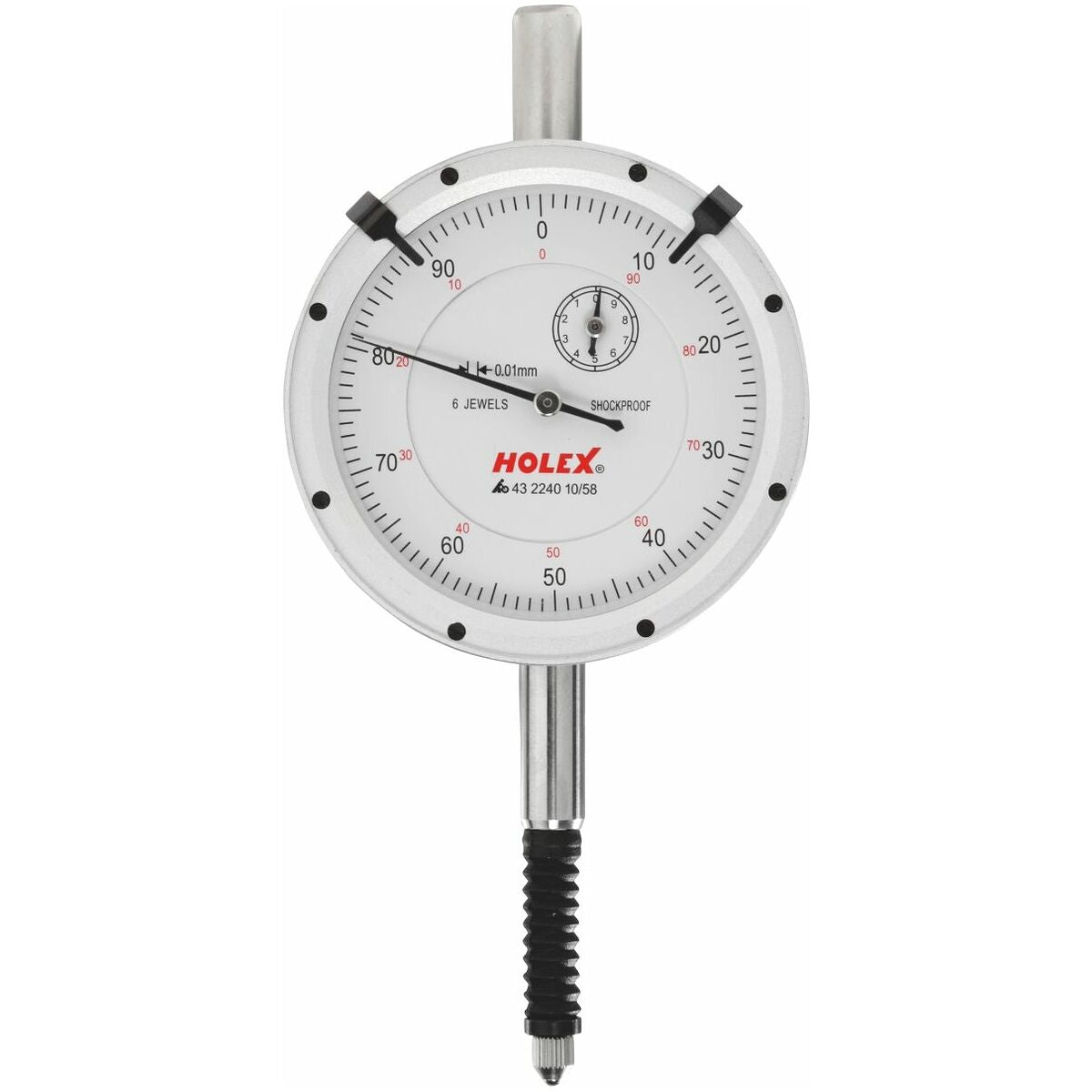

Dial indicator IP54, shock-resistant, Measuring range / Body ⌀: 10/58mm
Dial indicator IP54, shock-resistant, Measuring range / Body ⌀: 10/58mm
Article No.: 432240 10/58
Regular price
Rs. 3,546.21
Regular price
Rs. 9,271.13
Sale price
Rs. 3,546.21
Unit price
per
- Standard: DIN 878
- IP Index of Protection: IP 54
- Packaging: sturdy box
Product details
Technical Data
| Standard | DIN 878 | |
| Measuring range | 10 mm | |
| Graduation | 0.01 mm | |
| Reading per pointer revolution | 1 mm | |
| Measurement variation MPE (measurement range) | 15 µm | |
| IP Index of Protection | IP 54 | |
| Gauging force | 0.7 N - 1.6 N | |
| Clamping shank ⌀ h6 | 8 mm | |
| Measurement technology | analogue | |
| Body ⌀ | 58 mm | |
| Packaging | sturdy box | |
| Type of product | dial gauge |
Identification & Classification
| Article number | 432240 10/58 | |
| EAN / GTIN | 4045197711410 | |
| Manufacturer number | 432240 10/58 | |
| Manufacturer | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
Dial indicators with protection against splashed water, oil and dirt. Contact point on plunger spindle sealed by rubber bellows, sealed by protective sleeve at the top. Back wall sealed, glass and outer ring tightly screwed. Clamping shank ⌀ 8 mm h6.
Function:
IP54: Protected against splashed water from all directions and protected against penetration of dust into the inside (protected against dust), also completely protected against touching.
