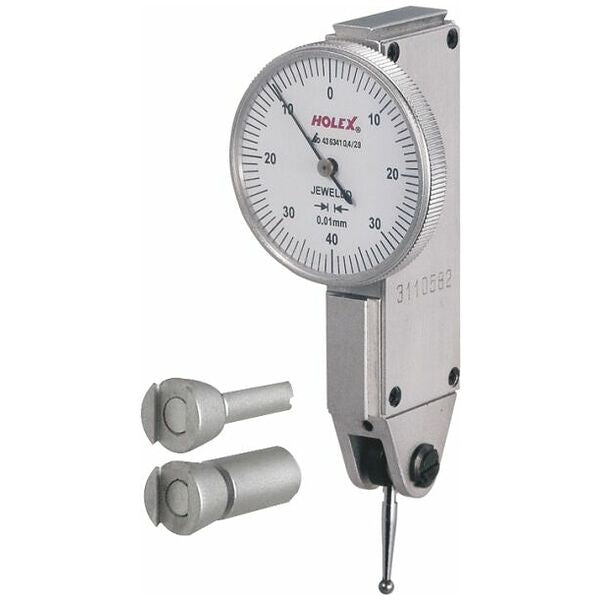

HOLEX Lever dial indicator contact point length 13.5 mm, Measuring range per direction / Body ⌀: 0,4/29mm - 436341

High-precision lever dial indicator with jewel-mounted mechanism, in handy, robust design. Housing and dovetail block are of one piece, which means that mounting is particularly rigid. Corrosion protection due to matt chrome-plated housing.
With 1/100 reading.
HOLEX − Economy version with carbide measurement ball.

As an accurate dial bore gauge for testing variations from nominal size, testing concentricity, internal measurements, testing of parallelism, and flatness as well as for aligning components.

Clamping spigot ⌀ 8 mm.
Additional clamping spigot ⌀ 4 mm.

Square holder No. 436510, centring holder No. 436512, articulated holder No. 359680.

Spare contact point with carbide or ruby ball available on request.

Additional information DIN 2270: Graduations 0.01 − deviation range 10 µm, total deviation range 13 µm, hysteresis error 3 µm.
