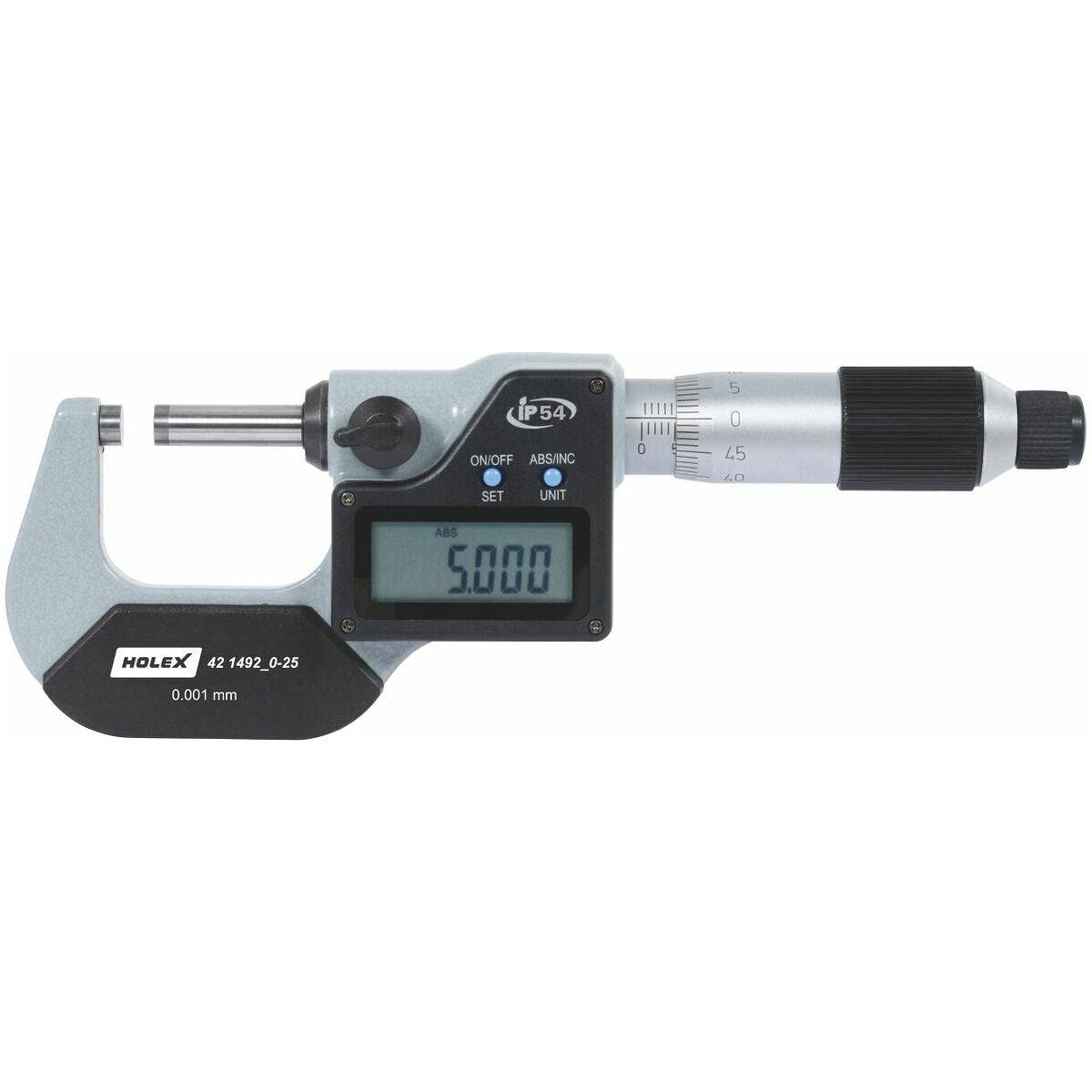

Digital external micrometer, Measuring range: 0-25mm
Digital external micrometer, Measuring range: 0-25mm
Article No.: 421492 0-25
Regular price
Rs. 6,449.82
Regular price
Rs. 16,862.28
Sale price
Rs. 6,449.82
Unit price
per
- Standard: ISO 3611
- IP Index of Protection: IP 54
- Packaging: sturdy box
Product details
Technical Data
| Standard | ISO 3611 | |
| Measuring range | 0 mm - 25 mm | |
| Scale divisions | 0.001 mm | |
| Measurement deviation E MPE | ±2 µm | |
| Spindle ⌀ | 6.5 mm | |
| Spindle pitch | 0.5 mm | |
| IP Index of Protection | IP 54 | |
| Measurement technology | digital | |
| Packaging | sturdy box | |
| Power supply | Battery-powered | |
| Number of batteries contained | 1 | |
| Battery type | Button cell | |
| Article no of the battery / rechargeable battery fitted | 081560 CR2032 | |
| Type of product | External tube micrometer |
Identification & Classification
| Article number | 421492 0-25 | |
| EAN / GTIN | 4062406051488 | |
| Manufacturer number | 421492 0-25 | |
| Manufacturer | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
Easy-to-read display. Carbide-tipped measuring faces.
Digital and analogue graduations. Dust-proof and splash-proof metal casing.
Digital and analogue graduations. Dust-proof and splash-proof metal casing.
Function:
IP54: Protected against splashed water from all directions and protected against penetration of dust into the inside (protected against dust), also completely protected against touching.
Supplied with:
Warning:
Intended use
Reasonably foreseeable misuse
- Outside micrometer for digital and analogue readings.
- For both industrial and private use.
- Use it only in accordance with the technical data.
- Use only when it is technically in good condition and safe to operate.
Reasonably foreseeable misuse
- Avoid vibration, reverse movement, shaking, impacts.
- Do not use in explosion hazard areas.
- Do not expose to strong magnetic fields or high-voltage environments.
- Do not expose the work lamp to intense heat, direct sunlight or naked flames.
- Only open the housing on the battery cover for battery replacement.
- Do not make any unauthorised modifications.
