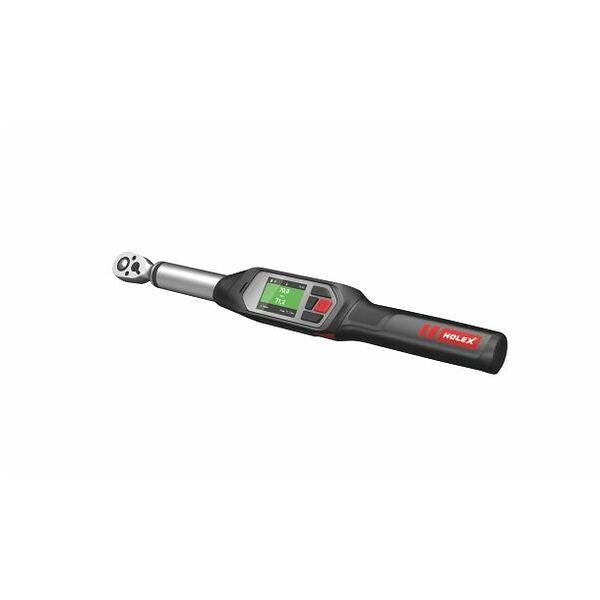

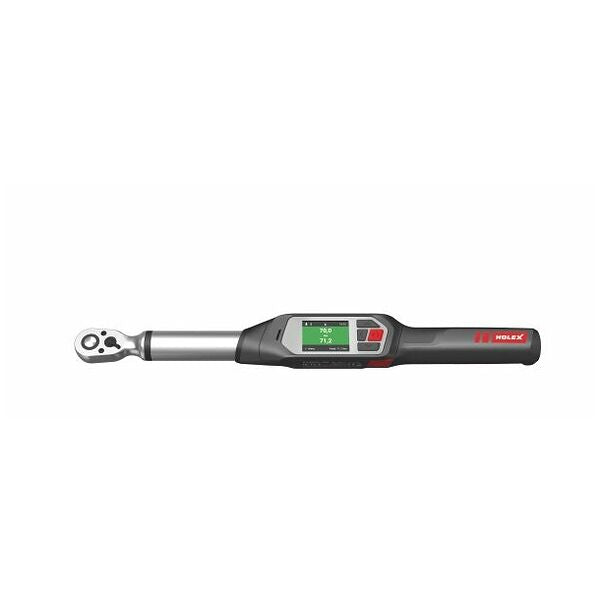

Electronic torque wrench HCT, maximum torque: 12N·m

• Display: Large sharp contrast illuminated 2 inch TFT display with viewing angle stability. With battery display.
• Fixed ratchet with changeover lever.
• Display: Peak and Track function modes.
• Modes: Displaying torque, triggering torque.
• Screw tightening profiles and procedures can be programmed both directly at the wrench and also conveniently via the app.
• Possible wireless applications: HCT Windows app and HCT mobile app. The analyser has a bi-directional interface. The analyser can also be used independently (without the app).
• App: The Bluetooth® dongle No. 498999 STICK (license) and the Windows app software are required to activate the HCT Windows app (https://hog.tools/win-app-hct). The HCT mobile app is available free of charge for iOS and Android.
• Data output: Via Bluetooth®. Available via the app as a .csv file, or directly at the torque wrench via the HID interface for simple and convenient digital documentation.
• Wireless approval: The torque wrenches with Bluetooth® interface have valid wireless approval in all EU countries, in Switzerland, in Norway, Turkey and the UK.
• Password protection: possible as protection against unauthorised access to the menu (master password).
• Warning signals are haptic (vibration), visual (change of colour on the display) and acoustic (buzzer). The pre-warning point can be configured individually. Haptic and acoustic warning signals can be disabled if desired.
• Easy input of reference dimensions: When using extensions, simply input the new value (additional reference dimension). No laborious calculations with formulae.
• Protection class IP40
• The single-component handle of the torque wrench ensures especially good ergonomics and high torque transmission.
• Resistant to oils, grease, fuel, brake fluid and Skydrol.
• Languages: German, English, Spanish, Italian, French.
• Factory settings: The wrench can be reset to the factory settings.
• Time and date on the wrench are updated automatically as soon as it is connected to the app.
• Display of the software version with serial number, load cycle counter and calibration date.
• Calibration reminder: after number of load cycles.
• Counting function: Load cycle counter is optionally displayed on the screen. This value can be reset at any time.
• Last measurement: The last measurement performed can be called up quickly and easily in the main screen.
• Premium features: The rotational angle measurement can be activated individually via our GO DIGITAL STORE as an additional licence. Can be found at http://ho7.eu./holex-hct.

Units of measure: Nm, lbfft, lbfin.

Please update the application and Bluetooth® firmware of your HCT torque wrenches to take full advantage of the benefits! Application firmware from 1.1.10, Bluetooth® firmware from 1.3.6.

HCT – Hoffmann Group Connected Tools
Advantages of wireless transmission with Bluetooth®:

• Simple data transmission: At the push of a button the measuring result is transmitted directly to your PC application (such as Excel or Word) or to your mobile phone - no dongle necessary.
• Freedom of movement: No messy data transmission cables.
• Independence of location: Measurements can be performed directly to the machine and transmitted by radio to your application.
• Reliable data transmission: No read errors and transmission errors - multiple measuring devices can be linked together.

Tested to DIN EN ISO 6789.

Torque: Clockwise ±2 %, anticlockwise ±3 %.

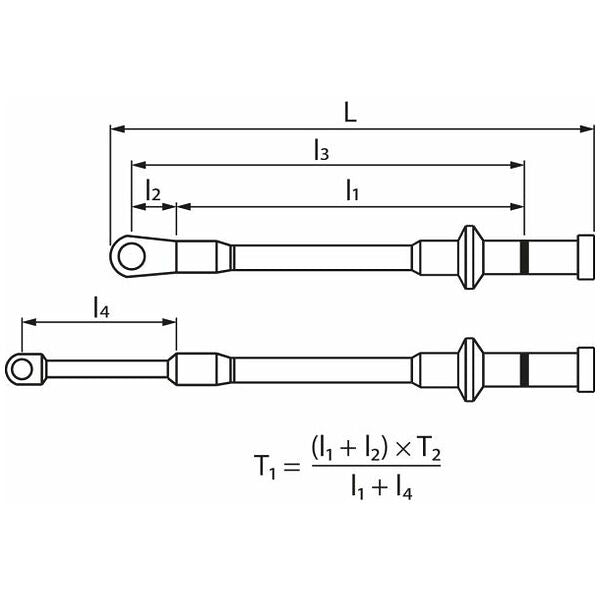

Legend for drawing and formula:

l₁ = Lever length without plug-in head
l₂ = Adjusted reference dimension on the torque wrench
l₃ = Lever length including factory calibration reference dimension
l₄ = Reference dimension of the plug-in head
L = Total length of the tool
T₁ = Torque to be set
T₂ = Specified torque

1 commercially available Li-ion battery type 18650 3.6 V / 3400 mAh (can be charged directly within the tool via an USB-C plug). Supplied in a sturdy plastic case.

Suitable additional batteries can be found under No. 081574 size 3500. Charger for 4 batteries optionally available under No. 081590 size 4ULTRA.

Intended use

• For controlled tightening and loosening of screws and nuts.
• For left and right-hand tightening.
• For work in industrial environments.
• Before use, allow the unit 30 minutes residence to acclimatise to room temperature.
• Only use if there is reliable stability and sufficient freedom of movement.
• Keep the handle clean. If dirty, clean before use.
• Check that the device is in perfect functional condition and is safe to operate before use.
• Use only when it is technically in good condition and safe to operate.
• If the device is dropped or collides with other objects, do not use again until it has been thoroughly checked and calibrated.
• Have the wrench regularly calibrated and adjusted.
• Always cover unused bushes.

Reasonably foreseeable misuse

• Avoid vibration, reverse movement, shaking, impacts.
• Do not exceed maximum torque of torque wrench, hexagon socket, fixed reversible ratchet and screw attachment.
• Do not use the wrench as an impact tool, do not throw it.
• Only open the housing on the battery cover for battery replacement.
• Do not use in explosion hazard areas.
• Not for use where there is exposure to intense heat, direct sunlight, naked flames or liquids.
• Do not operate outdoors or in rooms with high atmospheric humidity.
• Do not make any unauthorised modifications.
