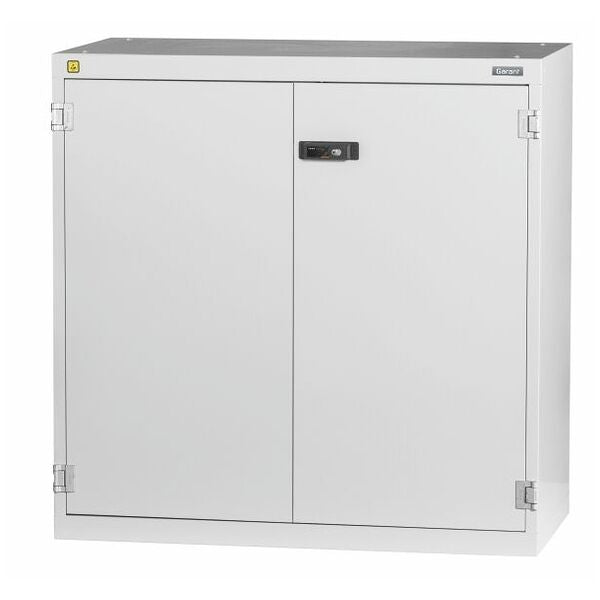

GARANT ESD cabinet with shelves with plain sheet metal swing doors - 972380
GARANT ESD cabinet with shelves with plain sheet metal swing doors - 972380
Article No.: 972380
Regular price
Rs. 111,398.45
Regular price
Sale price
Rs. 111,398.45
Unit price
per
Couldn't load pickup availability
Product details
Technical Data
| Material thickness | 0.9 mm | |
| Shelf load capacity / maximum distributed shelf load (on metal) | 35 kg | |
| Cabinet housing internal load capacity | 1,000 kg | |
| Door opening angle | 250 degrees | |
| Height adjustment interval | 25 mm | |
| Cylinder lock | modular barrel | |
| electrostatic characteristic | EGB/ESD | |
| Height | 1,000 mm | |
| Width | 1,000 mm | |
| Depth | 500 mm | |
| Width in G | 40 | |
| Depth in G | 20 | |
| Usable height | 845 mm | |
| Number of shelves | 2 | |
| Cabinet fronts | Plain sheet metal swing door | |
| Electronic locking system can be retrofitted | yes | |
| ComfortClose | no | |
| Handle positioning | top | |
| Weight | 56 kg | |
| Type of product | Cabinet with shelves |
Identification & Classification
| Article number | 972380 1000 | |
| EAN / GTIN | 4062406180720 | |
| Manufacturer number | 972380 1000 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
Cabinet ESD conductive, to DIN EN 61340-5-1. Mountings for shelves at 25 mm intervals. Swing doors reinforced on the inside and can be locked by 2-component Haptoprene® slide handle with a cylinder lock. Levelling base with 4 individually adjustable feet to compensate for unevenness in the floor.
Performance of ESD tests based on DIN EN 61340-5-1. Measurement of the resistance to an equipotential bonding system connection point is performed using a limit value Rgp < 1GΩ. Storage shelves are ESD powder-coated. The plastic feet of the cabinet are not ESD-conductive, therefore the earthing point of the cabinet must be connected to the equipotential bonding system of the building.
Performance of ESD tests based on DIN EN 61340-5-1. Measurement of the resistance to an equipotential bonding system connection point is performed using a limit value Rgp < 1GΩ. Storage shelves are ESD powder-coated. The plastic feet of the cabinet are not ESD-conductive, therefore the earthing point of the cabinet must be connected to the equipotential bonding system of the building.
Colour:
Light grey similar to RAL 7035 ESD powder-coated.
Note:
Delivered without ESD protective packaging. All plastic components (e.g. covering caps and push handles) are non-ESD conductive.
According to the TÜV GS certification, it is essential that all cabinets are secured against tipping over.
According to the TÜV GS certification, it is essential that all cabinets are secured against tipping over.
Warning:
Intended use
Reasonably foreseeable misuse
- Keep doors’ swing range unobstructed, keep doors and drawers closed.
- Drawers for storage of tools.
- Storage shelf for storage of workpieces and tools.
- For work in indoor industrial environments. For use on dry solid floors.
- It is essential the cabinet is secured against toppling.
- Use only when it is technically in good condition and safe to operate.
Reasonably foreseeable misuse
- Do not make any unauthorised modifications.
- Do not overload cabinet, drawers and storage shelf.
- Do not climb into or sit on cabinet, drawers or storage shelf.
- Do not place objects on cabinet shell that will extend beyond its edge.
- Do not place articles in the cabinet roughly.
- Do not store any flammable or chemical liquids.
- Do not store any foodstuffs.
- Do not use in explosion hazard areas.
