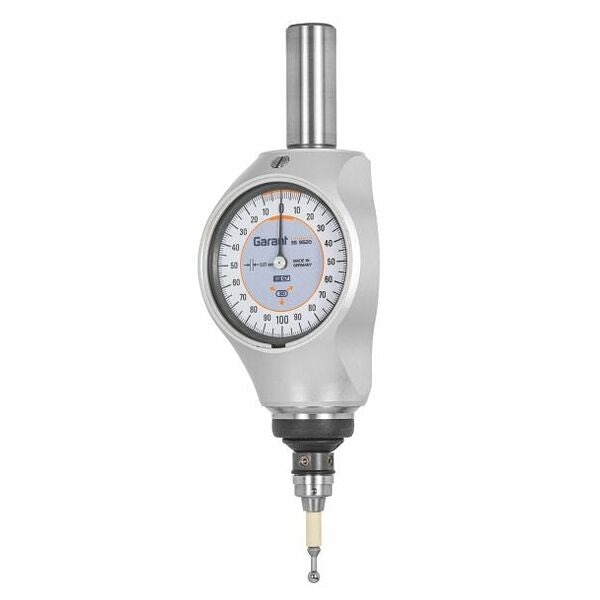

GARANT 3D edge finder, analogue, with contact point (⌀ 4 mm) - 359520
GARANT 3D edge finder, analogue, with contact point (⌀ 4 mm) - 359520
Article No.: 359520
Regular price
Rs. 50,516.00
Regular price
Sale price
Rs. 50,516.00
Unit price
per
Couldn't load pickup availability
Product details
Technical Data
| IP Index of Protection | IP 67 | |
| Shank ⌀ | 16 mm | |
| Shaft length | 40 mm | |
| Reading accuracy | 0.01 mm | |
| Measuring accuracy | 0.01 mm | |
| Displacement travel x, y, z respectively | 7 mm | |
| free length contact point | 40 mm | |
| Overall length (body and contact point) | 134 mm | |
| Display ⌀ | 50 mm | |
| Spare contact point | 359505 4 | |
| Spare glass | 359510 | |
| Type of product | Probes |
Identification & Classification
| Article number | 359520 | |
| EAN / GTIN | 4045197223302 | |
| Manufacturer number | 359520 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
- Linear scale.
- Suitable for measuring.
- Precise operation.
- Compact design avoids collisions when finding edges.
- Dust-tight and watertight = IP67.
- Convenient and exact concentricity adjustment.
- One scale for both radial and axial run-out.
Function:
IP67: Protected against intermittent immersion in water and protected against penetration by dust (dust-tight), also completely protected against touching.
Application:
Precision measuring device for milling and spark erosion machines. For determining component zero-points, measurement of lengths, bore centres and reference edges.
