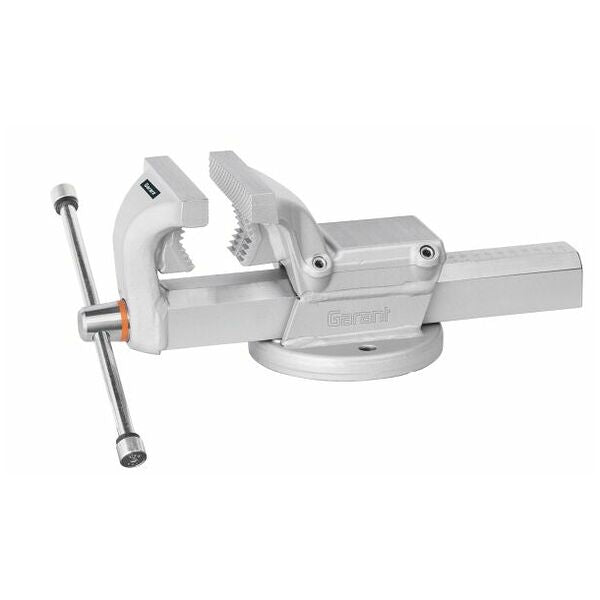

GARANT Bench vice - 967100

Entirely of forged steel − guaranteed unbreakable.
Slides forward on opening. With pipe clamping jaws underneath the normal jaws. Powerful, CNC-machined precision spindle with rolled thread. Spindle and guides are protected from dirt. Large hardened anvil area for shaping and upsetting work. Double adjustable guide.
With solid, surface-hardened jaws (not interchangeable).

Impact absorber washers.
Embossed measuring scale.
Guide setting: Internal hexagon screw with brass thrust washers – runs very easily.
Strong pipe jaws.

• Tightening bar with impact-absorbing washers at both ends no irritating noise when the bar falls through.
• Long-pitch thread spindle for quick opening and closing.
• Interchangeable tightening bar.
• Opening scale embossed into slide.

Fasteners for attachment to the workbench.

For suitable height adjuster see No. 967520.

Intended use

• Use only in enclosed spaces.
• Use only on a flat and clean base.
• Use for clamping workpieces.
• For clamping workpieces in the blank or partially machined state.
• Use only when correctly assembled.
• Use vice only with the spindle wrench supplied.

Reasonably foreseeable misuse

• Do not use in explosion hazard areas.
• Not for use in areas where high concentrations of dust, flammable gases, vapours or solvents are present.
• Do not make any unauthorised modifications.
• Use only original spare parts and wearing parts.
• It is not permissible to use auxiliary media when clamping items.
