GARANT Precision dial indicator IP67, shock-resistant, Measuring range / Body ⌀: 10/58mm - 432210 10/58
GARANT Precision dial indicator IP67, shock-resistant, Measuring range / Body ⌀: 10/58mm - 432210 10/58
Article No.: 432210 10/58
Regular price
Rs. 13,957.00
Regular price
Sale price
Rs. 13,957.00
Unit price
per
Couldn't load pickup availability
- Standard: DIN 878
- IP Index of Protection: IP 67
- Packaging: sturdy box
Product details
Technical Data
| Standard | DIN 878 | |
| Measuring range | 10 mm | |
| Graduation | 0.01 mm | |
| Reading per pointer revolution | 1 mm | |
| Rotatable dial face | yes | |
| Measurement variation MPE (measurement range) | 15 µm | |
| IP Index of Protection | IP 67 | |
| adjustable tolerance marks | yes | |
| Gauging force | 0.9 N - 1.6 N | |
| Clamping shank ⌀ h6 | 8 mm | |
| Measurement technology | analogue | |
| Body ⌀ | 58 mm | |
| Packaging | sturdy box | |
| Type of product | dial gauge |
Identification & Classification
| Article number | 432210 10/58 | |
| EAN / GTIN | 4045197154071 | |
| Manufacturer number | 432210 10/58 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:

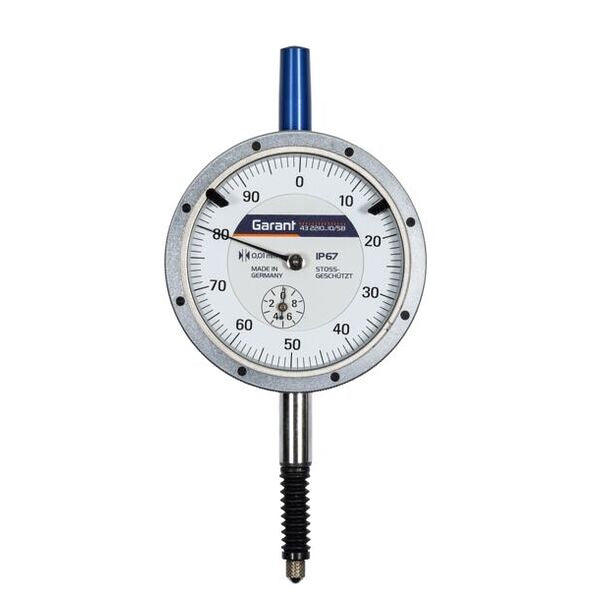

Dial indicators with protection against splashed water, oil and dirt. Contact point on plunger spindle sealed by rubber bellows, sealed by protective sleeve at the top. Back wall sealed, glass and outer ring tightly screwed. Clamping shank ⌀ 8 mm h6.
Function:
IP67: Protected against intermittent immersion in water and protected against penetration by dust (dust-tight), also completely protected against touching.
