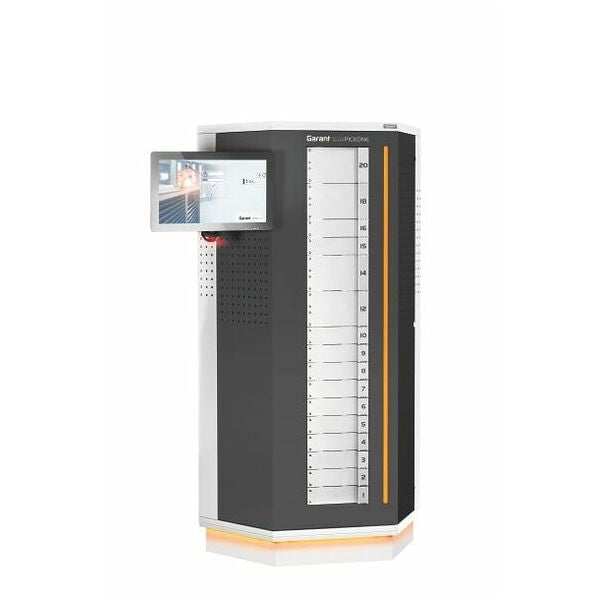

GARANT Tool24 PickOne – master system EN, Total number of compartments - 979211

Goods issuing system with innovative drum system to ensure secure individual withdrawal of every item. Very quick goods removal due to low access times, self-opening compartment and visual signal at the correct withdrawal compartment. The drum of the Tool24 PickOne is available with up to 4 different compartment sizes as standard configuration and with a load capacity of more than 1000 kg, specially designed for industrial use. Flexible attachment of a touch screen thanks to double-sided perforated panel.
The master system can be extended with additional extension systems and combined with all Tool24 hardware variants.
This article is compatible with the Hoffmann Group Connected software solutions.
With this article you are gaining a building block for your digitally networked production. Increased productivity can be achieved together with the respective software module.

Maximum number of storage spaces, ideal for the output of small-volume products such as indexable inserts.

22 inch touch screen; barcode scanner; PC including Basic software package, operating system in English.

Body RAL 7035 light grey, fronts RAL 7016 anthracite grey, powder-coated.

The drum of the Tool24 PickOne is individually and uniquely configurable for each customer with 4 different storage sizes depending on the portfolio of items to be issued. Talk to your technical adviser.
The weights do not include a PC and monitor.

Intended use

• Industrial vending system with access protection for persons entitled to withdraw, place in store and manage articles.
• Barcode scanner for scanning articles.
• Control of management, filling and removal using a touch screen monitor (master system).
• Store articles only in a correct and clean condition.
• For security, store or retrieve articles in packaging if they are ground or liable to roll.
• For work in indoor industrial environments. For use on dry solid floors.
• Use only when it is technically in good condition and safe to operate.

Reasonably foreseeable misuse

• Do not store any foodstuffs.
• Do not use in explosion hazard areas.
• Do not store any containers holding liquids or gases, nor any substances classified under the Hazardous Goods Act, within the system.
• Not for use where there is exposure to intense heat, direct sunlight, naked flames or liquids.
• Do not make any unauthorised modifications.
• Do not replace the integral LED lamps.
