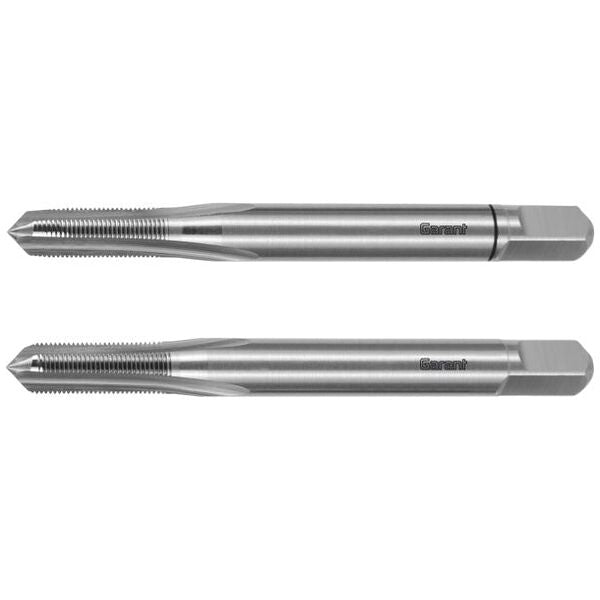

Hand tap set, uncoated, MF: 2X0,25 - 130470
Hand tap set, uncoated, MF: 2X0,25 - 130470
Article No.: 130470
Regular price
Rs. 9,785.35
Regular price
Sale price
Rs. 9,785.35
Unit price
per
Couldn't load pickup availability
Thread type: MF Flank angle: 60 Tool material: HSS Standard: DIN 2181 Thread standard: DIN 13
Product details
Technical Data
| Thread size | M2×0.25 | |
| Coating | uncoated | |
| Thread type | MF | |
| Flank angle | 60 degrees | |
| Tool material | HSS | |
| Standard | DIN 2181 | |
| Thread standard | DIN 13 | |
| Tolerance class | ISO 1 4H | |
| Taper lead form | D | |
| Shank | Plain shank with h9 | |
| Through-coolant | no | |
| Application for type of drilling | up to 3×D for blind holes; up to 3×D for through holes | |
| Cutting direction | right-hand | |
| Thread pitch | 0.25 mm | |
| Overall length L | 36 mm | |
| Shank ⌀ Ds | 2.8 mm | |
| Shank square □ | 2.1 mm | |
| Tapping hole ⌀ | 1.75 mm | |
| Thread ⌀ | 2 mm | |
| Type of threading tool | Hand tap | |
| Colour ring | without | |
| Thread depth | 4 mm | |
| Type of product | Tap |
Identification & Classification
| Article number | 130470 2X0,25 | |
| EAN / GTIN | 4045197066848 | |
| Manufacturer number | 130470 2X0,25 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
