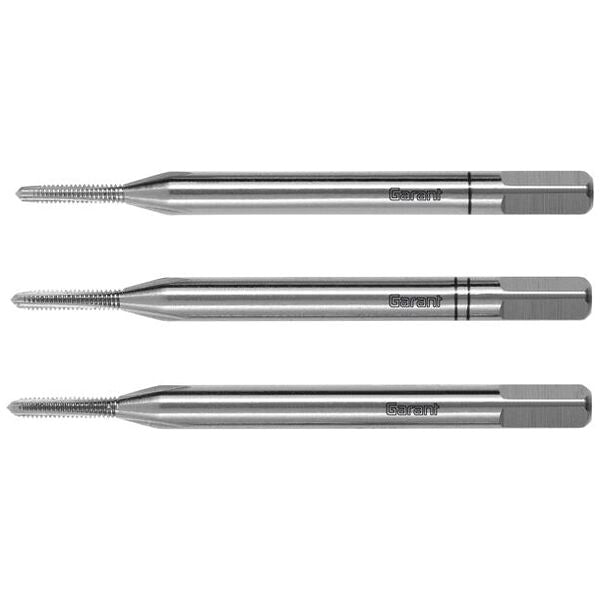

GARANT Hand tap set, uncoated, M: M1 - 130150
GARANT Hand tap set, uncoated, M: M1 - 130150
Article No.: 130150
Regular price
Rs. 12,290.17
Regular price
Sale price
Rs. 12,290.17
Unit price
per
Couldn't load pickup availability
Product details
Technical Data
| Thread size | M1 | |
| Coating | uncoated | |
| Thread type | M | |
| Flank angle | 60 degrees | |
| Tool material | HSS | |
| Standard | DIN 352 | |
| Thread standard | DIN 13 | |
| Tolerance class | ISO 1 4H | |
| Taper lead form | A; D; C | |
| Shank | Plain shank with h9 | |
| Through-coolant | no | |
| Application for type of drilling | up to 3×D for blind holes; up to 3×D for through holes | |
| Cutting direction | right-hand | |
| Thread pitch | 0.25 mm | |
| Overall length L | 25 mm | |
| Shank ⌀ Ds | 2.5 mm | |
| Shank square □ | 2.1 mm | |
| Tapping hole ⌀ | 0.75 mm | |
| Thread ⌀ | 1 mm | |
| Type of threading tool | Hand tap | |
| Colour ring | without | |
| Thread depth | 2 mm | |
| Type of product | Tap |
Identification & Classification
| Article number | 130150 M1 | |
| EAN / GTIN | 4045197065216 | |
| Manufacturer number | 130150 M1 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Thread type: M
Flank angle: 60
Tool material: HSS
Standard: DIN 352
Thread standard: DIN 13
