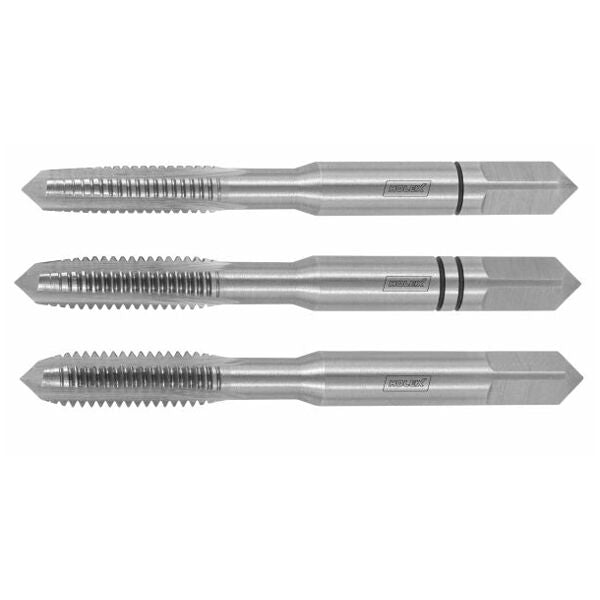

HOLEX Hand tap set, uncoated, M: M3 - 130250
HOLEX Hand tap set, uncoated, M: M3 - 130250
Article No.: 130250
Regular price
Rs. 2,153.48
Regular price
Sale price
Rs. 2,153.48
Unit price
per
Couldn't load pickup availability
Thread type: M Flank angle: 60 Tool material: HSS Standard: DIN 352 Thread standard: DIN 13
Product details
Technical Data
| Thread size | M3 | |
| Coating | uncoated | |
| Thread type | M | |
| Flank angle | 60 degrees | |
| Tool material | HSS | |
| Standard | DIN 352 | |
| Thread standard | DIN 13 | |
| Tolerance class | ISO 2 6H | |
| Taper lead form | A; D; C | |
| Shank | Plain shank with h9 | |
| Through-coolant | no | |
| Application for type of drilling | up to 3×D for blind holes; up to 3×D for through holes | |
| Cutting direction | right-hand | |
| Thread pitch | 0.5 mm | |
| Overall length L | 40 mm | |
| Shank ⌀ Ds | 3.5 mm | |
| Shank square □ | 2.7 mm | |
| Tapping hole ⌀ | 2.5 mm | |
| Thread ⌀ | 3 mm | |
| Type of threading tool | Serial hand taps | |
| Colour ring | without | |
| Thread depth | 6 mm | |
| Type of product | Taps |
Identification & Classification
| Article number | 130250 M3 | |
| EAN / GTIN | 4067263829690 | |
| Manufacturer number | 130250 M3 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
