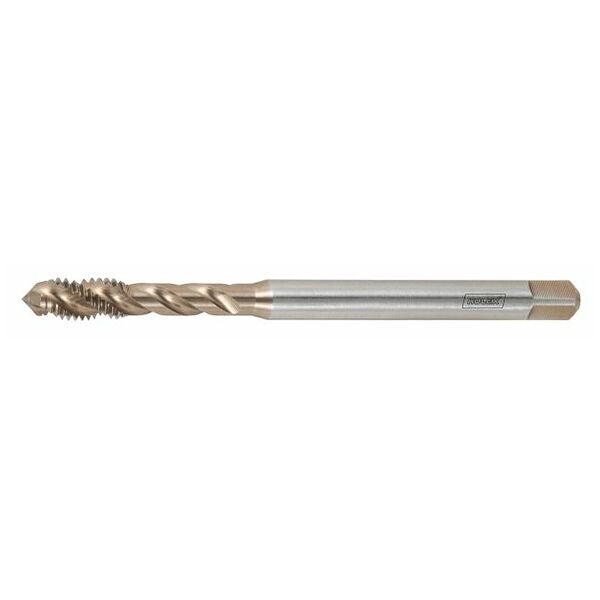

HOLEX Clever Tap machine tap, uncoated, M: M3 - 135255
HOLEX Clever Tap machine tap, uncoated, M: M3 - 135255
Article No.:
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Unit price
per
Couldn't load pickup availability
Sturdy tap for conventional standard applications. High-quality HSS-E tool material and geometry for steels. Surface: Bronze-coloured tempered thread profile.
Product details
Technical Data
| Thread size | M3 | |
| Coating | uncoated | |
| Thread type | M | |
| Flank angle | 60 degrees | |
| Tool material | HSS E | |
| Standard | DIN 371 | |
| Thread standard | DIN 13 | |
| Tolerance class | ISO 2 6H | |
| Taper lead form | C | |
| Helix angle | 40 degrees | |
| Shank | Plain shank with h9 | |
| Through-coolant | no | |
| Application for type of drilling | up to 2.5×D for blind holes | |
| Cutting direction | right-hand | |
| Thread pitch | 0.5 mm | |
| Overall length L | 56 mm | |
| Shank ⌀ Ds | 3.5 mm | |
| Shank square □ | 2.7 mm | |
| Tapping hole ⌀ | 2.5 mm | |
| Thread ⌀ | 3 mm | |
| Type of threading tool | Machine tap for conventional machining | |
| Number of clamping slots | 3 | |
| Colour ring | without | |
| Series | Clever Tap | |
| Number of cutting edges Z | 3 | |
| Thread depth | 7.5 mm | |
| Type of product | Taps |
Identification & Classification
| Article number | 135255 M3 | |
| EAN / GTIN | 4067263161431 | |
| Manufacturer number | 135255 M3 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
