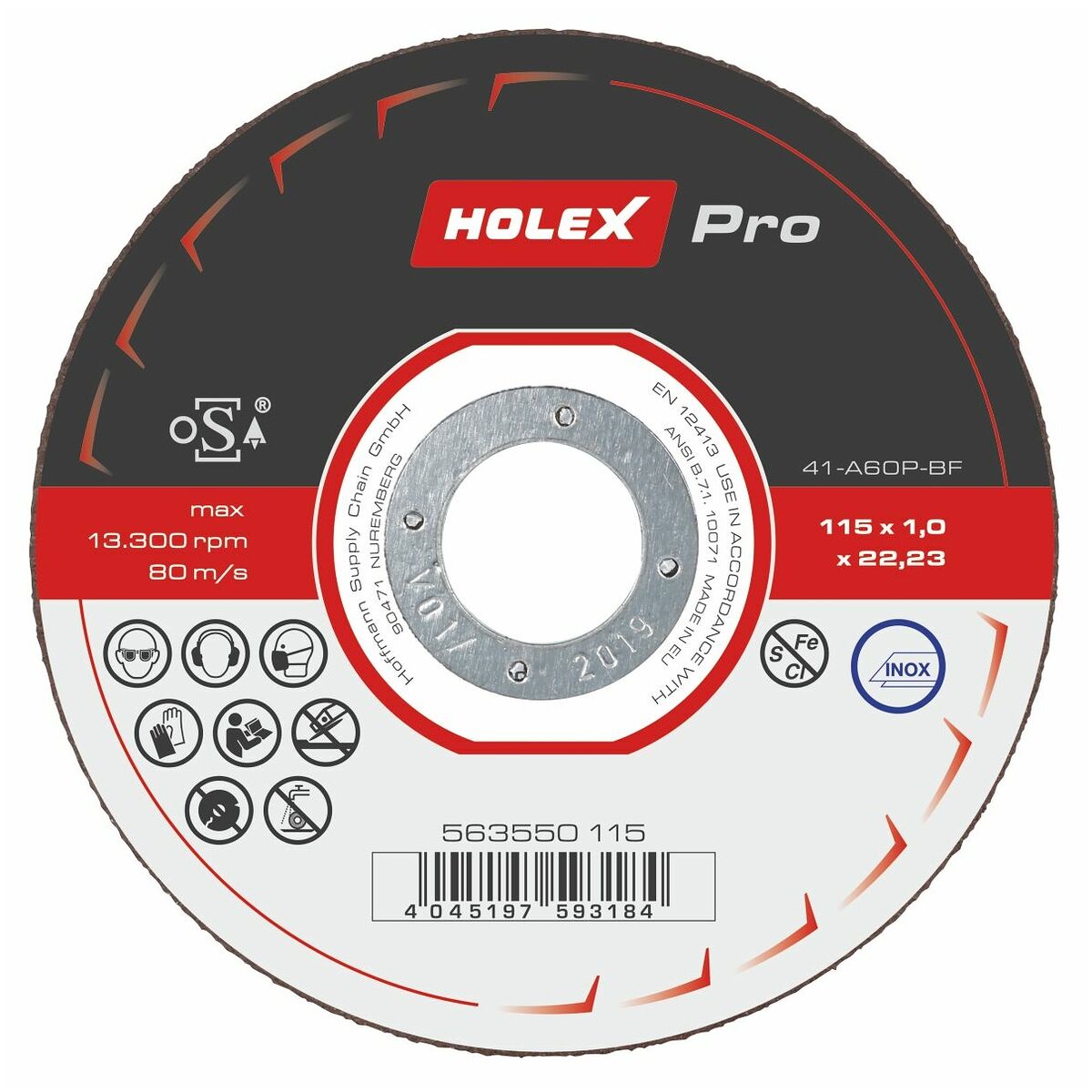

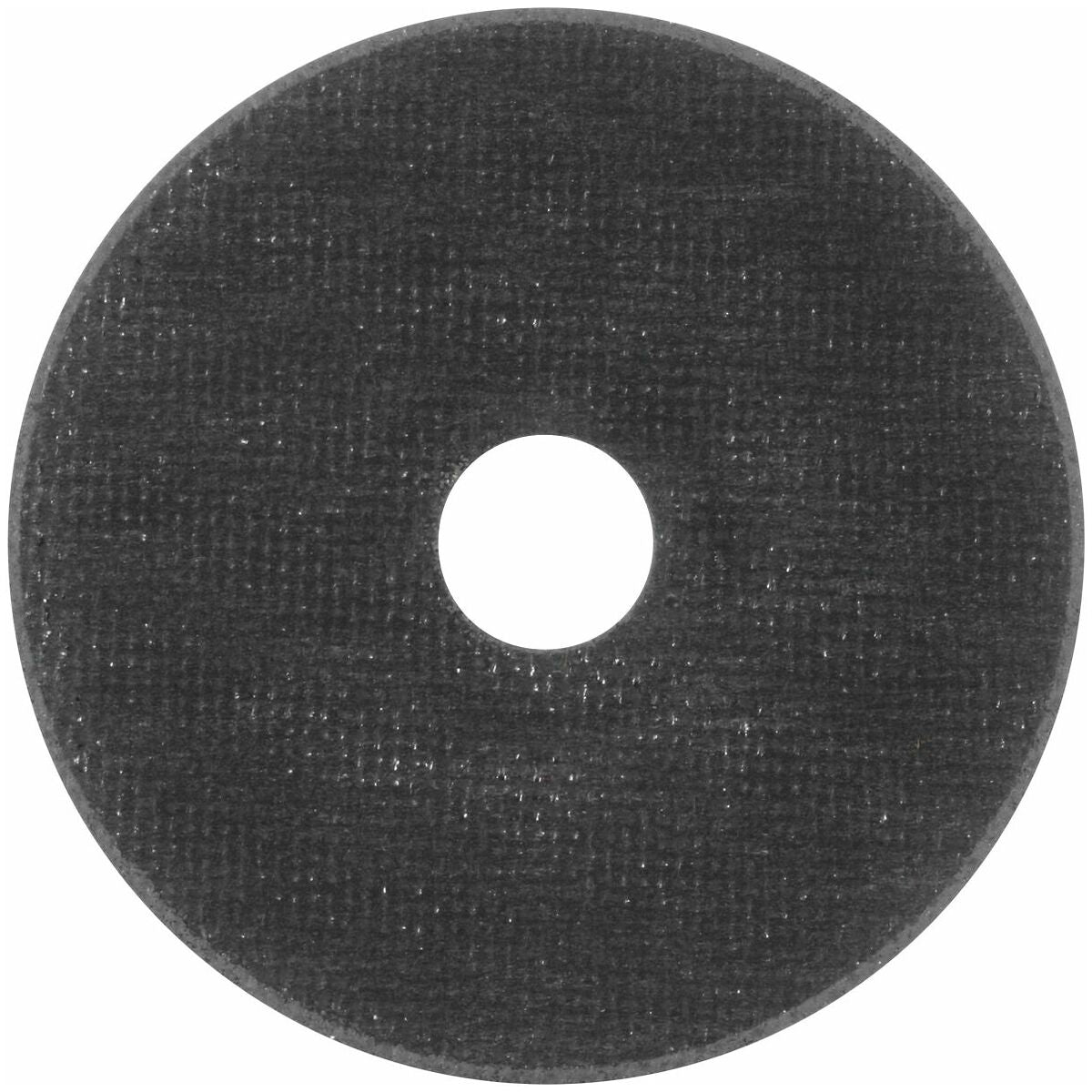

HOLEX Pro cutting disc EXTRA THIN, Disc ⌀: 115mm
HOLEX Pro cutting disc EXTRA THIN, Disc ⌀: 115mm
Article No.: 563550 115
Regular price
Rs. 87.76
Regular price
Rs. 186.56
Sale price
Rs. 87.76
Unit price
per
- Grinding medium code: A
- Iron, sulphur & chlorine constituents: < 0.1
- Shape description: flat
- Bore ⌀: 22.23
- recommended approach angle: 90
Product details
Technical Data
| Grinding medium code | A | |
| Specification | A60P-BF | |
| Iron, sulphur and chlorine constituents | < 0.1 % | |
| Shape | 41 | |

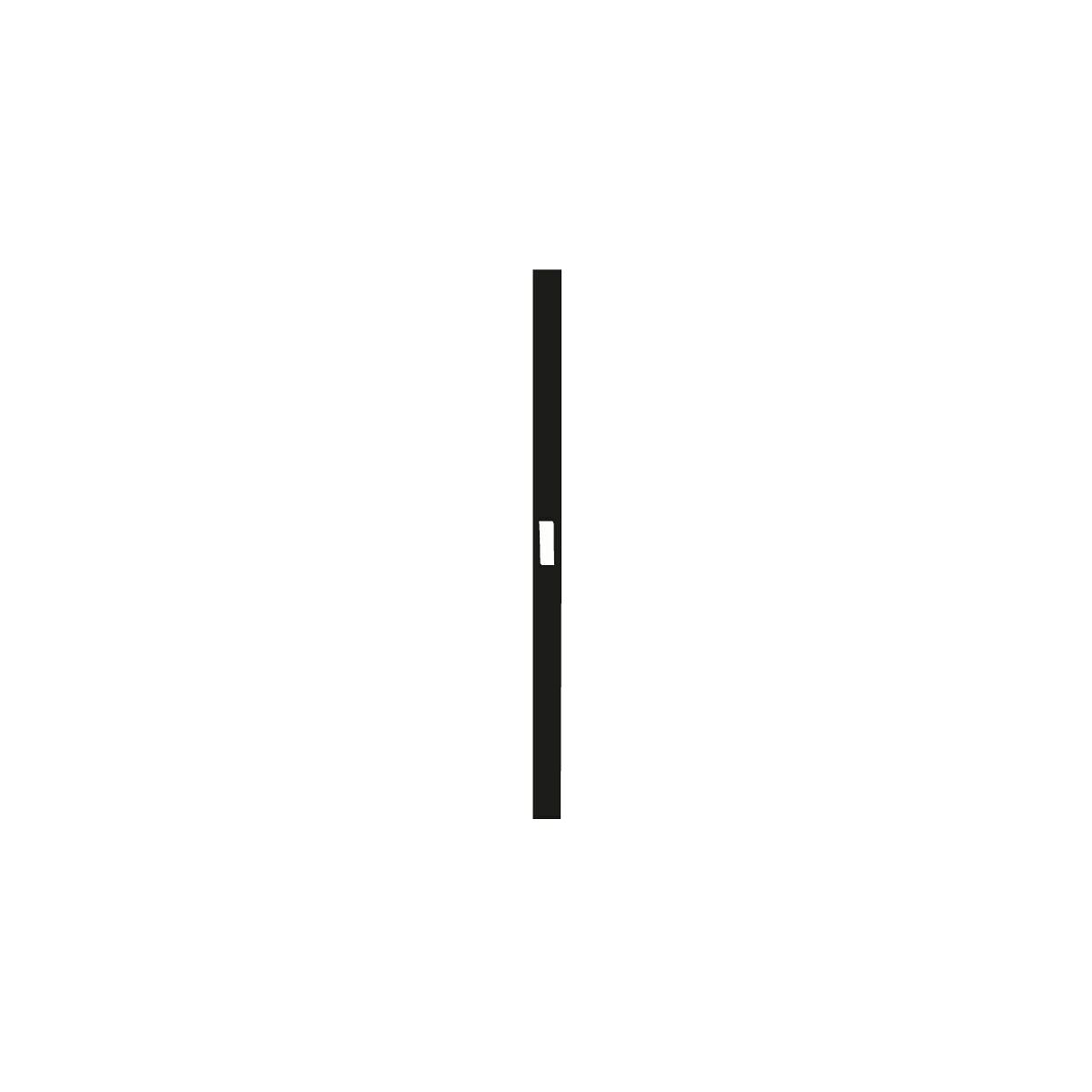

| Shape description | flat | |
| Disc ⌀ | 115 mm | |
| Disc thickness | 1 mm | |
| Bore ⌀ | 22.23 mm | |
| for material thicknesses | 3 mm - 5 mm | |
| recommended approach angle | 90 degrees | |
| optimised for material | Steel | |
| Propulsive equipment | Angle grinders | |
| maximum circumferential speed | 80 m/s | |
| maximum speed | 13,300 min-1 | |
| Type of product | Cutting disc |
Identification & Classification
| Article number | 563550 115 | |
| EAN / GTIN | 4045197593184 | |
| Manufacturer number | 563550 115 | |
| Manufacturer | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
- Grit, bonding, abrasive additives as well as reinforcement of the cut-off discs are optimised for maximum cutting performance and working life in their respective applications.
- Thin cutting discs (0.8 mm / 1.0 mm / 1.6 mm) specially suited for quick burr-free cutting with low thermal stress. On older angle grinders please ensure discs are precisely centred! Cutting discs from 2.0 mm disc thickness exhibit increased lateral stability, stiffness and service life.
- Shapes: Cutting discs flat (shape 41) or with depressed centre (shape 42).
The thin cutting disc for quick cuts without heavy force.
Application:
For freehand cutting using electric and pneumatic angle grinders with maximum 80 m/s peripheral cutting speed vc.
Specification:
A60P-BF.
Note:
The disc thickness should be at least 20% of the material thickness to be cut. For stainless steel, use cutting discs at reduced speed.
