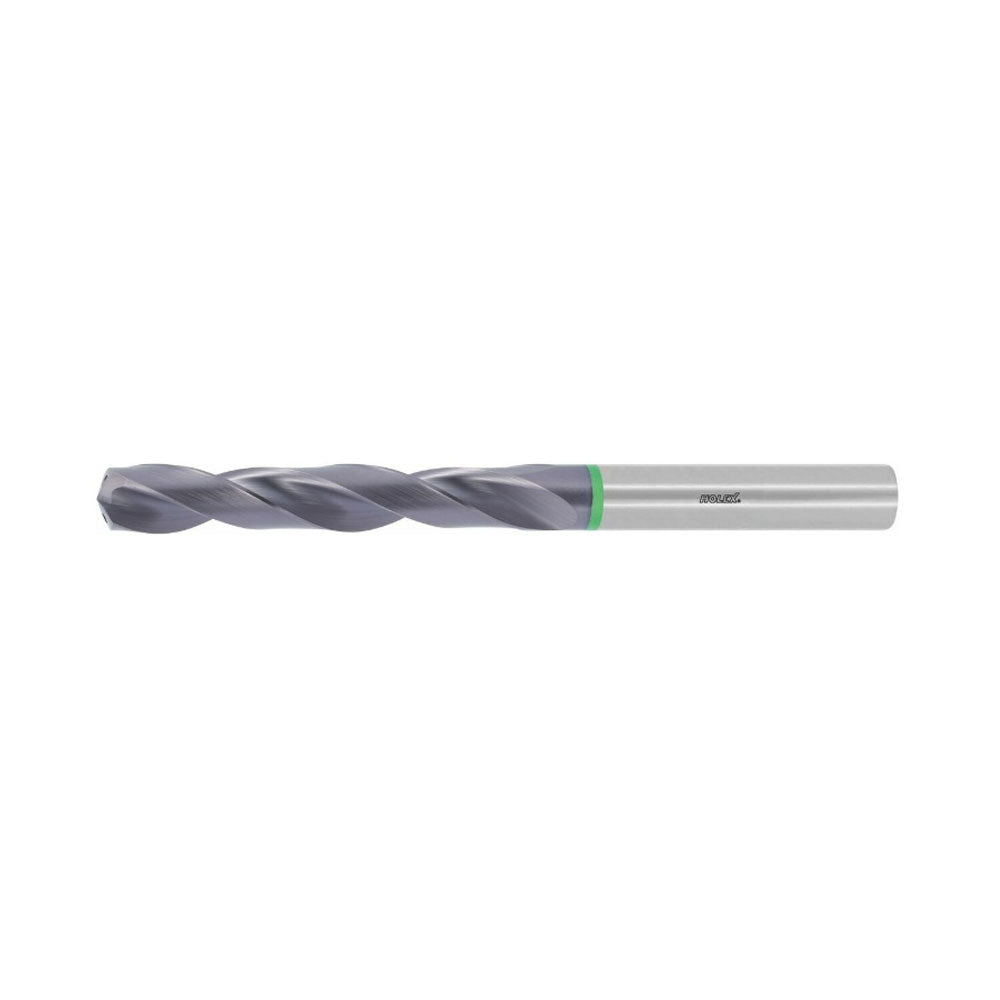

HOLEX Pro Steel solid carbide drill, plain shank DIN 6535 HA, TiAlN, ⌀ DC h7 (mm or inch): 1
HOLEX Pro Steel solid carbide drill, plain shank DIN 6535 HA, TiAlN, ⌀ DC h7 (mm or inch): 1
Article No.: 122776 1
Regular price
Rs. 2,629.70
Regular price
Rs. 5,837.31
Sale price
Rs. 2,629.70
Unit price
per
- Tool material: Solid carbide
- Standard: DIN 6537 L
- Version: 6×D
- Tolerance nominal ⌀: h7
- Number of cutting edges Z: 2

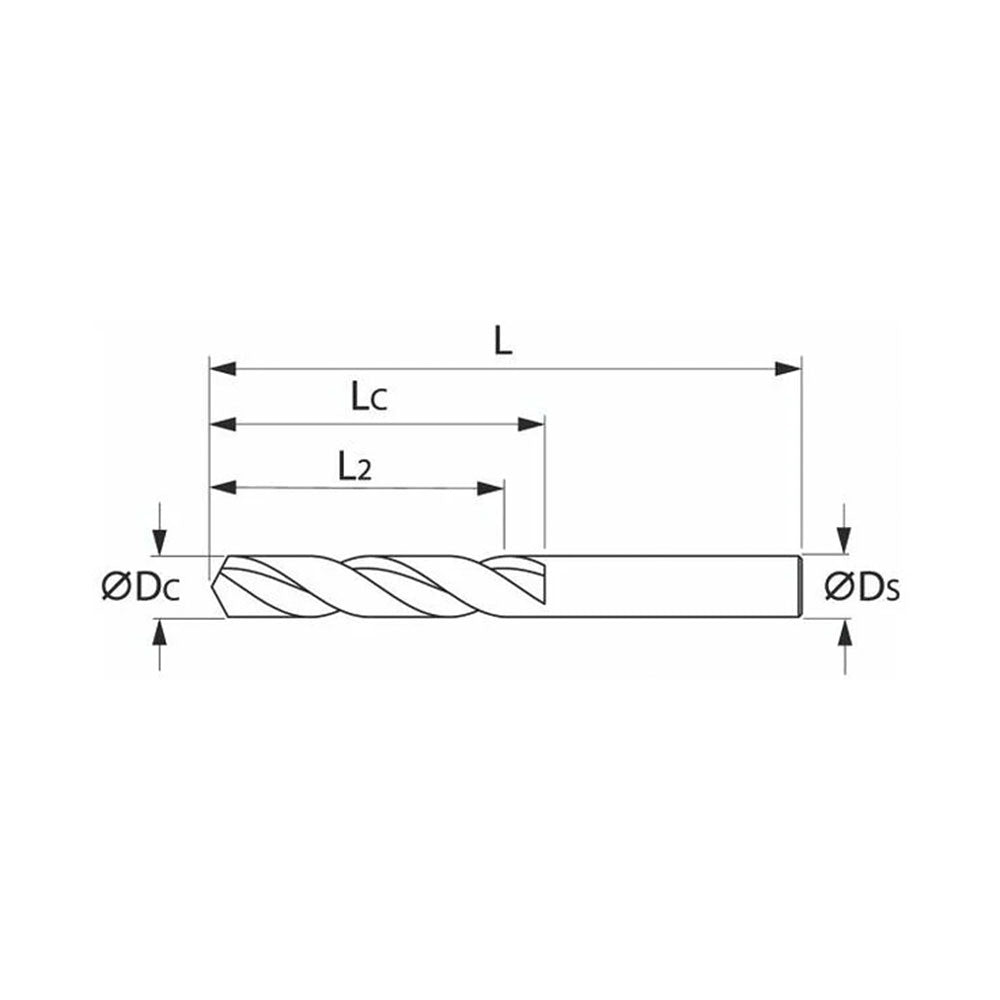

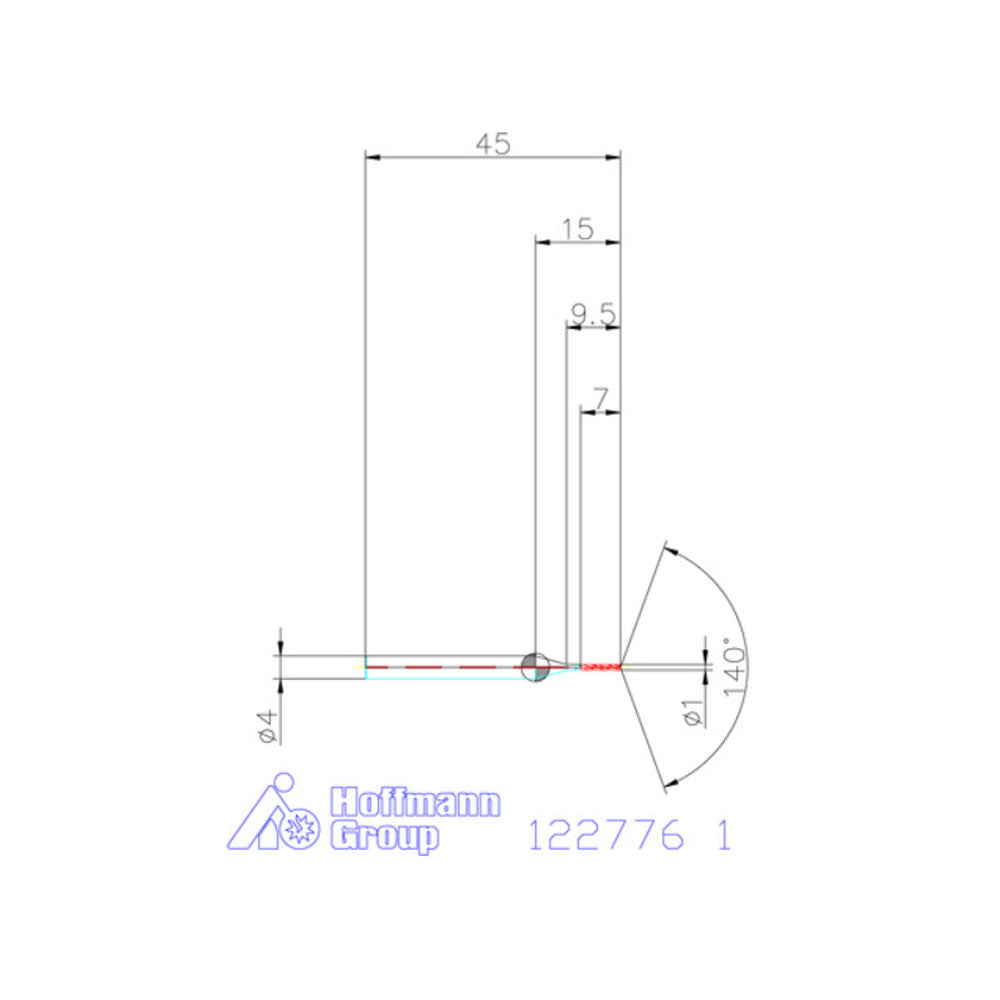

Technical Data
| Series | Pro Steel | |
| Nominal ⌀ DC | 1 mm | |
| Coating | TiAlN | |
| Tool material | Solid carbide | |
| Standard | DIN 6537 L | |
| Version | 6×D | |
| Tolerance nominal ⌀ | h7 | |
| Number of cutting edges Z | 2 | |
| Point angle | 140 degrees | |
| recommended maximum drilling depth L2 | 6.5 mm | |
| Shank | DIN 6535 HA to h6 | |

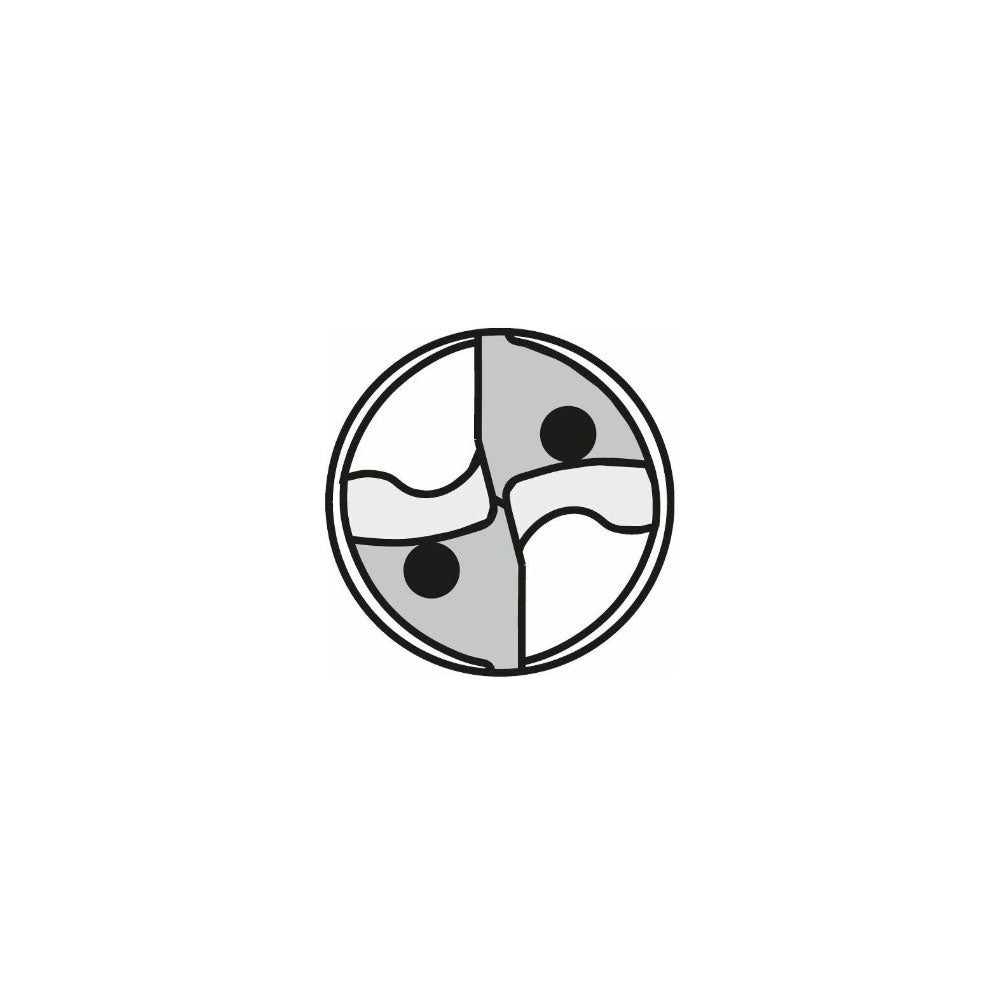

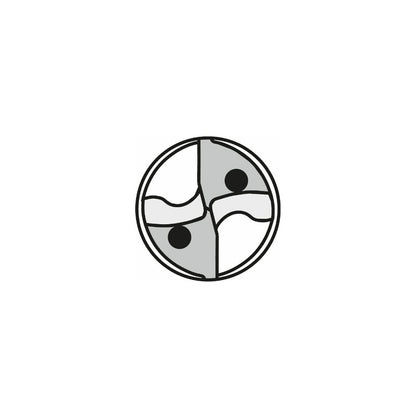

| Through-coolant | yes, with 25 bar | |
| Machining strategy | HPC | |
| Semi-Standard | yes | |
| Flute length Lc | 8 mm | |
| Overall length L | 45 mm | |
| Shank ⌀ Ds | 4 mm | |
| Feed f in steel < 900 N/mm2 | 0.05 mm/rev. | |
| Colour ring | green | |
| Type of product | Jobber drill |
Identification & Classification
| Article number | 122776 1 | |
| EAN / GTIN | 4045197823977 | |
| Manufacturer number | 122776 1 | |
| Manufacturer | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
Efficient drilling especially for use in stainless and acid-resistant steels.
Straight main cutting edges with optimised cutting edge design for improved chip breaking behaviour. Enlarged flutes for excellent chip evacuation. Increased wear resistance due to improved carbide substrate and high temperature resistant coating.
Straight main cutting edges with optimised cutting edge design for improved chip breaking behaviour. Enlarged flutes for excellent chip evacuation. Increased wear resistance due to improved carbide substrate and high temperature resistant coating.
