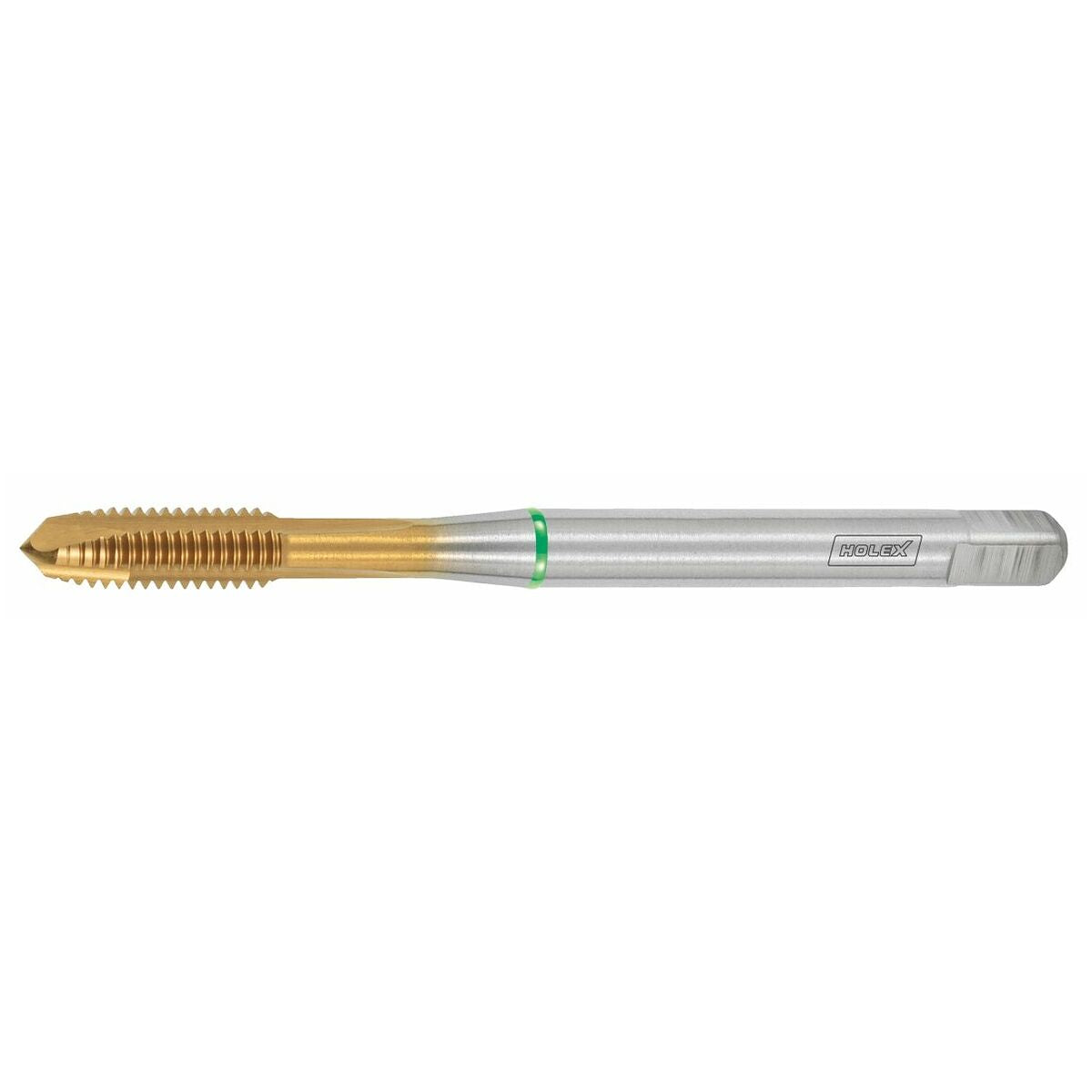

HOLEX Pro Tap machine tap HSS-E, TiN, M: M2
HOLEX Pro Tap machine tap HSS-E, TiN, M: M2
Article No.: 132680 M2
Regular price
Rs. 1,090.99
Regular price
Rs. 2,195.15
Sale price
Rs. 1,090.99
Unit price
per
- Thread type: M
- Flank angle: 60
- Tool material: HSS E
- Standard: DIN 371
- Thread standard: DIN 13
Product details
Technical Data
| Thread size | M2 | |
| Coating | TiN | |
| Thread type | M | |
| Flank angle | 60 degrees | |
| Tool material | HSS E | |
| Standard | DIN 371 | |
| Thread standard | DIN 13 | |
| Tolerance class | ISO 2 6H | |
| Taper lead form | B | |
| Shank | Plain shank with h9 | |
| Through-coolant | no | |
| Application for type of drilling | up to 3×D for through holes | |
| Cutting direction | right-hand | |
| Thread pitch | 0.4 mm | |

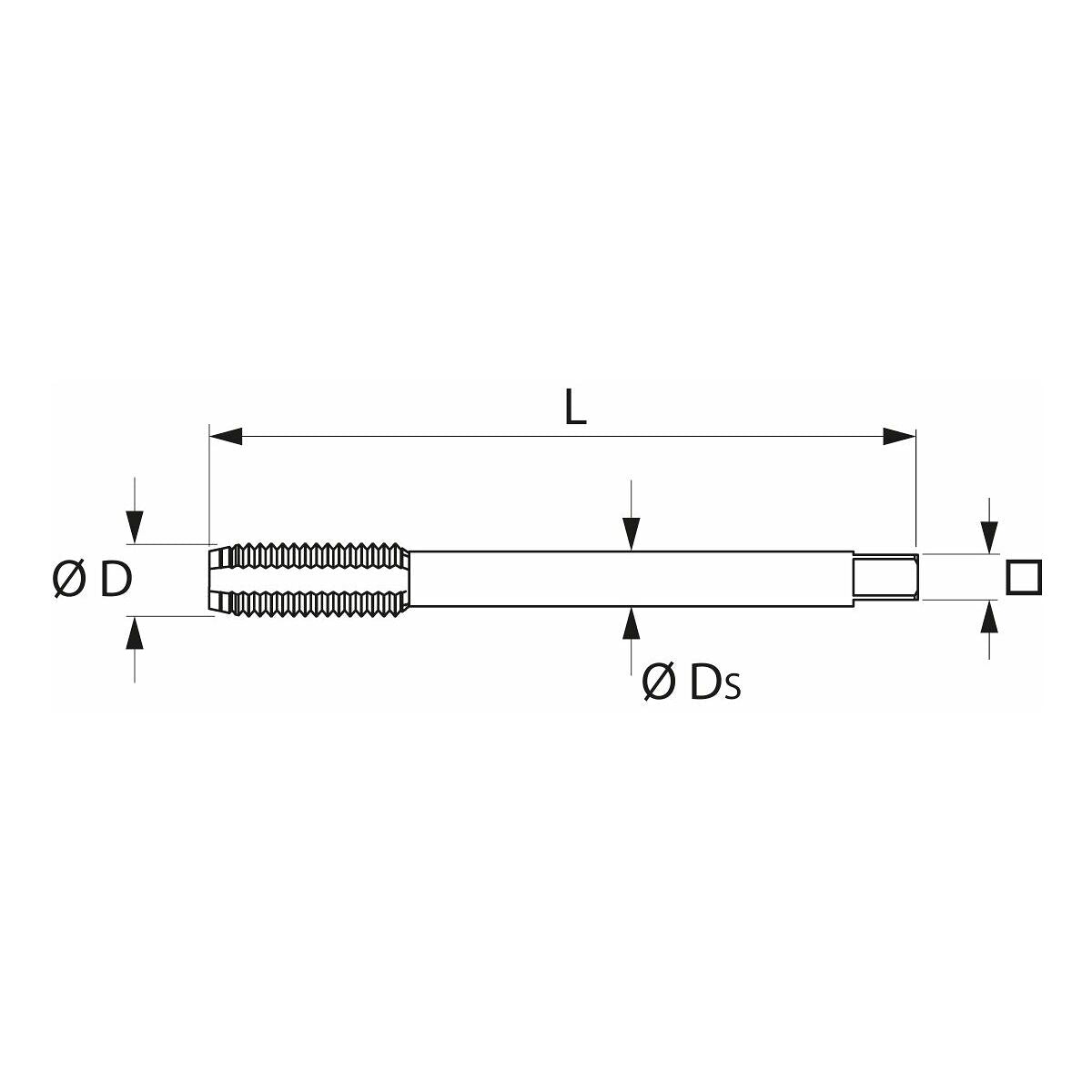

| Overall length L | 45 mm | |
| Shank ⌀ Ds | 2.8 mm | |
| Shank square □ | 2.1 mm | |
| Tapping hole ⌀ | 1.6 mm | |
| Thread ⌀ | 2 mm | |
| Type of threading tool | Machine tap for dynamic machining | |
| Number of clamping slots | 2 | |
| Colour ring | green | |
| Series | Pro Tap | |
| Number of cutting edges Z | 2 | |
| Thread depth | 6 mm | |
| Type of product | Tap |
Identification & Classification
| Article number | 132680 M2 | |
| EAN / GTIN | 4062406373436 | |
| Manufacturer number | 132680 M2 | |
| Manufacturer | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
HOLEX Pro Tap general-purpose tap. Sturdy design suitable for a wide spectrum of materials. Improved HSS-E tool material with low-friction TiN coating.
Tolerance class: ISO 2 6H
