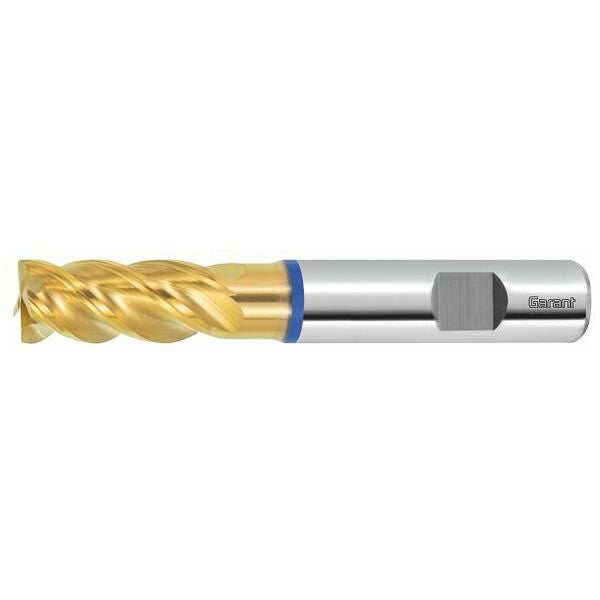

GARANT Master INOX M solid carbide milling cutter HPC / TPC, TiAlN, ⌀ e8 - 202989
GARANT Master INOX M solid carbide milling cutter HPC / TPC, TiAlN, ⌀ e8 - 202989
Article No.: 202989
Regular price
Rs. 5,997.35
Regular price
Sale price
Rs. 5,997.35
Unit price
per
Couldn't load pickup availability
- Tool material: solid carbide
- Standard: Manufacturer’s standard
- Type: N
- Tolerance nominal ⌀: e8
- No. of teeth Z: 4
Product details
Technical Data
| Series | Master INOX | |
| Cutting edge ⌀ DC | 3 mm | |
| Coating | TiAlN | |
| Tool material | solid carbide | |
| Standard | Manufacturer’s standard | |
| Type | N | |
| Tolerance nominal ⌀ | e8 | |
| No. of teeth Z | 4 | |
| Helix angle | 42 degrees | |
| Helix angle characteristic | unequal spacing | |
| Spacing of the cutters | unequal spacing | |
| Direction of infeed | horizontal, oblique and vertical | |
| Cutting width ae for milling operation | Full slot cutting depth 1×D; Full slot cutting depth 1×D | |
| Shank | DIN 6535 HB to h6 | |
| Through-coolant | no | |
| Machining strategy | HPC | |
| Flute length Lc | 5 mm | |
| Overall length L | 50 mm | |
| Shank ⌀ Ds | 6 mm | |
| Corner rounding rv | 0.1 mm | |
| Feed fz for slot milling in stainless steel > 900 N/mm2 | 0.02 mm | |
| Feed fz for side milling in INOX > 900 N/mm2 | 0.03 mm | |
| Colour ring | blue | |
| Type of product | End / face mill |
Identification & Classification
| Article number | 202986 3 | |
| EAN / GTIN | 4062406242275 | |
| Manufacturer number | 202986 3 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
