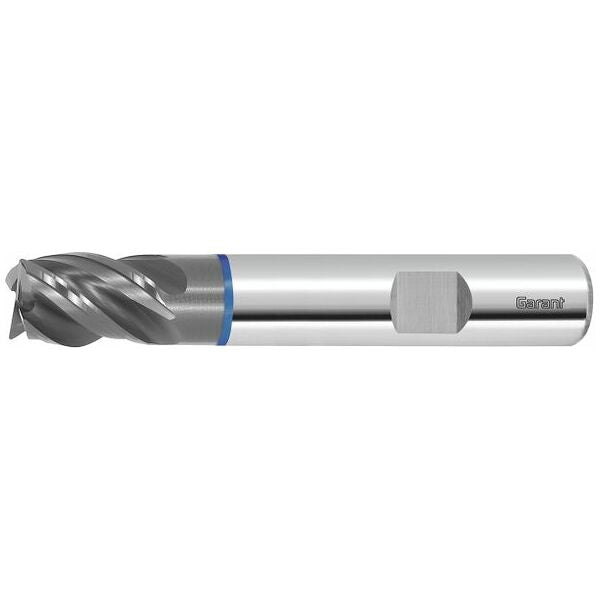

GARANT Master INOX solid carbide milling cutter HPC, TiAlN, ⌀ h10 - 202998
GARANT Master INOX solid carbide milling cutter HPC, TiAlN, ⌀ h10 - 202998
Article No.: 202998
Regular price
Rs. 4,328.74
Regular price
Sale price
Rs. 4,328.74
Unit price
per
Couldn't load pickup availability
- Tool material: Solid carbide
- Standard: DIN 6527
- Type: N
- Tolerance nominal ⌀: h10
- No. of teeth Z: 4
Product details
Technical Data
| Series | Master INOX | |
| Cutting edge ⌀ DC | 3 mm | |
| Coating | TiAlN | |
| Tool material | Solid carbide | |
| Standard | DIN 6527 | |
| Type | N | |
| Tolerance nominal ⌀ | h10 | |
| No. of teeth Z | 4 | |
| Helix angle | 40 degrees | |
| Helix angle characteristic | unequal spacing | |
| Spacing of the cutters | unequal spacing | |
| Direction of infeed | horizontal, oblique and vertical | |
| Cutting width ae for milling operation | Full slot cutting depth 1×D; 0.3×D for side milling | |
| Shank | DIN 6535 HB to h6 | |
| Through-coolant | no | |
| Machining strategy | HPC | |
| Flute length Lc | 5 mm | |
| Overall length L | 50 mm | |
| Shank ⌀ Ds | 6 mm | |
| Corner chamfer width at 45° | 0.15 mm | |
| Corner chamfer angle | 45 degrees | |
| Feed fz for slot milling in stainless steel > 900 N/mm2 | 0.012 mm | |
| Feed fz for side milling in INOX > 900 N/mm2 | 0.015 mm | |
| Colour ring | blue | |
| Type of product | End / face mill |
Identification & Classification
| Article number | 202998 3 | |
| EAN / GTIN | 4045197860910 | |
| Manufacturer number | 202998 3 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
For roughing and finishing.
HPC milling cutter with newly developed high-performance coating for outstanding tool life and optimum metal removal rate in a very wide range of stainless steels. Greater oxidation resistance and high-temperature hardness.
Can be used at high cutting speeds, particularly suitable even for TOOLOX®.
HPC milling cutter with newly developed high-performance coating for outstanding tool life and optimum metal removal rate in a very wide range of stainless steels. Greater oxidation resistance and high-temperature hardness.
Can be used at high cutting speeds, particularly suitable even for TOOLOX®.
Advantage:
Particularly low vibration running.
