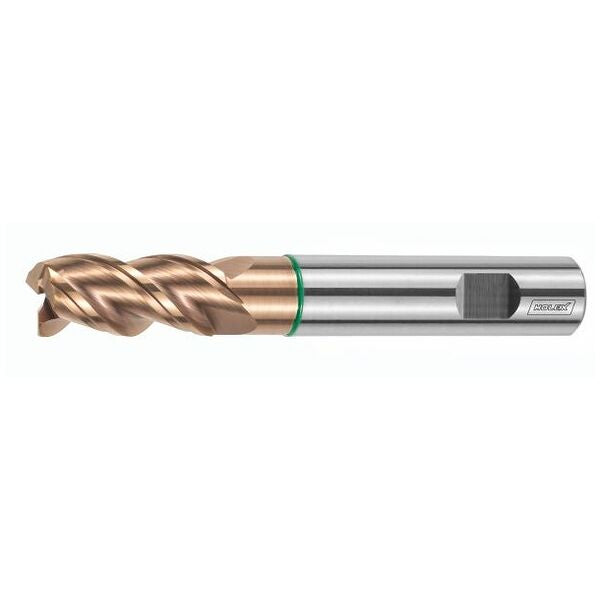

HOLEX Pro UNI solid carbide milling cutter HPC, TiSiN, ⌀ e8 - 202432
HOLEX Pro UNI solid carbide milling cutter HPC, TiSiN, ⌀ e8 - 202432
Article No.: 202432
Regular price
Rs. 3,066.39
Regular price
Sale price
Rs. 3,066.39
Unit price
per
Couldn't load pickup availability
- Tool material: Solid carbide
- Standard: Manufacturer’s standard
- Type: N
- Tolerance nominal ⌀: e8
- No. of teeth Z: 3
Product details
Technical Data
| Series | Pro Uni | |
| Cutting edge ⌀ DC | 1 mm | |
| Coating | TiSiN | |
| Tool material | Solid carbide | |
| Standard | Manufacturer’s standard | |
| Type | N | |
| Tolerance nominal ⌀ | e8 | |
| No. of teeth Z | 3 | |
| Helix angle | 42 degrees | |
| Helix angle characteristic | unequal spacing | |
| Spacing of the cutters | unequal spacing | |
| Direction of infeed | horizontal, oblique and vertical | |
| Cutting width ae for milling operation | Full slot cutting depth 1×D; Full slot cutting depth 1×D | |
| Shank | DIN 6535 HB to h6 | |
| Through-coolant | no | |
| Machining strategy | HPC | |
| Flute length Lc | 2.5 mm | |
| Overhang length L1 incl. recess | 5 mm | |
| Recess ⌀ D1 | 0.9 mm | |
| Overall length L | 57 mm | |
| Shank ⌀ Ds | 6 mm | |
| Corner chamfer width at 45° | 0.06 mm | |
| Corner chamfer angle | 45 degrees | |
| Feed fz for slot milling in steel < 900 N/mm2 | 0.009 mm | |
| Feed fz for slot milling in stainless steel > 900 N/mm2 | 0.005 mm | |
| Feed fz for side milling in steel < 900 N/mm2 | 0.012 mm | |
| Feed fz for side milling in INOX > 900 N/mm2 | 0.009 mm | |
| Colour ring | green | |
| Type of product | End / face mill |
Identification & Classification
| Article number | 202432 1 | |
| EAN / GTIN | 4062406776954 | |
| Manufacturer number | 202432 1 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
