Product details
Technical Data
| Grinding medium code | A | |
| Specification | A30Q-BF | |
| Iron, sulphur and chlorine constituents | < 0.1 % | |
| Disc thickness | 6 mm | |
| Disc ⌀ | 125 mm | |
| Bore ⌀ | 22.23 mm | |
| recommended approach angle | 20-30 degrees | |
| optimised for material | INOX; Steel | |
| maximum circumferential speed | 80 m/s | |
| maximum speed | 12,200 min-1 | |
| Type of product | Rough grinding wheel |
Identification & Classification
| Article number | 560500 125X6 | |
| EAN / GTIN | 4045197443045 | |
| Manufacturer number | 560500 125X6 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Application Table
Description
Version:
- Grit, bonding, abrasive additives as well as reinforcement of the rough grinding discs are optimised for maximum metal removal rate and working life in their respective applications.
- Shapes: Rough grinding discs, depressed centres (shapes 27, 28, 29)
- Grinding angle 20° to 30°
- Application: On electric and pneumatic angle grinders with maximum 80 m/s circumferential speed for grinding welds, surfaces, and edges.

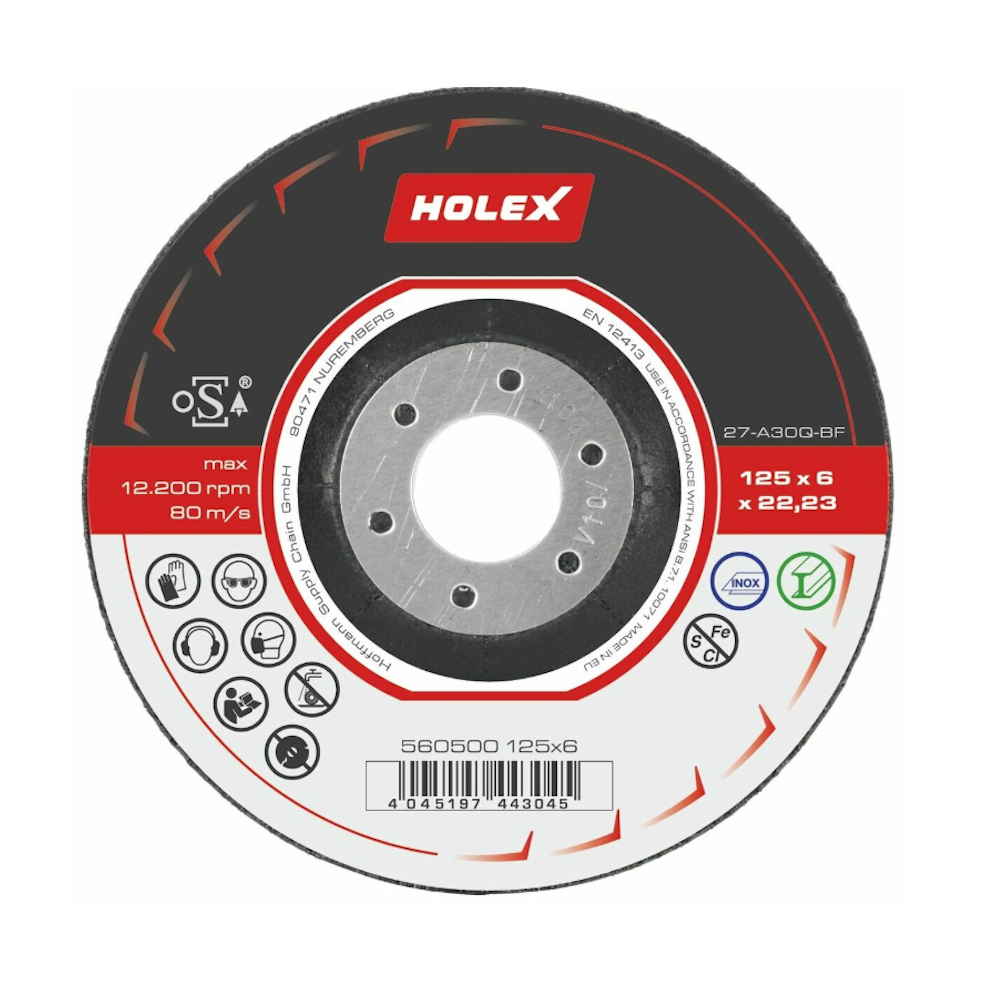

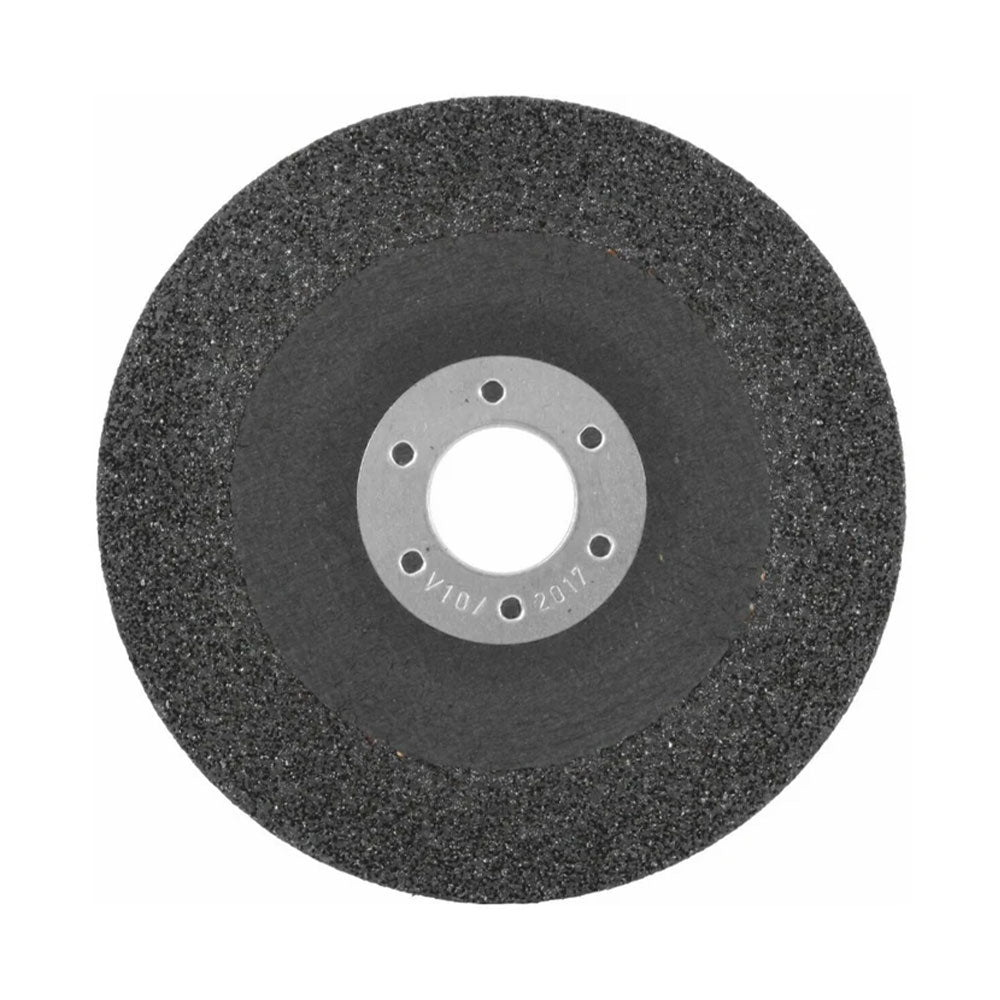

Rough grinding disc for steel and stainless steel with long working life and high metal removal rate.
Specification: A30Q-BF.
