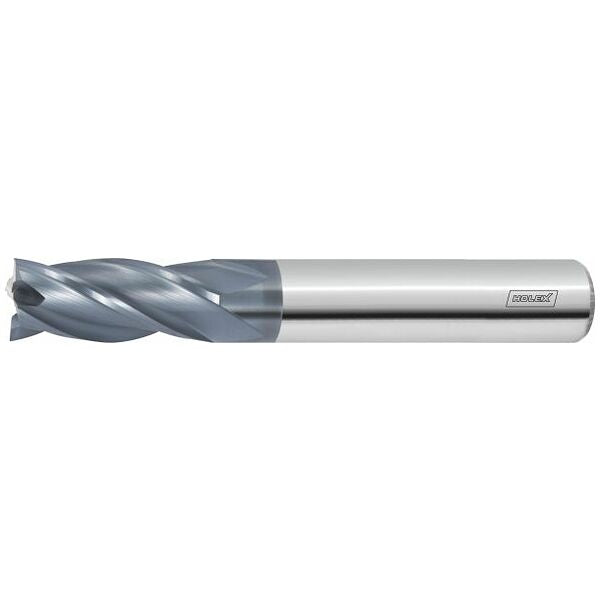

HOLEX Solid carbide milling cutter, TiAlN, ⌀ h10 - 202760
HOLEX Solid carbide milling cutter, TiAlN, ⌀ h10 - 202760
Article No.: 202760
Regular price
Rs. 1,655.36
Regular price
Sale price
Rs. 1,655.36
Unit price
per
Couldn't load pickup availability
- Tool material: Solid carbide
- Standard: Manufacturer’s standard
- Type: H
- Tolerance nominal ⌀: h10
- No. of teeth Z: 4
Product details
Technical Data
| Cutting edge ⌀ DC | 2 mm | |
| Coating | TiAlN | |
| Tool material | Solid carbide | |
| Standard | Manufacturer’s standard | |
| Type | H | |
| Tolerance nominal ⌀ | h10 | |
| No. of teeth Z | 4 | |
| Helix angle | 30 degrees | |
| Direction of infeed | horizontal, oblique and vertical | |
| Cutting width ae for milling operation | Full slot cutting depth 1×D; 0.3×D for side milling | |
| Shank | DIN 6535 HA to h6 | |
| Through-coolant | no | |
| Flute length Lc | 8 mm | |
| Overall length L | 32 mm | |
| Shank ⌀ Ds | 2 mm | |
| Shank form | HA | |
| Corner chamfer angle | 90 degrees | |
| Feed fz for slot milling in steel < 900 N/mm2 | 0.01 mm | |
| Feed fz for side milling in steel < 900 N/mm2 | 0.011 mm | |
| Colour ring | without | |
| Type of product | End / face mill |
Identification & Classification
| Article number | 202760 2 | |
| EAN / GTIN | 4045197117991 | |
| Manufacturer number | 202760 2 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
