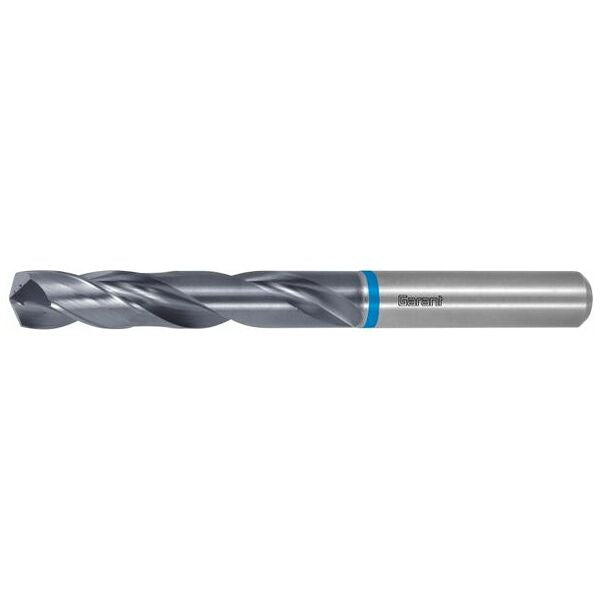

Solid carbide HPC drill plain shank DIN 6535 HA TiAlN - 122659
Solid carbide HPC drill plain shank DIN 6535 HA TiAlN - 122659
Article No.: 122659
Regular price
Rs. 10,718.15
Regular price
Sale price
Rs. 10,718.15
Unit price
per
Couldn't load pickup availability
Tool material: Solid carbide Standard: DIN 6537 L
Version: 6×D Tolerance nominal ⌀: m6 Number of cutting edges Z:
Product details
Technical Data
| Nominal ⌀ DC | 0.9 mm | |
| Coating | TiAlN | |
| Tool material | Solid carbide | |
| Standard | DIN 6537 L | |
| Version | 6×D | |
| Tolerance nominal ⌀ | m6 | |
| Number of cutting edges Z | 2 | |
| Point angle | 140 degrees | |
| recommended maximum drilling depth L2 | 6.7 mm | |
| Shank | DIN 6535 HA to h6 | |
| Through-coolant | yes, with 25 bar | |
| Machining strategy | HPC | |
| Semi-Standard | yes | |
| Flute length Lc | 8 mm | |
| Overall length L | 55 mm | |
| Shank ⌀ Ds | 4 mm | |
| Shank tolerance | h6 | |
| Feed f in stainless steel > 900 N/mm2 | 0.02 mm/rev. | |
| Colour ring | blue | |
| Type of product | Jobber drill |
Identification & Classification
| Article number | 122659 0,9 | |
| EAN / GTIN | 4045197582201 | |
| Manufacturer number | 122659 0,9 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
