Stationary machine vice

Stationary machine vice

Article No.: 362175 150M

Regular price Rs. 65,242.62
Regular price Sale price Rs. 65,242.62
Sale Sold out
Size
  • Type: L-keys for hexagonal socket screws
View full details

Product details

Technical Data

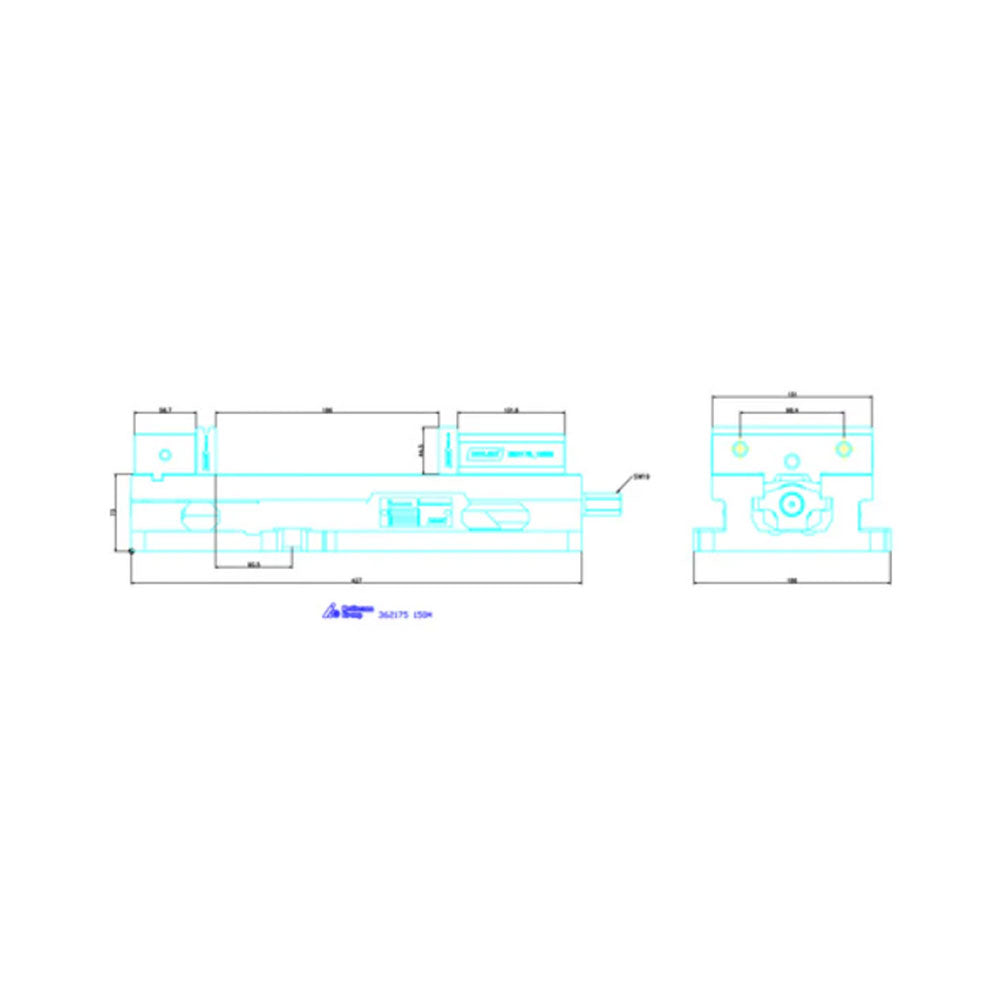

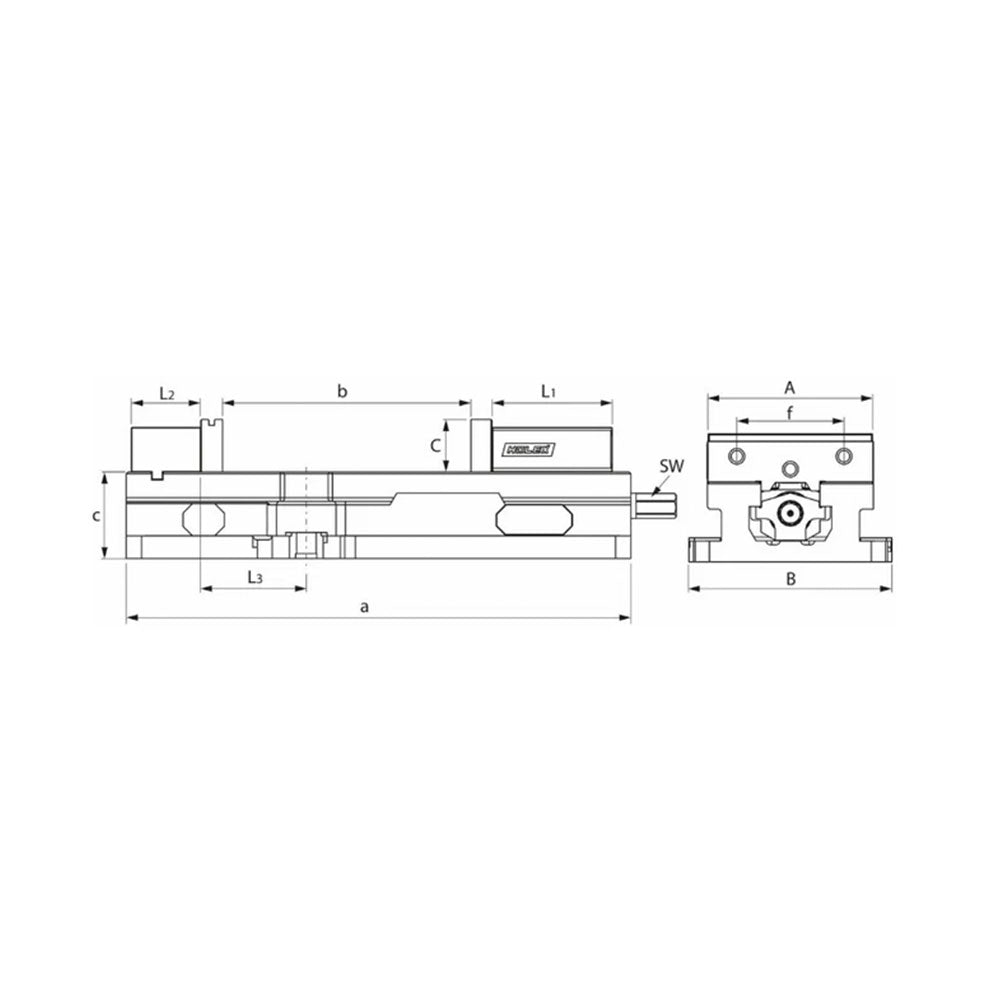

Type L-keys for hexagonal socket screws
Clamping range b 0 mm - 232 mm
Clamping force 36 kN
Base body height c +/- 0.012 73 mm
Jaw height C 44.5 mm
Jaw width A 151 mm
Base body length a 427 mm
Base body width B 186 mm
L1 101.6 mm
L2 58.7 mm
L3 90.5 mm
Hole centre spacing f 98.4 mm
Width across flats AF 19 mm
Colour code for suitable accessories NC-HOLEX
Quick adjustment no
Interchangeable jaws yes
Type of product Machine vice

Identification & Classification

Article number 362175 150M
EAN / GTIN 4062406384081
Manufacturer number 362175 150M
Manufacturer/responsible person Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com

Description

Version:

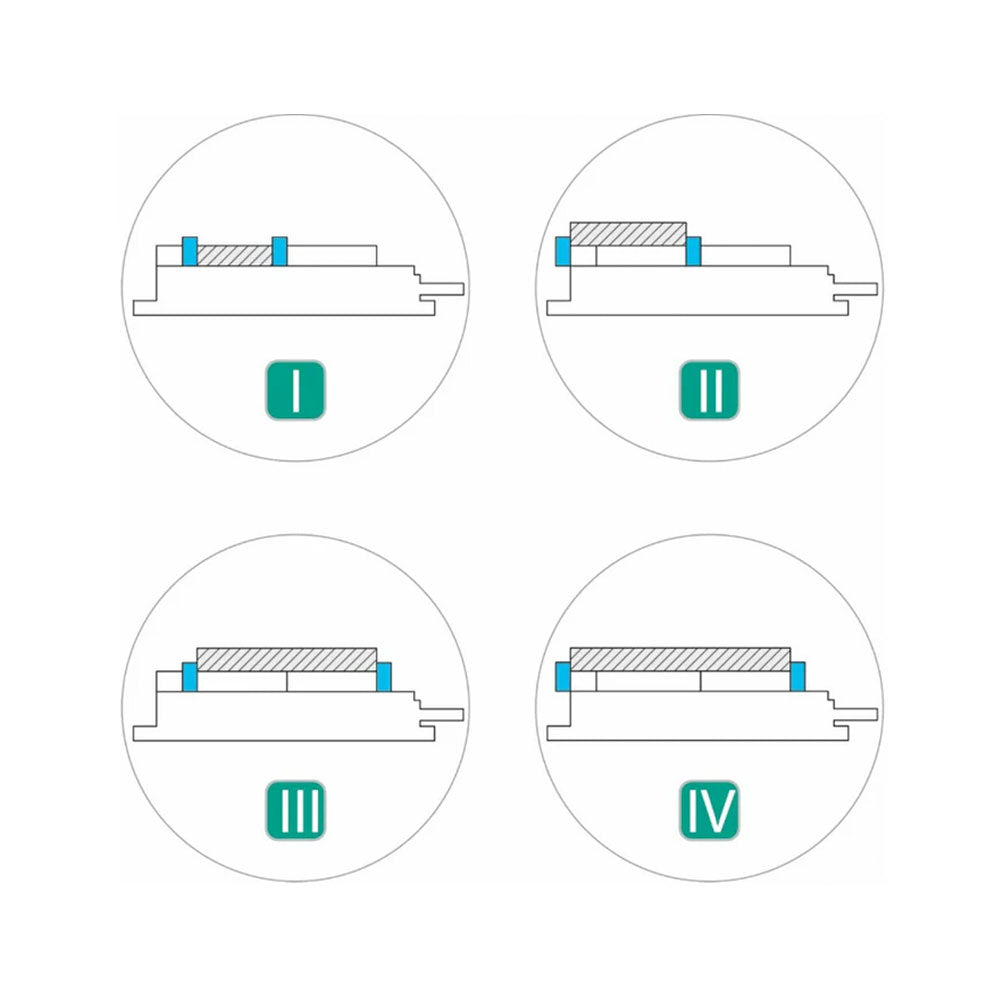

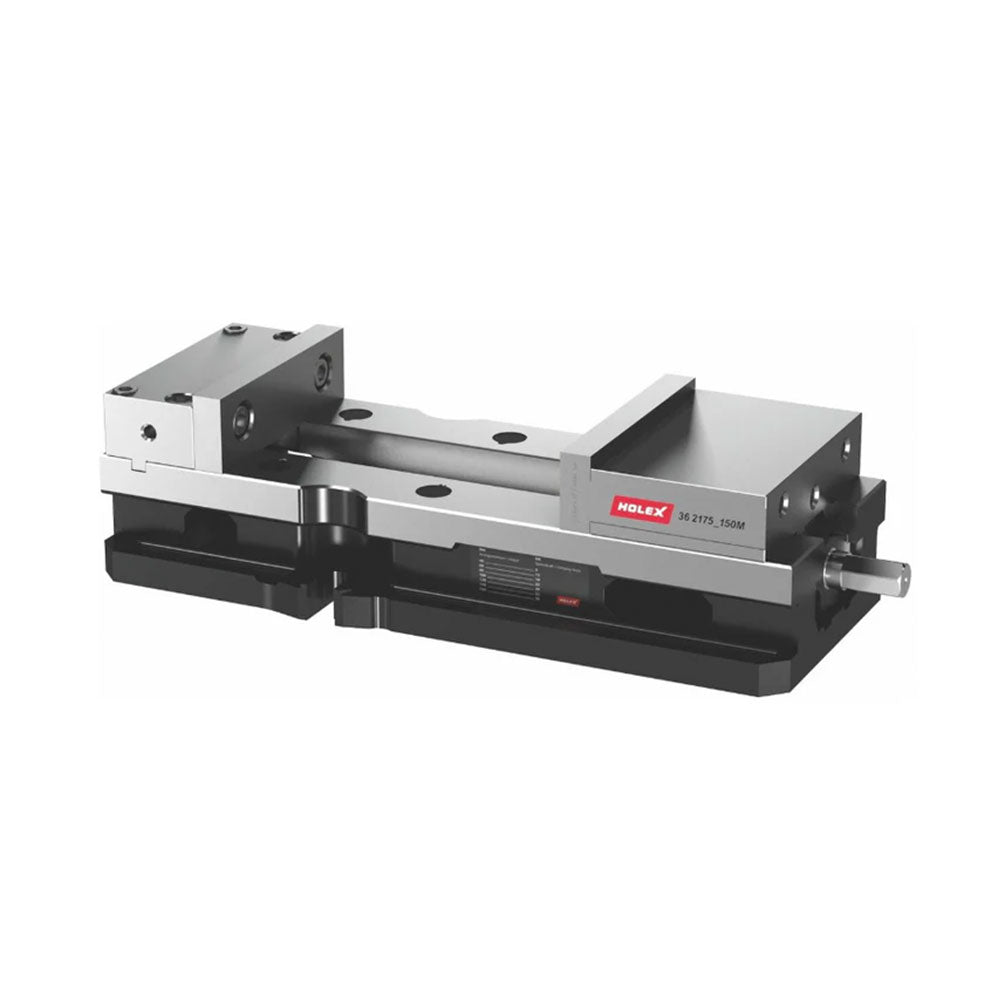

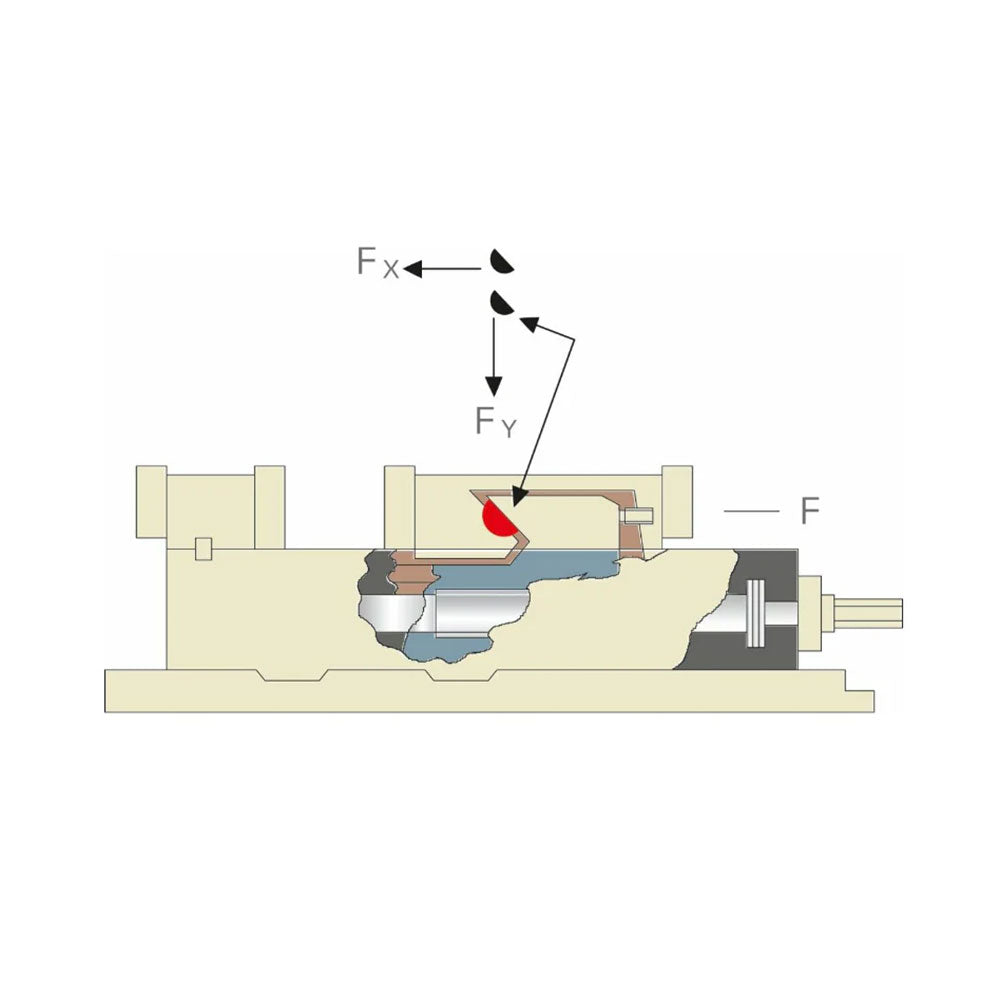

Sturdy base body of cast iron, slides and base area hardened. Cleaning holes in the base body for good flow of chips. Less component lift-off thanks to special transfer of force in the mobile jaw.

Application:

Versatile clamping unit for machining centres.

Supplied with:

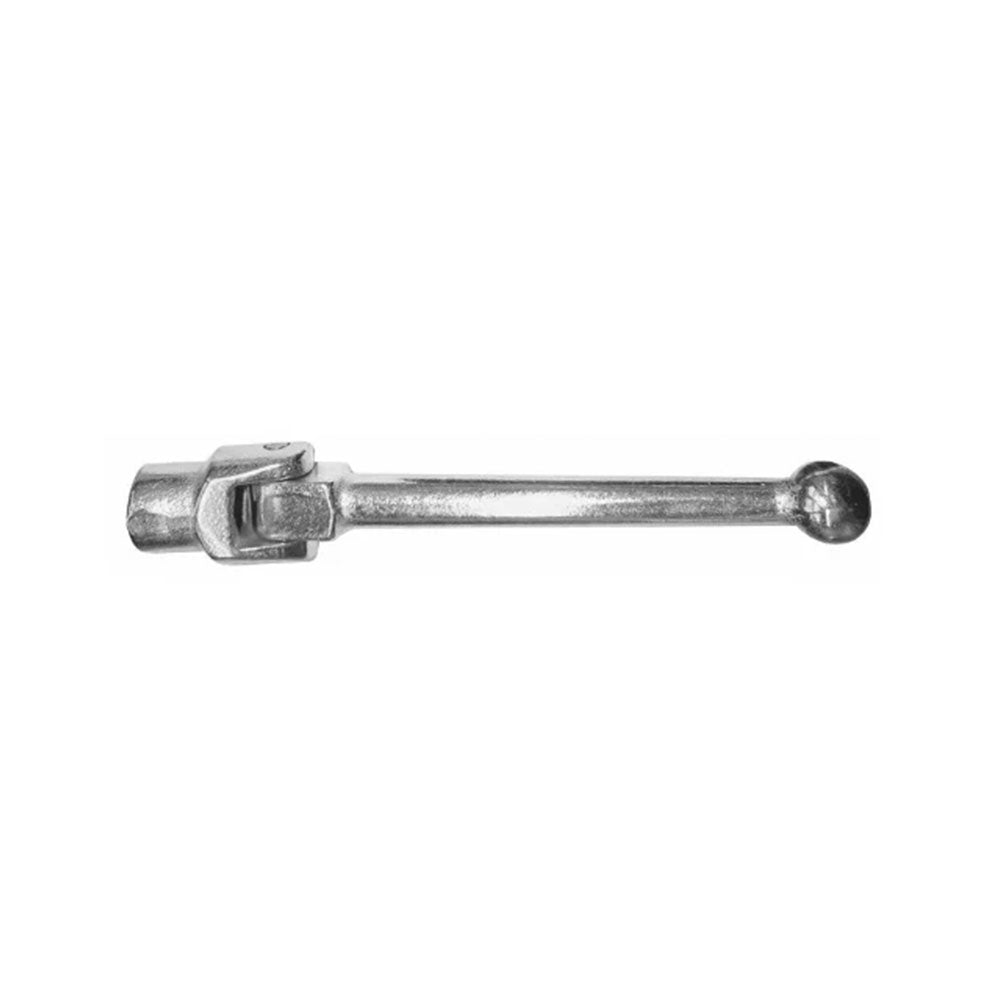

Incl. 2 pcs. top jaws, 2 pcs. front jaws No. 362181 and 1 pc. hand crank.

Optional extras:

Front jaws No. 362177  362183, crank No. 362190, spare-parts set No. 362199. Mounted with Tee bolts No. 375300 and aligned with tenons No. 375365.

Note:

Alignment dimensions not compatible with those of other manufacturers.
Metric version – screws and threads in metric version, drive hexagon = 19 mm AF.
