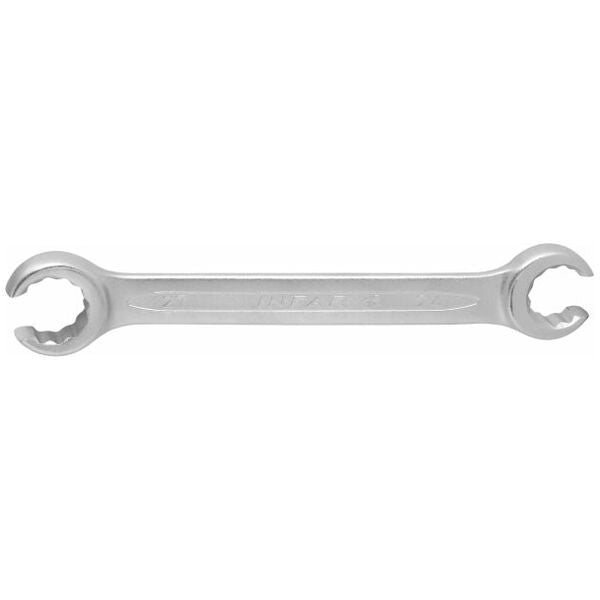

Double-ended open ring spanner, Width across flats: 8X10mm - 619705
Double-ended open ring spanner, Width across flats: 8X10mm - 619705
Article No.: 619705
Regular price
Rs. 1,058.75
Regular price
Sale price
Rs. 1,058.75
Unit price
per
Couldn't load pickup availability
Product details
Technical Data
| Width across flats 1 | 8 mm | |
| Width across flats 2 | 10 mm | |
| Standard | DIN 3118 / ISO 3318 | |
| Spanner length L | 139 mm | |
| maximum ring ⌀ D1 max | 17.8 mm | |
| maximum ring ⌀ D2 max | 19.3 mm | |
| maximum ring height h1 max | 6.5 mm | |
| maximum ring height h2 max | 7.5 mm | |
| Ring setting | 10 degrees | |
| Material | Chrome vanadium steel | |
| Surface | chrome-plated | |
| Width across flats | metric | |
| Type of product | Spanner |
Identification & Classification
| Article number | 619705 8X10 | |
| EAN / GTIN | 4045197673329 | |
| Manufacturer number | 619705 8X10 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
Drop forged; with reinforced ring, therefore exceptionally strong; jaw widths to exact tolerances. 10° angled heads.
With oval, easy grip shaft, very strong. Up to size 12×14 mm with hexagon ring - size 14×17 mm and above with bi-hexagon.
With oval, easy grip shaft, very strong. Up to size 12×14 mm with hexagon ring - size 14×17 mm and above with bi-hexagon.
Standard:
DIN 3118 / ISO 3318
Material:
Chrome vanadium steel, chrome-plated.
