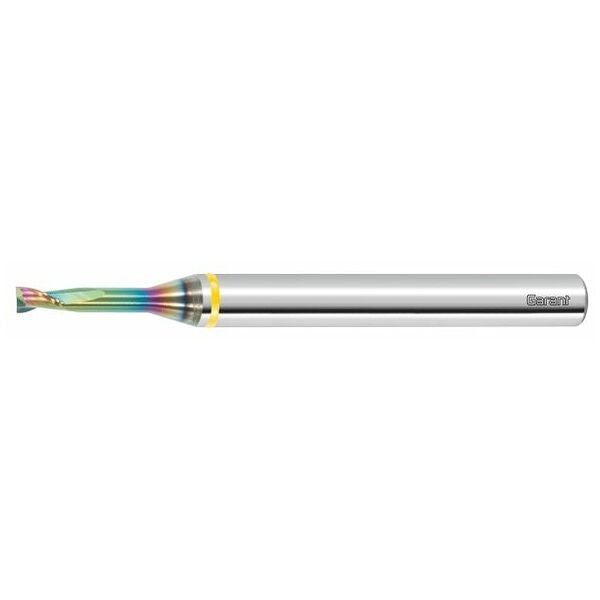

GARANT Solid carbide micro slot drill, DLC, ⌀ DC × L1 - 201140
GARANT Solid carbide micro slot drill, DLC, ⌀ DC × L1 - 201140
Article No.: 201140
Regular price
Rs. 10,497.50
Regular price
Sale price
Rs. 10,497.50
Unit price
per
Couldn't load pickup availability
Tool material: Solid carbide Standard: Manufacturer’s standard Type: W Tolerance nominal ⌀: 0 / −0.005 No. of teeth Z: 2
Product details
Technical Data
| Cutting edge ⌀ DC | 0.1 mm | |
| Coating | DLC | |
| Tool material | Solid carbide | |
| Standard | Manufacturer’s standard | |
| Type | W | |
| Tolerance nominal ⌀ | 0 / −0.005 | |
| No. of teeth Z | 2 | |
| Helix angle | 25 degrees | |
| Direction of infeed | horizontal, oblique and vertical | |
| Cutting width ae for milling operation | Full slot cutting depth 1×D; 0.5×D for side milling | |
| Shank | DIN 6535 HA to h5 | |
| Through-coolant | no | |
| Flute length Lc | 0.15 mm | |
| Overhang length L1 incl. recess | 0.3 mm | |
| Recess ⌀ D1 | 0.08 mm | |
| Overall length L | 45 mm | |
| Shank ⌀ Ds | 4 mm | |
| Corner chamfer angle | 90 degrees | |
| Feed fz for slot milling in cast aluminium | 0.008 mm | |
| Feed fz for side milling in cast aluminium | 0.012 mm | |
| Correction factor ap corr | 1 | |
| Colour ring | yellow | |
| Type of product | End / face mill |
Identification & Classification
| Article number | 201140 0,1X0,3 | |
| EAN / GTIN | 4045197912282 | |
| Manufacturer number | 201140 0,1X0,3 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
