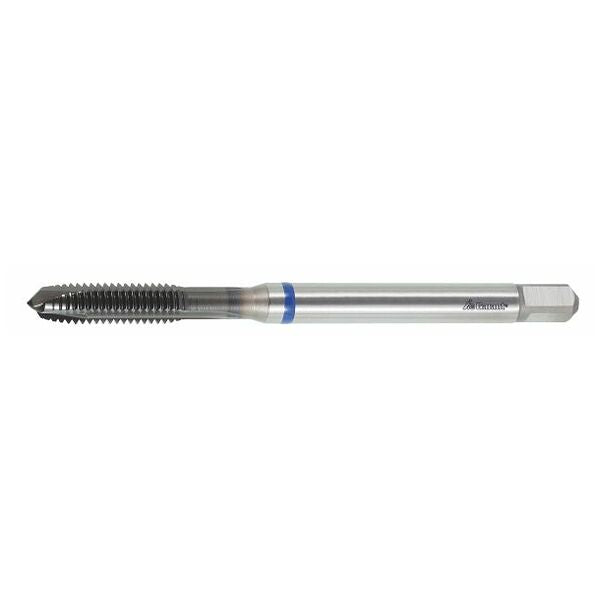

GARANT Master Tap INOX machine tap HSS-E-PM Form B 6GX, TiAlN, M: M2 - 132193
GARANT Master Tap INOX machine tap HSS-E-PM Form B 6GX, TiAlN, M: M2 - 132193
Article No.: 132193
Regular price
Rs. 5,016.26
Regular price
Sale price
Rs. 5,016.26
Unit price
per
Couldn't load pickup availability
- Thread type: M
- Flank angle: 60
- Tool material: HSS E PM
- Standard: DIN 371
- Thread standard: DIN 13
Thread type: M
Flank angle: 60
Tool material: HSS E PM
Standard: DIN 371
Thread standard: DIN 13
Product details
Technical Data
| Thread size | M2 | |
| Coating | TiAlN | |
| Thread type | M | |
| Flank angle | 60 degrees | |
| Tool material | HSS E PM | |
| Standard | DIN 371 | |
| Thread standard | DIN 13 | |
| Tolerance class | ISO 3X 6GX | |
| Taper lead form | B | |
| Shank | Plain shank with h9 | |
| Through-coolant | no | |
| Application for type of drilling | up to 3×D for through holes | |
| Cutting direction | right-hand | |
| Thread pitch | 0.4 mm | |
| Overall length L | 45 mm | |
| Shank ⌀ Ds | 2.8 mm | |
| Shank square □ | 2.1 mm | |
| Tapping hole ⌀ | 1.6 mm | |
| Thread ⌀ | 2 mm | |
| Type of threading tool | Machine tap for dynamic machining | |
| Number of clamping slots | 3 | |
| Colour ring | blue | |
| Series | Master Tap | |
| Number of cutting edges Z | 3 | |
| Thread depth | 6 mm | |
| Type of product | Tap |
Identification & Classification
| Article number | 132193 M2 | |
| EAN / GTIN | 4062406208073 | |
| Manufacturer number | 132193 M2 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
