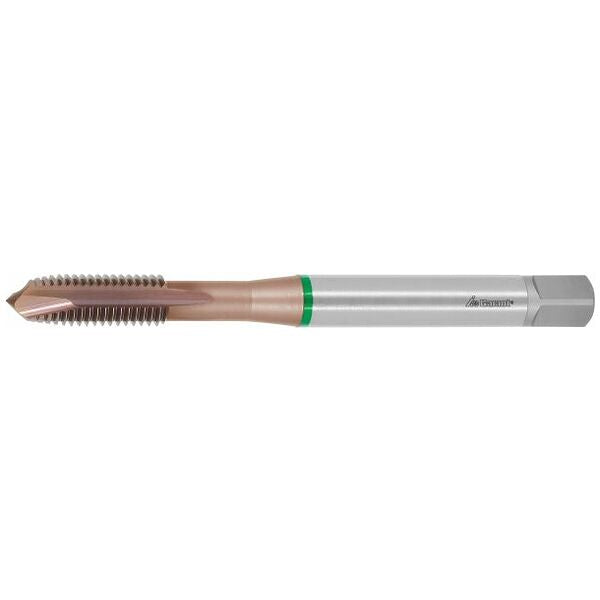

GARANT Master Tap machine tap Form B, AlTiX, M: M1 - 132721
GARANT Master Tap machine tap Form B, AlTiX, M: M1 - 132721
Article No.: 132721
Regular price
Rs. 4,991.64
Regular price
Sale price
Rs. 4,991.64
Unit price
per
Couldn't load pickup availability
Thread type: M Flank angle: 60 Tool material: HSS E PM Standard: DIN 371 Thread standard: DIN 13
Product details
Technical Data
| Thread size | M1 | |
| Coating | AlTiX | |
| Thread type | M | |
| Flank angle | 60 degrees | |
| Tool material | HSS E PM | |
| Standard | DIN 371 | |
| Thread standard | DIN 13 | |
| Tolerance class | ISO 1X 4HX | |
| Taper lead form | B | |
| Shank | Plain shank with h9 | |
| Through-coolant | no | |
| Application for type of drilling | up to 3×D for through holes | |
| Cutting direction | right-hand | |
| Thread pitch | 0.25 mm | |
| Overall length L | 40 mm | |
| Shank ⌀ Ds | 2.5 mm | |
| Shank square □ | 2.1 mm | |
| Tapping hole ⌀ | 0.75 mm | |
| Thread ⌀ | 1 mm | |
| Type of threading tool | Machine tap for dynamic machining | |
| Number of clamping slots | 2 | |
| Colour ring | green | |
| Series | Master Tap | |
| Number of cutting edges Z | 2 | |
| Thread depth | 3 mm | |
| Type of product | Tap |
Identification & Classification
| Article number | 132721 M1 | |
| EAN / GTIN | 4062406206970 | |
| Manufacturer number | 132721 M1 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
