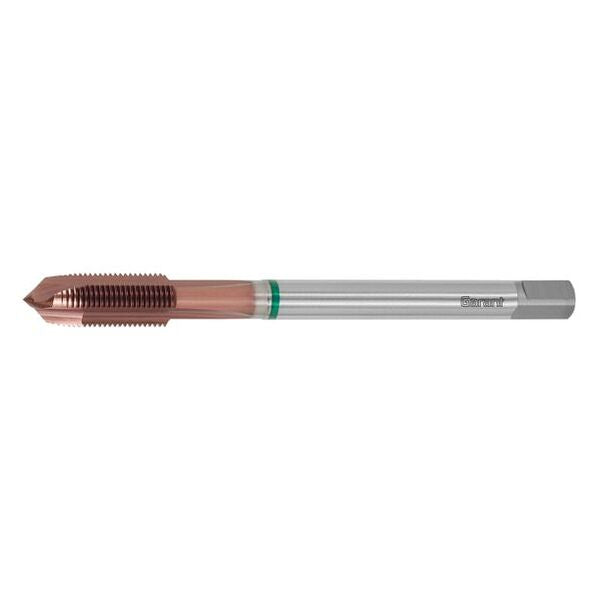

GARANT Master Tap machine tap HSS-E-PM 6HX, AlTiX - 132905
GARANT Master Tap machine tap HSS-E-PM 6HX, AlTiX - 132905
Article No.: 132905
Regular price
Rs. 4,721.74
Regular price
Sale price
Rs. 4,721.74
Unit price
per
Couldn't load pickup availability
Thread type: MF Flank angle: 60 Tool material: HSS E PM Standard: DIN 374 Thread standard: DIN 13
Product details
Technical Data
| Thread size | M2.5×0.35 | |
| Coating | AlTiX | |
| Thread type | MF | |
| Flank angle | 60 degrees | |
| Tool material | HSS E PM | |
| Standard | DIN 374 | |
| Thread standard | DIN 13 | |
| Tolerance class | ISO 2X 6HX | |
| Taper lead form | B | |
| Shank | Plain shank with h9 | |
| Through-coolant | no | |
| Application for type of drilling | up to 3×D for through holes | |
| Cutting direction | right-hand | |
| Thread pitch | 0.35 mm | |
| Overall length L | 50 mm | |
| Shank ⌀ Ds | 1.8 mm | |
| Tapping hole ⌀ | 2.15 mm | |
| Thread ⌀ | 2.5 mm | |
| Type of threading tool | Machine tap for dynamic machining | |
| Number of clamping slots | 3 | |
| Colour ring | green | |
| Series | Master Tap | |
| Number of cutting edges Z | 3 | |
| Thread depth | 7.5 mm | |
| Type of product | Tap |
Identification & Classification
| Article number | 132905 2,5X0,35 | |
| EAN / GTIN | 4062406208356 | |
| Manufacturer number | 132905 2,5X0,35 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
