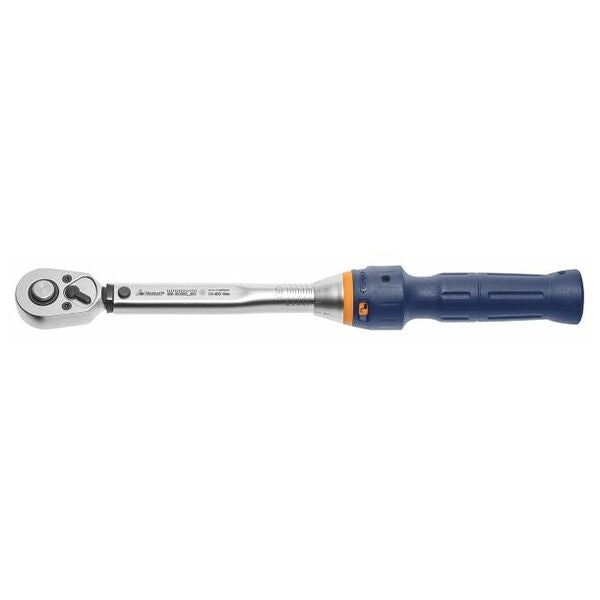

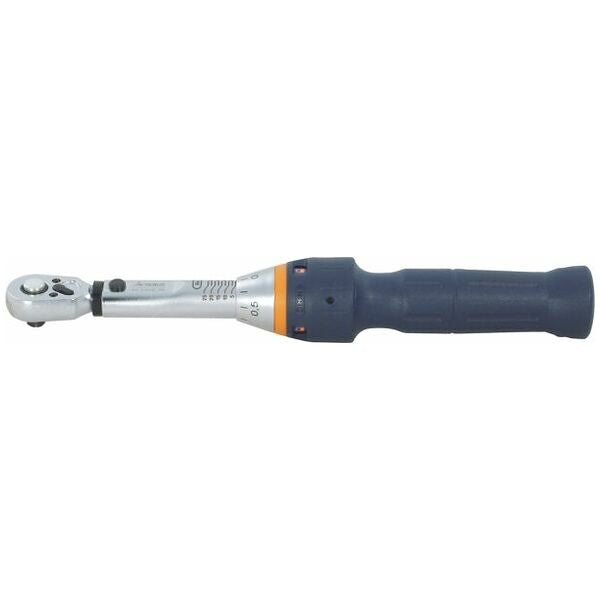

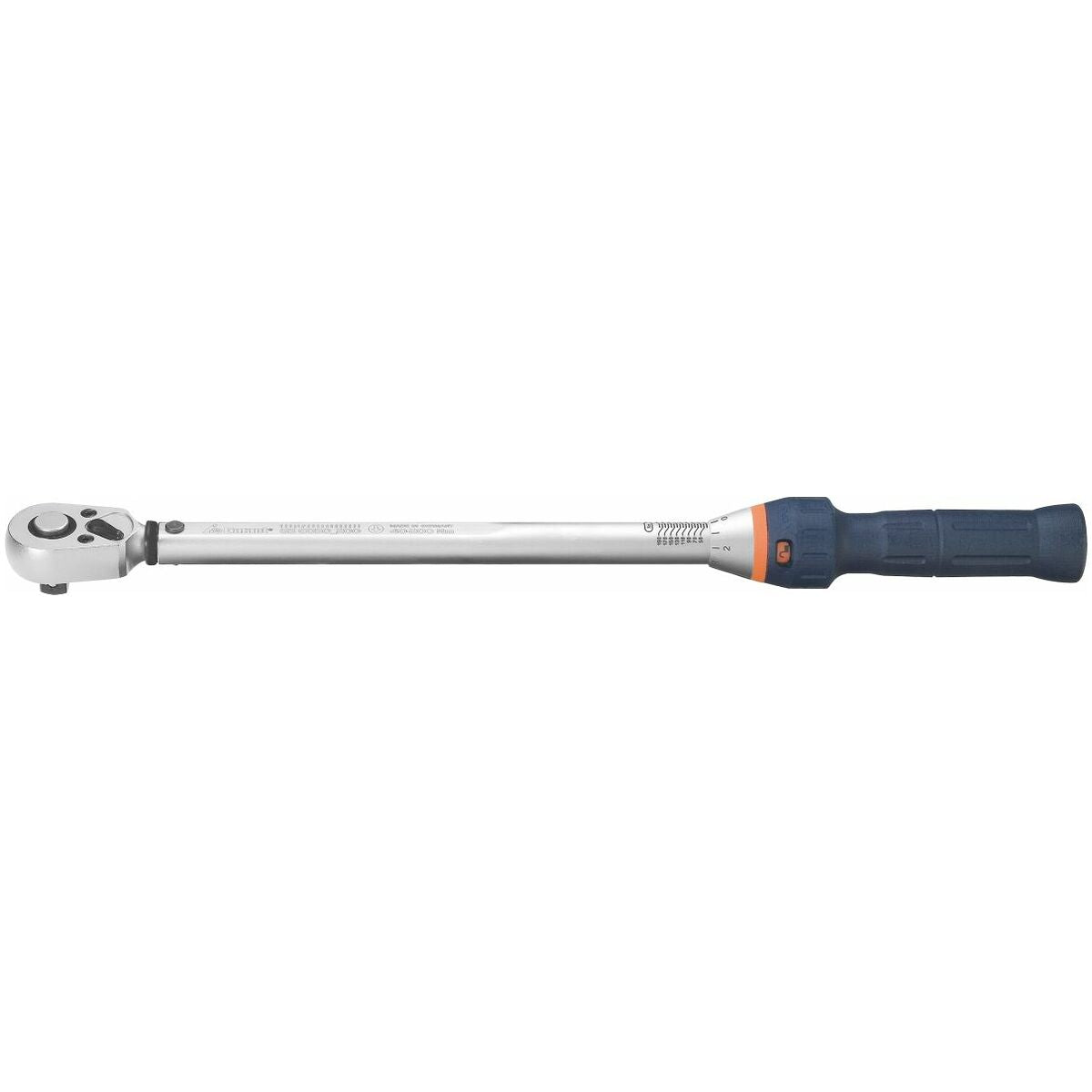

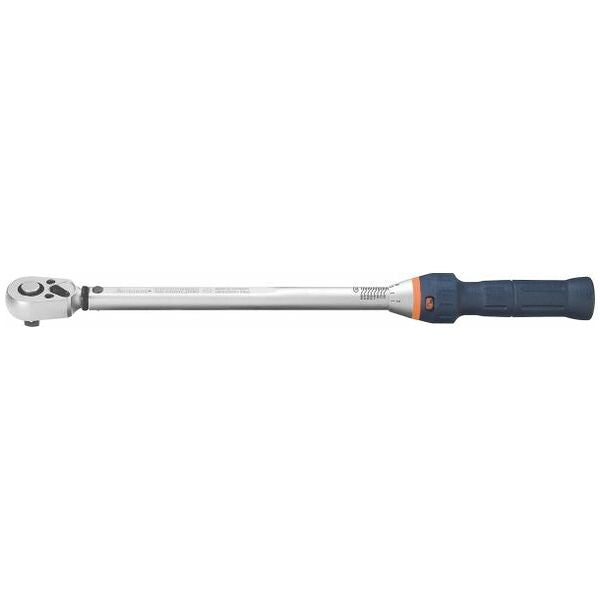

Torque wrench with reversible ratchet, maximum torque: 6N·m
Torque wrench with reversible ratchet, maximum torque: 6N·m
Article No.: 656050 6
Regular price
Rs. 29,801.14
Regular price
Sale price
Rs. 29,801.14
Unit price
per
Couldn't load pickup availability
- Direction of tightening: For right and left-hand tightening
- Torque measuring accuracy: ±4
- Test certificate: Manufacturer’s test certificate
- Square drive: 1/4
Product details
Technical Data
| maximum torque | 6 Nm | |
| Direction of tightening | For right and left-hand tightening | |
| Torque measuring accuracy | ±4 % | |
| Test certificate | Manufacturer’s test certificate | |
| Overall length L | 225 mm | |
| Torque range | 1 Nm - 6 Nm | |
| Scale graduation, 1 graduation = | 0.1 Nm | |
| Weight | 300 g | |
| Square drive | 1/4 in | |
| Display | analogue | |
| Release signalling | akustisk; haptisk | |
| Trigger principle | mechanical short-travel release | |
| Connection format | Push-through square drive (ratchet) | |
| Measurement technology | mechanical | |
| Data can be recorded | no | |

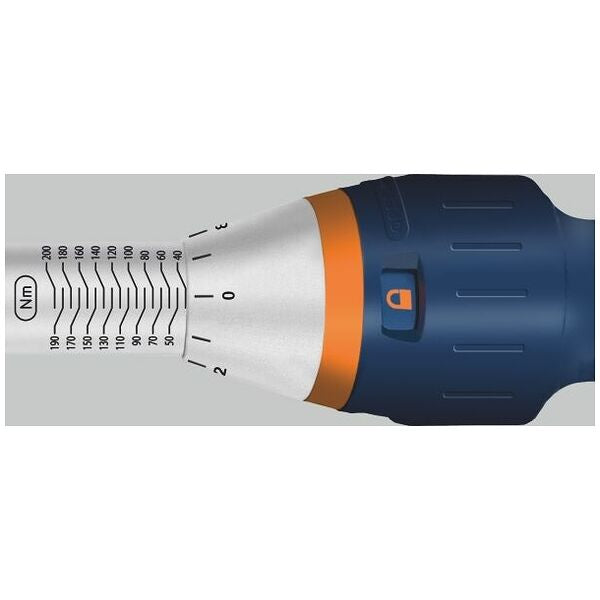

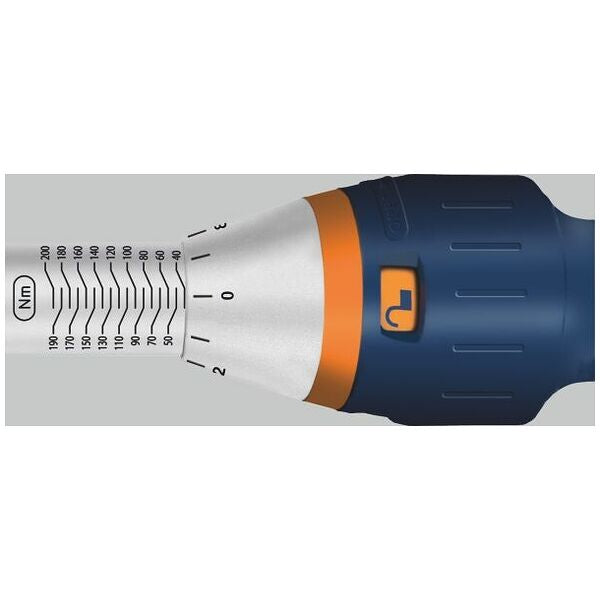

| Setting the trigger value | with adjustment scale | |
| Feedback | triggering | |
| Reversible reading | Nm | |
| Measurement process | Torque | |
| Adjustable trigger value | adjustable | |
| Standard | DIN EN ISO 6789 | |
| Lever length including factory calibration reference dimension [l3] | 155 mm | |
| Type of product | Torque Wrench |
Identification & Classification
| Article number | 656050 6 | |
| EAN / GTIN | 4045197570512 | |
| Manufacturer number | 656050 6 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:

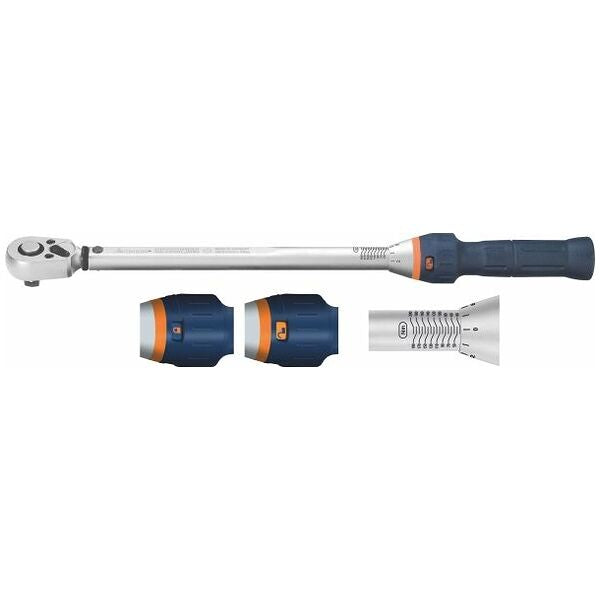

Handy and very compact single-arm torque wrench, adjustable by scale and self-triggering. Extremely high repeat accuracy, since high quality materials are used throughout. Wearing parts, such as compression springs, are specially pre-treated and sorted. Reversible ratchet for left-hand and right-hand tightening.
Acoustic and perceptible “click effect” ensures particularly easy use and accurate setting of the desired torque.
With built-in reversible ratchet (with ejector up to size 320) − for left-hand and right-hand tightening.
Units of measure: Nm
Acoustic and perceptible “click effect” ensures particularly easy use and accurate setting of the desired torque.
With built-in reversible ratchet (with ejector up to size 320) − for left-hand and right-hand tightening.
Units of measure: Nm
Function:
The wrench triggers giving a “signal” (clearly audible acoustic tone and noticeable vibration) and afterwards is immediately ready for use again.
Application:
For medium to larger batch productions.
Standard:
Tested to DIN EN ISO 6789.
Accuracy:
Of the displayed value only for right-hand tightening: ±4 %
Cutting data:
Legend for drawing and formula:
l1 = Lever length without plug-in head
l2 = Adjusted reference dimension on the torque wrench
l3 = Lever length including factory calibration reference dimension
l4 = Reference dimension of the plug-in head
L = Total length of the tool
T1 = Torque to be set
T2 = Specified torque
l1 = Lever length without plug-in head
l2 = Adjusted reference dimension on the torque wrench
l3 = Lever length including factory calibration reference dimension
l4 = Reference dimension of the plug-in head
L = Total length of the tool
T1 = Torque to be set
T2 = Specified torque
Note:
Calibration is only possible for right-hand tightening.
The guaranteed measuring accuracy of the torque is achieved only once the torque range has been calibrated to DIN EN ISO 6789.
The guaranteed measuring accuracy of the torque is achieved only once the torque range has been calibrated to DIN EN ISO 6789.
