GARANT Transport trolley with PU wheels, Usable width mm - 970011
GARANT Transport trolley with PU wheels, Usable width mm - 970011
Article No.: 970011
Regular price
Rs. 112,384.28
Regular price
Sale price
Rs. 112,384.28
Unit price
per
Couldn't load pickup availability
- Colour selection: RAL 9002, 7035, 7005, 7016, 6011, 5018, 5012, 5011, 5005, 3003
Product details
Technical Data
| Material thickness | 1.2 mm | |
| Colour selection | RAL 9002, 7035, 7005, 7016, 6011, 5018, 5012, 5011, 5005, 3003 | |
| Height | 925 mm | |
| Width | 500 mm | |
| Depth | 800 mm | |
| Footprint width | 500 mm | |
| Footprint depth | 800 mm | |
| Usable width | 452 mm | |
| Number of fixed wheels without parking brake | 2 | |
| Number of castors with parking brake | 2 | |
| Wheel ⌀ | 160 mm | |
| Number of carrier rails (1 level) | 3 | |
| Number of tool carriers (1 level) | 5 | |
| maximum load capacity | 400 kg | |
| Material of wheel | PU | |
| Type of product | CNC tool trolley |
Identification & Classification
| Article number | 970011 452/A | |
| EAN / GTIN | 4062406163136 | |
| Manufacturer number | 970011 452/A | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:

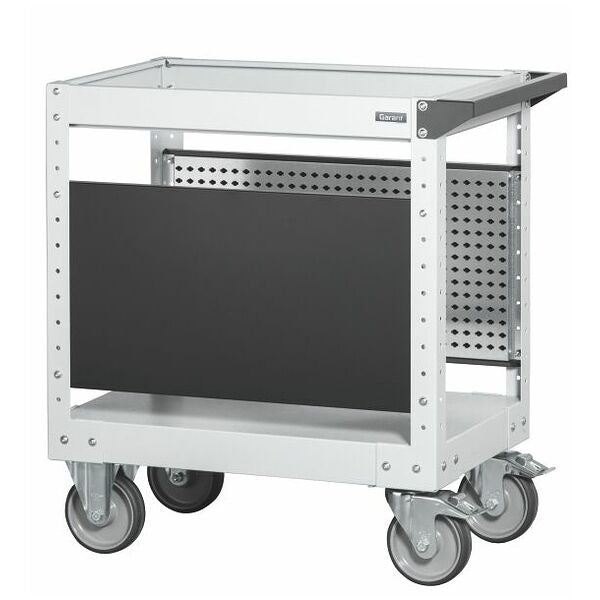

Sturdy chassis with 2 ball-bearing fixed wheels and 2 castors (with parking brake) (⌀ 160 mm). The stiles are positively fitted to the chassis and the push handle, and bolted to them. Side panels are perforated with a 25 mm grid to accept carrier rails and tool carriers.
Supplied with:
Tool trolley with 2 side panels, with push handle and PU wheels.
Colour:
Body RAL 7035 light grey, side walls RAL 7016 anthracite grey powder-coated.
Note:
Suitable carrier rails for GARANT Tool UNIT toolholders can be found under No. 970110, GARANT Tool UNIT under No. 971000. Suitable tool carriers can be found under No. 970125 or No. 970130.
Warning:
Intended use
Reasonably foreseeable misuse
- In combination with carrier rails and tool carriers (No. 970110; 970125; 970130) for storage of collets and tools with a shank.
- Perforated panel for mounting carrier rails and tool carriers.
- For work in indoor industrial environments. For use on dry solid floors.
Reasonably foreseeable misuse
- Do not exceed the maximum permissible load capacity.
- Do not sit or stand on the carrier rails or tool carriers.
- Do not carry people.
- Do not make any unauthorised changes or modifications to it.
- Not for use in areas where the floor is loose or unpaved.
- Do not subject it to blows, impacts or heavy loads.
