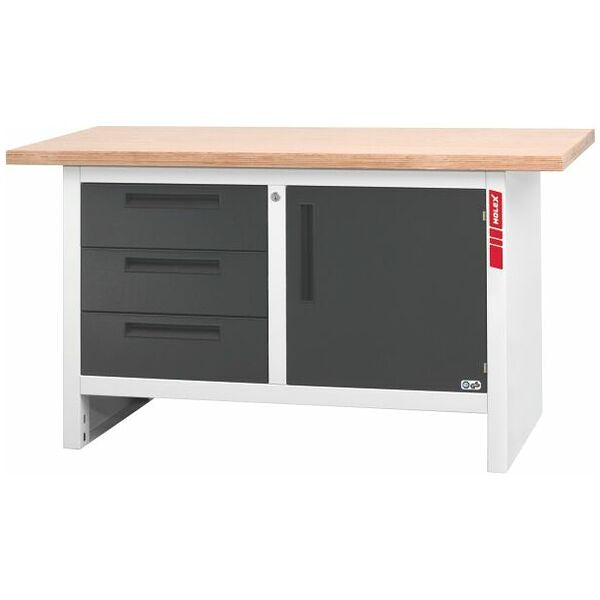

HOLEX Workbench with 3 drawers and 1 swing door - 929530
HOLEX Workbench with 3 drawers and 1 swing door - 929530
Article No.: 929530
Regular price
Rs. 123,393.15
Regular price
Sale price
Rs. 123,393.15
Unit price
per
Couldn't load pickup availability
- Workbench height: 850
- Drawer/pull-out shelf load capacity: 100
- Workbench/desk load capacity - maximum distributed load (on wood): 700
- Insert thickness: 40
- Drawer runner extension (partial/full extension): 90
Product details
Technical Data
| Material thickness | 1.5 mm | |
| Workbench height | 850 mm | |
| Drawer/pull-out shelf load capacity | 100 kg | |
| Workbench/desk load capacity - maximum distributed load (on wood) | 700 kg | |
| Insert thickness | 40 mm | |
| Drawer runner extension (partial/full extension) | 90 % | |
| Door opening angle | 180 degrees | |
| Height adjustment | 20 mm | |
| Cylinder lock | modular barrel | |
| Colour selection | RAL 7035, RAL 7016, RAL 5005 | |
| Height | 850 mm | |
| Worktop length | 1,500 mm | |
| Worktop depth | 700 mm | |
| Worktop thickness | 40 mm | |
| Support cabinet width | 1,200 mm | |
| Support cabinet depth | 630 mm | |
| Drawer usable width | 490 mm | |
| Drawer usable depth | 520 mm | |
| Door height (right) | 360 mm | |
| Number of drawers | 4 | |
| Material of worktop | Beech marine ply | |
| Surface worktop | clear varnished | |
| Workbench can be locked centrally | yes | |
| Workbench for installation in a row | no – the worktop projection is too large | |
| Weight | 92 kg | |
| Type of product | Workbench |
Identification & Classification
| Article number | 929510 1500 | |
| EAN / GTIN | 4062406117771 | |
| Manufacturer number | 929510 1500 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
- Worktop 40 mm thick, non-warping beech marine ply, finished with clear UV varnish.
- Frame - welded sheet metal.
- Drawers of sheet metal with low-friction rollers of Delrin.
- Sheet metal doors with plastic grips, opening angle 180° and self-closing hinges.
- Central cylinder lock with 2 keys.
Fitted with:
Drawer front height (left): 180; 180; 180
Drawer front height (right) mm: 180
Door height (right): 360
Drawer front height (right) mm: 180
Door height (right): 360
Optional extras:
For suitable storage shelf see No. 929581.
Colour:
Body RAL 7035 light grey, fronts anthracite RAL 7016, powder-coated, internal shelves and storage shelves on top galvanized.
Note:
Other colours available for fronts: RAL 7035 light grey, RAL 5005 signal blue. No special paint finishes available.
Warning:
Intended use
Reasonably foreseeable misuse
- Use the workbench only when in good technical condition. If any faults occur which may affect safety, rectify them without delay.
- Only mount components in the holes provided for this purpose.
- Use exclusively approved Hoffmann Group accessories for modification or rebuilding.
- For work in indoor industrial environments. For use on dry solid floors.
- Operate only in a dry environment.
Reasonably foreseeable misuse
- Do not place or position on the workbench. Do not carry people.
- Not for use in areas where the floor slopes upwards or downwards.
- Do not use in explosion hazard areas.
- No do expose it to water, precipitation or contamination.
- Not for use in areas where the floor is loose or unpaved.
- Do not overload the workbench, worktop, drawers or storage shelves.
- Do not make any unauthorised modifications.
